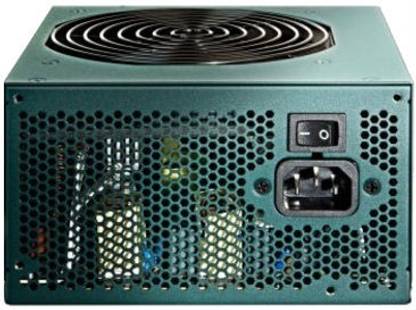

    Antec EA- 650 Watts PSU

    Antec EA- 650 Watts PSU

    Price: Not Available
    Currently Unavailable
    Highlights
    • Power Output: 650 W
    • 2 12V Power Rails
    • ATX 12V Version: 2.3
    • Number of Fans: 1
    Specifications
    In The Box
    Sales Package
    • SMPS Unit, Cables, User Guide
    Warranty
    Domestic Term
    • 3 Years
    Maximum Current
    Current at DC Output of +3.3 V
    • 24 A
    Current at DC Output of +5 V
    • 24 A
    Current at DC Output of +V1 V
    • 38 A
    Current at DC Output of +V2 V
    • 38 A
    Current at DC Output of -12 V
    • 0.5 A
    Current at DC Output of +5 V sb
    • 2.5 A
    General
    Brand
    • Antec
    Series
    • EarthWatts Series
    Part Number
    • EA 650
    Power Output
    • 650 W
    ATX & EPS Version
    • ATX 12V v2.3 and EPS 12V v2.91
    Power Rail
    • 2 x 12V Power Rails
    SLI Certification
    • Yes
    CrossFire Certification
    • Yes
    Model Name
    • EA-650
    Key Features
    • 650 W Power Output, ATX 12V v2.3 and EPS 12V v2.91, 2 x 12V Power Rail, 100 - 240 Vac Input Voltage, 100000 hours MTBF, SLI and CrossFire Certification, 88 % Efficiency
    Connectivity
    Motherboard
    • 1 Motherboard Connector with 20 + 4 pin
    CPU
    • 1 CPU Connector with 4 + 4 pin
    PCI-e
    • 2 PCI-e 6+2 pin
    SATA
    • 7 SATA Cables
    Floppy
    • 1 Floppy Connector with 4 pins
    Peripheral
    • 5 Peripheral Connector with 4 pins
    Dimensions
    Width x Height x Depth
    • 150 x 86 x 152 mm
    Weight
    • 2.5 kg
    Features
    Fan Type
    • 1 x 120 mm Dual Ball Bearing, Low Noise Cooling
    Temperature
    • 10 to 50 °C (Operating Temperature)
    Protection
    • Over Current Protection (OCP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP)
    Safety Standards
    • CUL, FCC, TUV, CE, CB, C-Tick, CCC, BSMI, Gost-R, KCC
    Certification
    • 80 Plus Bronze
    Power
    Power Factor Correction (PFC)
    • Active PFC with Value of 0.99
    Input Voltage 1
    • 100 - 240 V
    Input Current
    • 4.5 -9 A
    Input Frequency
    • 47 - 63 Hz
    Efficiency
    • 88 %
    Mean time between failures (MTBF)
    • 1,00,000 hr
    Ratings & Reviews
    4.5
    ★
    2 Ratings &
    1 Reviews
    • 5★
    • 4★
    • 3★
    • 2★
    • 1★
    • 1
    • 1
    • 0
    • 0
    • 0
    5

    Good product but slight north of expensive!

    Antec, Seasonic are the zenith of highly efficient & reliable PSU's. So is the Corsair TX series. Go for a good and consistent PSU if you plan on building a gaming rig. Remember, its not the overall Wattage that counts, its how much amperage you get on the 12V rail that matters! Most present day graphic cards require atleast 40A on the 12V rail!
