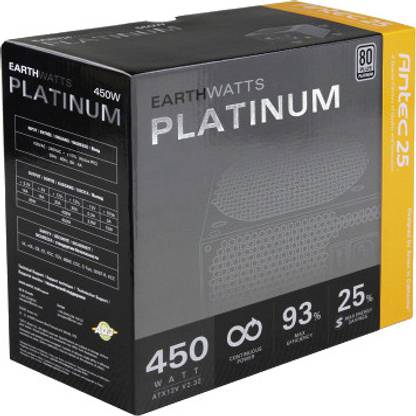

Antec EA-Platinum 450 Watts PSU

Price: Not Available

Currently Unavailable

Warranty

Parts and Labor are Warranted for Three (3) Years From the Date of Purchase. Replacement Products will be Warranted for the Remainder of the Warranty Period or Thirty Days, Whichever is Longer

Highlights

Power Output: 450 W
2 12V Power Rails
ATX 12V Version: 2.32
Number of Fans: 1

Specifications

In The Box

Sales Package

SMPS Unit, Cables, User Guide

Other Features

Additional Features

Reduce your Electricity bill by up to 25%

Warranty

Domestic Term	3 Years
Service Type	Carry In
Covered in Warranty	Manufacturing Defects
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Physical Damage
Warranty Type	Limited
Warranty Summary	Parts and Labor are Warranted for Three (3) Years From the Date of Purchase. Replacement Products will be Warranted for the Remainder of the Warranty Period or Thirty Days, Whichever is Longer

Maximum Current

Current at DC Output of +3.3 V	16 A
Current at DC Output of +5 V	16 A
Current at DC Output of +V1 V	30 A
Current at DC Output of +V2 V	30 A
Current at DC Output of -12 V	0.3 A
Current at DC Output of +5 V sb	3 A

General

Brand	Antec
Series	EarthWatts Series
Part Number	0-761345-27450-0
Power Output	450 W
ATX & EPS Version	ATX 12V v2.32
Power Rail	2 x 12V Power Rails
Model Name	EA-Platinum 450
Key Features	450 W Power Output, ATX 12V v2.32, 2 x 12V Power Rail, 100 - 240 Vac Input, 93 % Efficiency, OCP / OVP / UVP / SCP / OPP / SIP / NLO / BOP, CB / CUL / TUV / GOST-R / BSMI / CE / FCC / C-tick / CCC / UL / KCC

Connectivity

Motherboard	1 Motherboard Connector with 20 + 4 pin
CPU	1 CPU Connector with 4 + 4 pin
PCI-e	2 PCI-e 6+2 pin
SATA	5 SATA Cables
Floppy	1 Floppy Connector with 4 pins

Dimensions

Width x Height x Depth	150 x 86 x 140 mm
Weight	1.8 kg

Features

Fan Type	1 x 120 mm Double Ball Bearing
Temperature	0 to 50 °C (Operating Temperature)
Protection	Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Surge and Inrush Protecion (SIP), No Load Operation (NLO), Brown-Out Protection (BOP)
Safety Standards	UL, CUL, CB, CE, FCC, TUV, BSMI, CCC, C-Tick, Gost-R, KCC
Certification	80 Plus Platinum

Power

Input Voltage 1	100 - 240 V
Input Current	4 -8 A
Input Frequency	50 - 60 Hz
Efficiency	93 %
