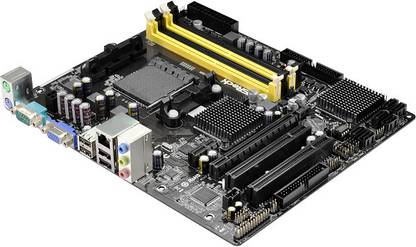

ASRock 960GC-GS FX Motherboard

Price: Not Available

Currently Unavailable

Warranty

3 Years ASRock India Warranty and Free Transit Insurance

Highlights

AMD 760G
Data Rate DDR3
Maximum RAM Capacity 8
Form Factor: Micro-ATX

Specifications

In The Box

Sales Package

Motherboard, Quick Installation Guide, Support CD, 1 x I/O Panel Shield

General

Brand	ASRock
Model ID	960GC-GS FX

Essentials

Form Factor	Micro-ATX
Socket Type	AM3
Compatible Processors	AMD Athlon II X4 Processor, AMD Sempron Processor, AM3 Socket: AMD Phenom II X6 Processor, AMD Phenom II X3 Processor, AMD Phenom Quad Core Processor, AMD Athlon II X2 Processor, AMD Athlon X2 Processor, AM2 Socket: AMD Athlon 64 X2 Processor, AMD Sempron Processor, AM3+ Socket: AMD Opteron Processor, AMD Athlon II Processor, AMD FX Processor, AMD Phenom II X4 Processor, AM2+ Socket: AMD Phenom II X3 Processor, AMD Phenom II X2 Processor, AMD Athlon 64 X2 Processor, AMD Sempron Dual Core Processor, AMD Athlon II X3 Processor, AMD Athlon X2 Processor
FSB	2600 MHz
Chipset	AMD 760G, AMD SB710
Chipset Manufacturer	AMD

Memory

Number of Memory Slots	2 Slots
Memory Configuration	8 DDR3 Dual Channel DIMM
Memory Frequency	1333 MHz, 1600(OC) MHz, 1066 MHz, 1866(OC) MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

RAID Configurations

0, 1, 10, JBOD

Graphics

Integrated Graphics card	Yes
External Graphics Card Support	Yes

Audio

Audio Codec	Realtek ALC662
Audio Channels	5.1
Audio Features	HD Audio

Connectivity

Ethernet Controller	Realtek RTL8111G
Ethernet Features	PCIE x1 Gigabit LAN 10/100/1000 Mb/s, Supports Wake-On-LAN, Supports LAN Cable Detection, Supports Energy Efficient Ethernet 802.3az, Supports PXE

Expansion Slots

PCI Slots	2
PCIe x1 Slots, Generation	1, 2
PCIe x16 Slots, Generation	2, 1

Internal I/o Headers

SATA 3 Gb/s Headers	6
USB 2.0 Headers	3
ATX Power Connectors	1 (24 Pin ATX Power Connectors)
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Power Fan Connector (3-pin), 1 x CD In Header, 1 x ATA133 IDE Connector (Supports 2 x IDE Devices), 1 x Floppy Connector, 1 x 4-pin 12V Power Connector, 1 x IR Header, 1 x Chassis Intrusion Header, 1 x SPDIF Out Connector

Back Panel Ports

USB 2.0 Ports, Controller	4
VGA/D Sub Ports	1
Audio I/O Channels	3
RJ-45 Ethernet Jacks	1
PS/2	2
Other Ports	1 x Serial Port (COM1), HD Audio Jack: Line-in/Front Speaker/Microphone

General Features

Overclocking	Untied Overclocking Technology
Hardware Monitoring	CPU/Chassis Temperature Sensing, CPU/Chassis/Power Fan Tachometer, CPU Quiet Fan, CPU/Chassis/Power Fan Multi-speed Control, CASE OPEN Detection, Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Support CDs	Drivers, Utilities
Bundled Software	Anti-virus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar
OS Support	7, 8, XP Media Center, Vista, Windows: XP
BIOS	16MB AMI Legal BIOS, Supports Plug and Play, ACPI 1.1 Compliance Wake Up Events, Supports Jumperfree, SMBIOS 2.3.1 Support, CPU, VCCM, NB Voltage Multi-adjustment
Features	CE, ErP/EuP Ready, Integrated AMD Radeon 3000 Graphics, Supports 8 Core CPU, Supports D-Sub with Maximum Resolution Upto 2048 x 1536 at 60Hz, Certifications: FCC, WHQL
Advanced Technologies	Supports AMD's Cool n Quiet Technology, Supports Hyper-Transport 3.0 (HT 3.0) Technology, Supports ASRock Patented Technology, Supports ASRocks X-Boost Technology, Supports XFast 555 Technology, Supports The App Charger Technology, Supports TrueTheater Technology
Advanced Features	Supports AMD OverDrive with ACC Feature (Advanced Clock Calibration), DX10 class iGPU, Pixel Shader 4.0, ASRock OC Tuner, ASRock Intelligent Energy Saver, ASRock Instant Boot, ASRock Instant Flash, ASRock OC DNA, ASRock APP Charger, ASRock XFast USB, ASRock XFast LAN, ASRock XFast RAM, ASRock X-Boost, ASRock AM2 Boost, Hybrid Booster: CPU Frequency Stepless Control, ASRock U-COP, Boot Failure Guard (B.F.G.)

Limitations

Due to The Operating System Limitation the Actual Memory Size May be Less than 4GB for The Reservation for System Usage Under Windows 32-bit OS, For Windows 64-bit OS with 64-bit CPU, There is No Such Limitation, ErP/EuP Ready Power Supply is Required

Warranty

Domestic Term	3 Years ASRock India Warranty and Free Transit Insurance.
Warranty Summary	3 Years ASRock India Warranty and Free Transit Insurance
Warranty Service Type	Carry In

Ratings & Reviews

4.4

★

28 Ratings &

11 Reviews

5★
4★
3★
2★
1★

Perfect Solution For Backward Technology & Future Technology AWSOME ASROCK ROCKS

The Motherboard - I bought this mobo yesterday it gives nice performance. I having a DDR2 memory & AMD Sempron145 AM3 CPU. Few months ago I'm searching DDR2 memory Supported Mobo's but DDR2 Memory type was out-dated only (DDR3 Memory Still In The Market).No more mobo's in the market for DDR2 @ today's date for the AMD User's. But Asrock having A Rocking & Satisfying Solution for DDR2 AMD User's.

Asrock Made a fantastic solution to Design this Combo AMD Motherboard, which is DDR2 & DDR3 Memor...

Aniket Pore

Certified Buyer, Mumbai

Feb, 2014

Permalink

Report Abuse

Awesome Product!

This Motherboard is the best one for AM2/AM2+/AM3/AM3+ Processors. This motherboard support both DDR2 and DDR3 RAM's depending on processor. Supports Windows 8 without any problem. This motherboard is better than ASRock N68C-GS FX Motherboard which also has almost same specification. I recommend ASRock 960GC-GS FX Motherboard for upgraders.

Muneer Muhammed

Nov, 2013

Permalink

Report Abuse

great Mboard for upgraders

This Motherboard is the best one for AM2/AM2 /AM3/AM3 Processors. This motherboard support both DDR2 and DDR3 RAM's depending on processor. Supports Windows 8 without any problem. This motherboard is better than ASRock N68C-GS FX Motherboard which also has almost same specification. I recommend ASRock 960GC-GS FX Motherboard for upgraders.

SAYANTAN MANDAL

Certified Buyer, Howrah

Dec, 2013

Permalink

Report Abuse

Best motherboard for Older AM2 CPUs with most of the CPUs between AM2 - AM3+ supported

This motherboard is amazing, it supports a wide range of CPUs back from the Athlon 64 X2 to the FX processors. The CPU support list is so long, it supports almost 250 processors. Don't believe me check out the list yourself on Asrock website. This is a very good motherboard replacement if you are planning to upgrade later to an FX processor.
This motherboard does support 8 core processors, however it has a maximum TDP support of 95 watts. That means anything above 8120 is not supported, in fa...

Abhishek P

Certified Buyer, Bangalore

Jul, 2014

Permalink

Report Abuse

Decent Motherboard!

i got this motherboard from flipkart - good packaging and fast delivery!! hats off flipkart.

I had an old processor AMD 64 x2 along with 4 gb ddr2 Ram (2Gx2), so i choose this board.

worked perfectly without any issues with a decent performance.

checked for heating and found it to run stable under 58 to 60 degrees on full day.:)

Nice buy!

Suraj

Certified Buyer, Mumbai

Apr, 2014

Permalink

Report Abuse

Very Bad Product!

Bought this motherboard from flipkart and board is dead!
No beep Notification, no error Notification!
Not responding!

Vaibhav Dogra

Certified Buyer, Haridwar

May, 2014

Permalink

Report Abuse

great mobo for old processors

i am using this mobo for more than 6 months, there is no problem with this mobo
works absolutely fine with athlon processor (7750be)

Gowtham Raj

Certified Buyer, Chennai

Sep, 2014

Permalink

Report Abuse

Best product

This is the best Product in its segment it runs both am2 and am3 socket with both ddr2 and ddr3 ram
amazing product

Parvesh Panwar

Jun, 2014

Permalink

Report Abuse

Nice

Didnt have delivery to my place so had to order to some place else. Delivery came on time bt this motherboard is not for latest processors. Wasted my money on it.

Akhilesh Dhakal

Certified Buyer, Karnal

May, 2017

Permalink

Report Abuse

faulty motherboard

5stars received motherboard on time. But audio and support to DDR 3 is not functioning. Tried installing all audio drivers and codecs but no sound. After complaining to flipkart they askd to reach service center thanks for help but I am not interested in buying a faulty product and then getting it to service center to get it repaired. Very bad experience for the first time. I hv to buy other products too but now m reluctant whether I should buy or not.

Avtar Singh

Certified Buyer, Mumbai

Jul, 2014

Permalink

Report Abuse

All 11 reviews
