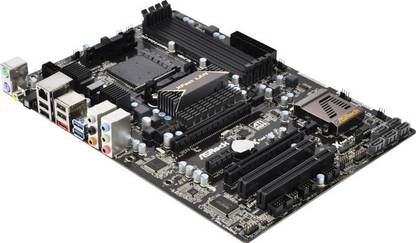

    ASRock 970 Extreme3 AM3+Socket ATX AMD 970 Chipset DDR3 Motherboard

    ASRock 970 Extreme3 AM3+Socket ATX AMD 970 Chipset DDR3 Motherboard

    Price: Not Available
    Currently Unavailable
    Warranty
    3 Years Domestic Warranty
    Highlights
    • AMD 970
    • Data Rate DDR3
    • Maximum RAM Capacity 32
    • Form Factor: ATX
    Specifications
    In The Box
    Sales Package
    • Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables
    General
    Brand
    • ASRock
    Model ID
    • 970 Extreme3
    Essentials
    Form Factor
    • ATX
    Socket Type
    • AM3+
    Compatible Processors
    • AMD Athlon II X4 Series Processor, AMD Phenom II X4 Series Processor, AMD Phenom II X6 Series Processor, AMD Sempron Processor, AMD Phenom II X3 Series Processor, (Except 920/ 940), 8-Core CPU, AM3 Processors: AMD Phenom II X2 Series Processor, AMD Athlon II X2 Series Processor, AMD Athlon II X3 Processor
    FSB
    • 2400 MHz
    Chipset
    • AMD 970, AMD SB950
    Chipset Manufacturer
    • AMD
    Memory
    Number of Memory Slots
    • 4 Slots
    Memory Configuration
    • 32 DDR3 Dual Channel DIMM
    Memory Frequency
    • 1866 MHz, 1800 MHz, 2100(O.C) MHz, 1066 MHz, 800 MHz, 1600 MHz, 1333 MHz
    ECC Support
    • Non-ECC
    Buffered Memory
    • Unbuffered
    Storage
    RAID Configurations
    • 0, 1, 5, 10
    Audio
    Audio Codec
    • Realtek ALC892
    Audio Channels
    • 7.1
    Audio Features
    • Premium Blu-ray Audio Support, Supports THX TruStudio
    Connectivity
    Ethernet Controller
    • Realtek 8111E
    Ethernet Features
    • 10/100/1000 Mbps, Supports Wake-On-LAN, Supports PXE, Supports Energy Efficient Ethernet 802.3az, LAN Cable Detection
    Expansion Slots
    PCI Slots
    • 2
    PCIe x1 Slots, Generation
    • 2
    PCIe x16 Slots, Generation
    • 1
    Internal I/o Headers
    SATA 6 Gb/s Headers
    • 5
    USB 2.0 Headers
    • 3
    ATX Power Connectors
    • 1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
    Fan Headers
    • 1 (Processor Fan Headers), 1 (System Fan Headers)
    Front Panel Headers
    • 1
    Other Connectors
    • 1 x IR Header, 1 x Power Fan Connector, 1 x CIR Header, 1 x HDMI_SPDIF Header
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 4
    USB 3.0 Ports, Controller
    • 2
    eSATA Ports, Controller
    • 1
    Audio I/O Channels
    • 1
    Optical S/PDIF Ports and S/PDIF Out ports
    • 1 (Optical S/PDIF Ports)
    RJ-45 Ethernet Jacks
    • 1
    PS/2
    • 2
    General Features
    Overclocking
    • Untied Overclocking Technology
    Hardware Monitoring
    • CPU Temperature Sensing, Chassis Temperature Sensing, CPU / Chassis / Power Fan Tachometer, CPU / Chassis Quiet Fan, CPU / Chassis Fan Multi-Speed Control, Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
    Support CDs
    • Drivers, Utilities, AMD OverDrive Utility, AMD Fusion, AMD Fusion Media Explorer, ASRock Software Suite (CyberLink DVD Suite - OEM and Trial, ASRock MAGIX Multimedia Suite - OEM)
    Bundled Software
    • ASRock MAGIX Multimedia Suite
    OS Support
    • Windows XP and Above
    BIOS
    • 32Mb AMI UEFI Legal BIOS with GUI support, Supports Plug and Play, ACPI 1.1 Compliance Wake Up Events, Supports jumperfree, SMBIOS 2.3.1 Support, CPU, VCCM, NB, SB Voltage Multi - Adjustment
    Features
    • AM3+ 8-Core Processor Support, Graphical UEFI, Digi Power, THX TruStudio, AXTU - The All - in - 1 Tuning Software, C.C.R. (Combo Cooler Retention Module), Turbo UCC
    Advanced Technologies
    • AMD Cool and Quiet Technology, Untied Overclocking Technology, Hyper - Transport 3.0 (HT 3.0) Technology, XFast 555 Technology, On/Off Play Technology, ATI CrossFireX Technology
    Advanced Features
    • ASRock Extreme Tuning Utility (AXTU), ASRock Instant Boot, ASRock Instant Flash, ASRock APP Charger, ASRock SmartView, ASRock XFast USB, ASRock XFast LAN, ASRock XFast RAM, ASRock On/Off Play Technology, Hybrid Booster: CPU Frequency Stepless Control, ASRock U-COP, Boot Failure Guard (B.F.G.), Turbo UCC
    Dimensions
    Dimensions
    • 218 x 305 mm
    Warranty
    Domestic Term
    • 3 Years ASRock India Warranty and Free Transit Insurance.
    Warranty Summary
    • 3 Years Domestic Warranty
    Covered in Warranty
    • Manufacturing Defects are Covered
    Not Covered in Warranty
    • Forceful Tampering, Burnt, Mishandling and Physical Damage
    Warranty Service Type
    • Carry In
