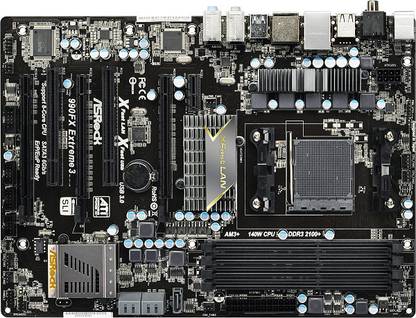

ASRock 990FX Extreme3 AM3+Socket ATX AMD 990FX Chipset DDR3 Motherboard

Freedom Sale starts in17 hrs : 00 mins : 35 secs

ASRock 990FX Extreme3 AM3+Socket ATX AMD 990FX Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Warranty

3 Years Domestic Warranty

Highlights

AMD 990FX
Data Rate DDR3
Maximum RAM Capacity 64
Form Factor: ATX

Specifications

In The Box

Sales Package

Motherboard, 1 x ASRock SLI_Bridge_2S Card, Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables, 1 x 3.5mm Audio Cable

General

Brand	ASRock
Model ID	990FX Extreme3

Essentials

Form Factor	ATX
Socket Type	AM3+
Compatible Processors	AM3+ Socket: AMD Opteron Processor, AMD Athlon II X3 Processor, AMD Athlon II X2 Processor, AMD Phenom II X2 Processor, AM3 Socket: AMD Phenom II X6 Processor, AMD Phenom II X3 Processor, AMD FX Processor, AMD Athlon II X4 Processor, AMD Athlon II Processor, AMD Sempron Processor, AMD Phenom II X4 Processor
FSB	2600 MHz
Chipset	AMD 990FX, AMD SB950
Chipset Manufacturer	AMD

Memory

Number of Memory Slots	4 Slots
Memory Configuration	64 DDR3 Dual Channel DIMM
Memory Frequency	1866 MHz, 1600 MHz, 2100(OC) MHz, 1800 MHz, 800 MHz, 1066 MHz, 1333 MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

SATA 6 Gb/s	AMD SB950
RAID Configurations	0, 1, 5, 10

Graphics

External Graphics Card Support	Yes
Multi GPU Support	Yes, AMD Quad CrossFireX, 3-way CrossFireX, AMD CrossFireX, Supports NVIDIA Quad SLI, NVIDIA SLI

Audio

Audio Codec	Realtek ALC892
Audio Channels	7.1
Audio Features	HD Audio with Content Protection, Premium Blu-ray Audio Support

Connectivity

Ethernet Controller	Broadcom BCM57781
Ethernet Features	PCIE x 1 Gigabit LAN 10/100/1000 Mb/s, Supports Wake-On-LAN, Supports Energy Efficient Ethernet 802.3az, Supports PXE

Expansion Slots

PCI Slots	2
PCIe x1 Slots, Generation	2, 1
PCIe x16 Slots, Generation	3, 2

Internal I/o Headers

SATA 6 Gb/s Headers	5
USB 2.0 Headers	3
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	2 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x HDMI_SPDIF Header, 1 x Power Fan Connector, 1 x Clear CMOS Jumper, 1 x IR Header, 1 x Power LED Header, 1x System Panel Header

Back Panel Ports

USB 2.0 Ports, Controller	6
USB 3.0 Ports, Controller	2, Etron EJ168A
eSATA Ports, Controller	1
Audio I/O Channels	6
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	2
Other Ports	1 x Coaxial S/PDIF Out Port

General Features

Overclocking	Supports Untied Overclocking Technology, Turbo 50/Turbo 60 CPU Overclocking, OC Tweaker (Overclock Mode)
Hardware Monitoring	CPU Temperature Sensing, Chassis Temperature Sensing, CPU/Chassis/Power Fan Tachometer, CPU Quiet Fan, CPU/Chassis Fan Multi-Speed Control, Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Support CDs	Drivers, Utilities
Bundled Software	AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial
OS Support	Windows: XP, Vista, 7, 8, 8.1
BIOS	32Mb AMI UEFI Legal BIOS with GUI Support, Supports Plug and Play, ACPI 1.1 Compliance Wake-up Events, Supports Jumperfree, SMBIOS 2.3.1 Support, CPU, VCCM, NB, SB Voltage Multi-adjustment
Features	ErP/EuP Ready (ErP/EuP Ready Power Supply is Required), Conductive Polymer Capacitors, WHQL, FCC, CE
Advanced Technologies	XFast 555 Technology (XFast RAM, XFast LAN, XFast USB), On/Off Play Technology, TrueTheater Technology, Turbo UCC Technology, Supports AMD's Cool 'n' Quiet Technology, Supports Hyper-transport 3.0 (HT 3.0) Technology
Advanced Features	ASRock Extreme Tuning Utility (AXTU), ASRock Instant Boot, ASRock Instant Flash, ASRock APP Charger, ASRock XFast USB, ASRock XFast LAN, ASRock XFast RAM, ASRock On/Off Play Technology, Hybrid Booster: CPU Frequency Stepless Control, ASRock U-COP, Boot Failure Guard (B.F.G.), Turbo 50/Turbo 60 CPU Overclocking, Turbo UCC

Limitations

XFast 555 Technology - The Performance Boost Percentage may vary with a Different Configuration, Graphical UEFI - Windows Vista 64-bit or Windows 7 64-bit OS is Required, 1866/1800/1600MHz Memory Speed is Supported depend on the AM3/AM3+ CPU you Adopt, To Reach the Maximum 64GB of System Memory, Memory Modules with 16GB Capacity or above are Required, Due to the Operating System Limitation the Actual Memory Size may be less than 4GB for the Reservation for System usage under Windows 32-bit OS however for Windows 64-bit OS with 64-bit CPU there is no such Limitation

Dimensions

218 x 305 mm

Warranty

Domestic Term	3 Years ASRock India Warranty and Free Transit Insurance.
Warranty Summary	3 Years Domestic Warranty

Ratings & Reviews

★

1 Ratings &

1 Reviews

5★
4★
3★
2★
1★

one word... AWESOME

this motherboard for enthusiast on a low budget... the quality at its price is just epic.... it supports upto 8 cores processor and upto 4 graphics cards at once.. and has a 7.1 ch HD audio from realtek so no need for a sound card.... the design and asthetics are great with great build quality while still fitting your pocket..this board is made for OC

my core build spec :-
cpu = fx6300 OC to 4.4ghz (deepcool aftermarket cooler)
gpu = asus amd r9 290x direct CU ii TOP edition
ram = 4gb x 2 ...
