Cart

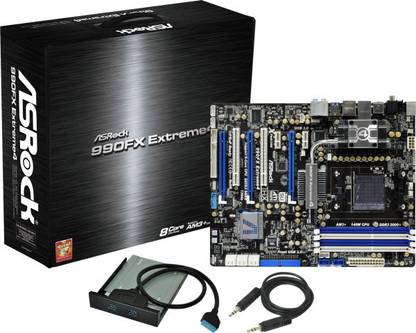

ASRock 990FX Extreme4 AM3Socket ATX AMD 990FX Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Warranty

Customer contacts Digicare for Warranty

Highlights

AMD 990FX
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: ATX

Specifications

General

Brand	ASRock
Model ID	990FX Extreme4

Essentials

Form Factor	ATX
Socket Type	AM3
Compatible Processors	AMD Athlon II X2, AMD Phenom II X4, AMD Phenom II X6, AMD Phenom II X2 (Except 920 / 940), AMD Phenom II X3, AMD Athlon II X3, AMD Athlon II X4, AMD Athlon II Sempron
FSB	2600 MHz
Chipset	AMD 990FX, AMD SB950
Chipset Manufacturer	AMD

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	1800 MHz, 1866 MHz, 800 MHz, 1066 MHz, 2100 (O.C) MHz, 1600 MHz, 1333 MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

SATA 6 Gb/s	AMD SB950, Marvell SE9120
RAID Configurations	0, 1,5, 10

Graphics

Multi GPU Support

Yes, AMD CrossFireX, AMD 3-Way CrossFireX, AMD Quad CrossFireX, NVIDIA SLI, NVIDIA Quad SLI

Audio

Audio Codec	Realtek ALC892
Audio Channels	7.1
Audio Features	Audio with Content Protection, Premium Blu-ray Audio Support, Supports THX TruStudio

Connectivity

Ethernet Features

10/100/1000 Mbps

Expansion Slots

PCI Slots	2
PCIe x1 Slots, Generation	2
PCIe x16 Slots, Generation	1

Internal I/o Headers

SATA 6 Gb/s Headers	8
USB 2.0 Headers	2
USB 3.0 Headers	1
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x ATA133 IDE Connector, Power FAN Connector, 1 x Dr. Debug (7-Segment Debug LED), 1 x Floppy Connector, 1 x Power LED Header, 1 x IR Header, 1 x HDMI_SPDIF Header, Front Panel Audio Connector, CD In Header

Back Panel Ports

USB 2.0 Ports, Controller	6
USB 3.0 Ports, Controller	Etron EJ168A, 2
eSATA Ports, Controller	1
IEEE 1394a Ports	1
Audio I/O Channels	6
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	2

General Features

Hardware Monitoring	CPU Temperature Sensing, Chassis Temperature Sensing, CPU/ Chassis/ Power Fan Tachometer, CPU/ Chassis Quiet Fan, CPU/ Chassis Fan Multi-speed Control, Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Support CDs	Drivers, Utilities, CyberLink MediaEspresso 6.5 Trial, AMD Fusion, AMD Fusion Media Explorer, ASRock Software Suite (CyberLink DVD Suite - OEM and Trial)
Bundled Software	AntiVirus Software (Trial Version)
OS Support	Windows XP and Above
BIOS	32Mb AMI UEFI Legal BIOS with GUI Support, Supports Plug and Play, ACPI 1.1 Compliance Wake Up Events, Supports Jumperfree, SMBIOS 2.3.1 Support, CPU, VCCM, NB, SB Voltage Multi-adjustment
Features	ASRock XFast USB, ASRock XFast RAM, ASRock OMG (Online Management Guard), ASRock Internet Flash, Hybrid Booster, Solid Capacitor Design, ASRock Instant Flash, ASRock APP Charger, ASRock SmartView, ASRock Extreme Tuning Utility (AXTU), ASRock Instant Boot, Combo Cooler Option (C.C.O), Good Night LED, ASRock XFast LAN
Advanced Features	Supports CPU up to 140W, Supports AMD's Cool 'n' Quiet Technology, Supports Untied Overclocking Technology, Supports Hyper-Transport 3.0 (HT 3.0) Technology

Dimensions

244 x 305 mm

Warranty

Domestic Term	3 Years ASRock India Warranty and Free Transit Insurance.
Warranty Summary	Customer contacts Digicare for Warranty
Covered in Warranty	Manufacturing Defects are Covered
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Physical Damage
Warranty Service Type	Carry In

Ratings & Reviews

4.5

★

28 Ratings &

9 Reviews

5★
4★
3★
2★
1★

Awesome motherboard

This is a cool motherboard in this price range. It's a beast, supports crossfire/sli and overclocking. Amazing product by ASRock. Get this for a future proof system.

Chankey Pathak

Certified Buyer, Jaipur

Aug, 2014

Permalink

Report Abuse

BEST MOTHERBOARD

saberthoot vs extreme4 i think this is far better than it go for it. you can see review on google....tomshardware will also duggest you for this only....and decent packing fast delivery

Hussain Deluxe

Certified Buyer, Indore

Mar, 2014

Permalink

Report Abuse

Value MOBO

well it's almost worth the money spent on it. apart from a certain boot time glitches that i have experienced, it's a resourceful motherboard & feature rich too. one thing that i most luved bout this mobo is it's colourful BIOS with a galactic wallpaper. one can use mouse to click & select in it's BIOS setup as well. coming from dull blue & white bios in my earlier mobos without mouse support & i m deeply impressed by it's newer (UEFI or UCFI something) BIOS. good & recommended buy for 8 cor...

Prranjal Shrivastav

Certified Buyer

Mar, 2013

Permalink

Report Abuse

Great One

Purchased this few days back.. well its a good one to buy and worth the penny you are spending.

The fan on the north bridge looks cool along with the heat sink makes it deliver more.

Good platform to extend the config for unlocking or gaming from a normal user prespective.

It has got 4 RAM slots, 3 PCIe Slots, 2 PCI slots, USB 3.0 Extending port, COM extending port, 8 SATA extension ports, and also the BIOS is UEFI support which indicates for faster boot and sleep timing and also extensive...

Lohit Raj

Certified Buyer

Nov, 2012

Permalink

Report Abuse

An action performer but crippled with...

Known for cheap and performance products, ASRock is a name I've been hearing for a while.
The reason I'd got this board, however, is that this is the cheapest board with 2x PCI-e 2.0 x16 slots in market.

The board came in an open box. This led me to call customer care and notify them about it. The exchange was perfect, they offered a replacement the very next day.

Upon a closer look, I noticed there was no anti static bag either. But the board itself seemed untouched. I looked up unboxing...

Vamsi Krishna Davuluri

Certified Buyer

Feb, 2013

Permalink

Report Abuse

Best motherboard,,,,:)

ya...this is a good one if u r going to buy for the gaming purpose and u can notice that one this one have the heat sink fan on the north bridge and the another motherbboard comes with northbridge water cooling is asus maximus which is for i7 processor.....so guys u can go for it.....:):)

Ajay Kumar

Aug, 2012

Permalink

Report Abuse

POWER HORSE

Simply Awesome. Cool & Powerful to Drive any AM3 Processor with Overclock. A Perfectly budgeted Gamming cum Overclocking MObo. Just go for it.

Samiran Dey

Certified Buyer

Dec, 2013

Permalink

Report Abuse

Good Board

Pros:Cheap
Cons: Screws to fit fan on chipset heat sinks is not long enough.

I paired this board with FX 8350 processor and G.Skill RipjawsX DDR3 8GB. It is working perfectly.
Initialy came across problems of not booting then realized that i need to clear the CMOS by pressing Clear CMOS button from connector panel.

Faced BCD screen due to improper heat arrangements. After making those changes it is working very fine.

Abhishek Bhosale

Certified Buyer, Mumbai

Oct, 2013

Permalink

Report Abuse

planning to buy

i am planning to buy this asrock z77 extreme motherboard.... no i need to know whether this motherboard supports the following
1. AMD 3.5 GHz AM3+ FX 8320 8 Core Piledriver Processor / AMD 3.3 GHz AM3+ FX6100 Processor
2. Sapphire Radeon HD 7850 2GB GDDR5 Graphics Card and
3. Sapphire AMD/ATI Radeon HD 6670 1GB DDR5 Graphics Card

Angshuman Tamuli

Jun, 2013

Permalink

Report Abuse

All 9 reviews
