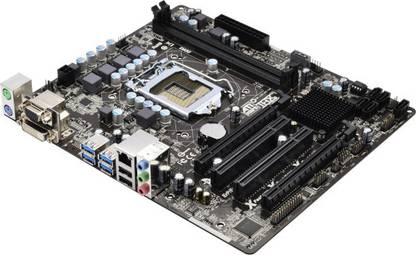

ASRock B75M-GL LGA 1155Socket Micro-ATX Intel B75 Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Warranty

3 Years Domestic Warranty

Highlights

Intel B75
Data Rate DDR3
Maximum RAM Capacity 16
Form Factor: Micro-ATX

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	2
USB 3.0 Ports, Controller	4
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	1
RJ-45 Ethernet Jacks	1
PS/2	2

In The Box

Sales Package

Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables

General Features

Hardware Monitoring	CPU Temperature Sensing, Chassis Temperature Sensing, CPU / Chassis / Power Fan Tachometer, CPU / Chassis Quiet Fan, CPU / Chassis Fan Multi-Speed Control, Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Support CDs	Drivers, Utilities, ASRock MAGIX Multimedia Suite - OEM
Bundled Software	ASRock MAGIX Multimedia Suite
OS Support	Windows XP and Above
BIOS	64Mb AMI UEFI Legal BIOS with GUI support, Supports Plug and Play, ACPI 1.1 Compliance Wake Up Events, Supports jumperfree, SMBIOS 2.3.1 Support, CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi - Adjustment
Features	Graphical UEFI, Next-Gen PCI-E 3.0, Digi Power, THX TruStudio, Internet Flash
Advanced Technologies	Intel Turbo Boost 2.0 Technology, Hyper-Threading Technology, Intel Rapid Start Technology, Smart Connect Technology, XFast 555 Technology
Advanced Features	ASRock Extreme Tuning Utility (AXTU), ASRock Instant Boot, ASRock Instant Flash, ASRock APP Charger, ASRock SmartView, ASRock XFast USB, ASRock XFast LAN, ASRock XFast RAM, ASRock Crashless BIOS, ASRock OMG (Online Management Guard), ASRock Internet Flash, ASRock UEFI System Browser, ASRock Dehumidifier Function, Hybrid Booster: ASRock U-COP, Boot Failure Guard (B.F.G.), Combo Cooler Option (C.C.O.), Good Night LED

Warranty

Domestic Term	3 Years ASRock India Warranty and Free Transit Insurance.
Warranty Summary	3 Years Domestic Warranty
Covered in Warranty	Manufacturing Defects are Covered
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Physical Damage
Warranty Service Type	Carry In

Memory

Number of Memory Slots	2 Slots
Memory Configuration	16 DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 1600 MHz, 1333 MHz, 2200(O.C) MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Dimensions

213 x 244 mm

Essentials

Form Factor	Micro-ATX
Socket Type	LGA 1155
Compatible Processors	Intel 3rd Generation Core i3 Processor, Intel 2nd Generation Core i7 Processor, Intel 2nd Generation Core i5 Processor, Intel 3rd Generation Core i5 Processor, Intel 3rd Generation Core i7 Processor, Intel 2nd Generation Core i3 Processor
Chipset	Intel B75
Chipset Manufacturer	Intel

Graphics

Integrated Graphics card

Expansion Slots

PCI Slots	2
PCIe x16 Slots, Generation	1

General

Brand	ASRock
Model ID	B75M-GL
Key Features	Maximum 16 GB DDR3, LGA 1155 Socket Type, 5 SATA 3Gb/s Headers, 2 Memory Slots, Dual Channel DIMM Memory, Intel B75 Chipset, Micro-ATX Form Factor

Connectivity

Ethernet Controller	Realtek 8111E
Ethernet Features	10/100/1000 Mbps, Supports Wake-On-LAN, Supports PXE, Supports Energy Efficient Ethernet 802.3az, LAN Cable Detection
Number of Printer Ports	1
Number of Com Ports	1

Audio

Audio Codec	Realtek ALC662
Audio Channels	5.1
Audio Features	Supports THX TruStudio

Internal I/o Headers

SATA 6 Gb/s Headers	1
USB 2.0 Headers	2
ATX Power Connectors	1 (24 Pin ATX Power Connectors)
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	1
Other Connectors	4 pin 12V Power Connector, 1 x IR Header, 1 x Power Fan Connector, 1 x CIR Header

Ratings & Reviews

★

8 Ratings &

2 Reviews

5★
4★
3★
2★
1★

brilliant value for money

it is really packed with useful features.
BIOS updates itself via net.
AMD Crossfire support
really really Ultra fast boot. you need to see it to believe it. it works amazingly fast

A must buy, has best of performance with price.
Lost overclocking tricks buitin

Parag Barangale

Certified Buyer

Jan, 2013

Permalink

Report Abuse

Economical, yet, Wonderful.

Gladly recommend this motherboard. I replaced an H61 Gigabyte motherboard with this one. The older motherboard was a piece of junk. It dropped SATA connections at times without any reason. It took for ever to boot up (even with a SSD drive) as BIOS itself took 10-12 seconds to start bootstrap.

This one is quick to boot and has very useful features. SATA3 (6GB/s), USB 3.0 are very useful. It has AMD CrossFireX technology to allow you to install multiple graphics card that can interact with e...
