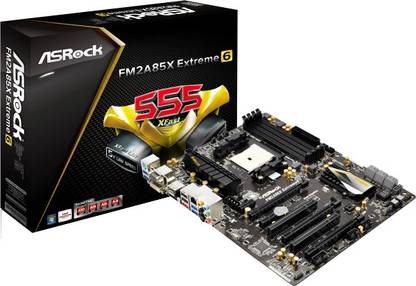

ASRock FM2A85X Extreme6 FM2Socket ATX AMD A85X Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Warranty

Customer Contacts Digicare for Warranty

Highlights

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	2
USB 3.0 Ports, Controller	4
eSATA Ports, Controller	1
HDMI Ports	1
VGA/D Sub Ports	1
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	1

In The Box

Sales Package

Quick Installation Guide, Support CD, I/O Shield,4 x SATA Data Cables, Drivers, Utilities, AntiVirus Software (Trial Version)

General Features

Hardware Monitoring	CPU Temperature Sensing, Chassis Temperature Sensing, CPU / Chassis / Power Fan Tachometer, CPU Quiet Fan, CPU / Chassis Fan Multi-Speed Control, CASE OPEN Detection - Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Support CDs	Drivers, Utilities, AntiVirus Software (Trial Version), AMD Live! Explorer, AMD Fusion, CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite - OEM, Google Chrome Browser and Toolbar
OS Support	Windows XP and Above
BIOS	64Mb AMI UEFI Legal BIOS with GUI Support, Supports Plug and Play ACPI 1.1 Compliance Wake Up Events, Supports Jumperfree, SMBIOS 2.3.1 Support - DRAM, APU PCIE VDDP, CPU and CPU NB / GFX Voltage Multi-Adjustment
Features	XFast 555, OMG, Supports Lucid Virtu MVP, Easy RAID Installer, Interactive UEFI, Fast Boot, Restart to UEFI, ASRock X-Boost, AMD Steady Video 2.0, Dehumidifier
Advanced Technologies	AMD's Cool 'n' Quiet Technology, HDMI 1.4a Technology with Max Resolution up to 1920x1200 @ 60Hz
Advanced Features	AMD Quad CrossFireX, 3-Way CrossFireX, CrossFireX and Dual Graphics, Built-in AMD Radeon HD 7000 Series Graphics, DX 11, PS 5.0, Multi VGA Output: D-Sub, DVI-D, HDMI and Display Port, Supports Triple Monitor, X-Boost, Digi Power, Triple Monitor, Fast Boot, Restart to UEFI, DirectX 11, Dual Graphics

Warranty

Domestic Term	3 Years ASRock India Warranty and Free Transit Insurance.
Warranty Summary	Customer Contacts Digicare for Warranty
Covered in Warranty	Manufacturing Defects are Covered
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Physical Damage
Warranty Service Type	Carry In

Memory

Number of Memory Slots	4 Slots
Memory Configuration	64 DDR3 Dual Channel DIMM
Memory Frequency	1866 MHz, 2400(O.C) MHz, 1066 MHz, 2600(O.C) MHz, 2133(O.C) MHz, 1600 MHz, 1333 MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Limitations

Due to the Operating System Limitation, the Actual Memory Size may be Less than 4GB for the Reservation for System Usage Under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.

Essentials

Form Factor	ATX
Socket Type	FM2
Compatible Processors	AMD A8 Processor, AMD A4 Processor, AMD A6 Processor, AMD A10 Processor, AMD Athlon II X4 Processor
Chipset	AMD A85X
Chipset Manufacturer	AMD

Graphics

Integrated Graphics card

Storage

RAID Configurations

Expansion Slots

General

Brand	ASRock
Model ID	FM2A85X Extreme6
Key Features	ATX Form Factor, Maximum 64 GB DDR3, AMD A85X Express, Dual Channel DIMM Memory, 4 Memory Slots, 1 HDMI Ports, FM2 Socket Type

Connectivity

Audio

Internal I/o Headers

SATA 6 Gb/s Headers	7
USB 2.0 Headers	3
USB 3.0 Headers	1
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	2 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers	1
Other Connectors	XFire Power Connector, 1 x Reset Switch with LED, 1 x Power LED Header, 1 x Dr. Debug with LED, 1 x IR Header, 1 x CIR Header, 1 x HDMI_SPDIF Header, 1 x Power Switch with LED, 1 x Chassis Intrusion Header, 1 x Power Fan Connector (3-pin)
