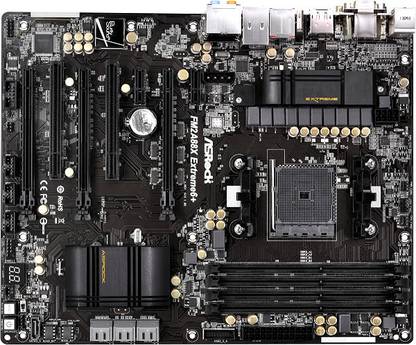

ASRock FM2A88X Extreme6+ Motherboard

Price: Not Available

Currently Unavailable

Warranty

3 Years Domestic Warranty

Highlights

AMD A88X
Data Rate DDR3
Maximum RAM Capacity 64
Form Factor: ATX

Specifications

In The Box

Sales Package

Motherboard, Quick Installation Guide, Support CD, I/O Shield, 4 x SATA Data Cables

General

Brand	ASRock
Model ID	FM2A88X Extreme6+

Essentials

Form Factor	ATX
Socket Type	FM2+
Compatible Processors	AMD A8 Processor, FM2 Socket: AMD A10 Processor, AMD Athlon X2 Processor, AMD A4 Processor, AMD A6 Processor, AMD Athlon II X4 Processor, AMD Athlon II X2 Processor
Chipset	AMD A88X
Chipset Manufacturer	AMD

Memory

Number of Memory Slots	4 Slots
Memory Configuration	64 DDR3 Dual Channel DIMM
Memory Frequency	1866 MHz, 1066 MHz, 2600+(OC) MHz, 2133 MHz, 1600 MHz, 2400(OC) MHz, 1333 MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

RAID Configurations

0, 1, 5, 10

Graphics

Integrated Graphics card	Yes
External Graphics Card Support	Yes
Multi GPU Support	Yes, AMD Quad CrossFireX, 3-way CrossFireX, CrossFireX

Audio

Audio Codec	Realtek ALC1150
Audio Channels	7.1
Audio Features	HD Audio with Content Protection, Premium Blu-ray Audio Support, Supports Purity Sound (115dB SNR DAC with Differential Amplifier, TI NE5532 Premium Headset Amplifier (Supports Upto 600 ohm Headsets), Direct Drive Technology, EMI Shielding Cover, PCB Isolate Shielding), Supports DTS Connect

Connectivity

Ethernet Controller	Qualcomm Atheros AR8171
Ethernet Features	PCIE x1 Gigabit LAN 10/100/1000 Mb/s, Supports Qualcomm Atheros Security Wake On Internet Technology, Supports Wake-On-LAN, Supports Energy Efficient Ethernet 802.3az, Supports PXE

Expansion Slots

PCI Slots	2
PCIe x1 Slots, Generation	2
PCIe x16 Slots, Generation	2

Internal I/o Headers

SATA 6 Gb/s Headers	7
USB 2.0 Headers	3
USB 3.0 Headers	1
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	2 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Reset Switch with LED, 1 x Power LED Header, 1 x Dr. Debug with LED, 1 x IR Header, 1 x XFire Power Connector, 1 x Power Switch with LED, 1 x Chassis Intrusion Header, 1 x BIOS Selection Switch, 1 x Power Fan Connector (3-pin)

Back Panel Ports

USB 2.0 Ports, Controller	2
USB 3.0 Ports, Controller	4, ASMedia ASM1042, AMD A88X
eSATA Ports, Controller	1
HDMI Ports	2
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	5
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	1
Other Ports	1 x DVI-D Port, 1 x Display Port, HD Audio Jacks: Rear Speaker/Central/Bass/Line-in/ Front Speaker/Microphone

General Features

Overclocking	OC Tweaker (EZ OC Mode, Overclock Mode), ASRock X-Boost
Hardware Monitoring	CPU Temperature Sensing, Chassis Temperature Sensing, CPU Fan Tachometer, Chassis Fan Tachometer, CPU/Chassis Quiet Fan, CPU/Chassis Fan Multi-speed Control, CASE OPEN Detection, Voltage monitoring: +12V, +5V, +3.3V, Vcore
Support CDs	Drivers, Utilities
Bundled Software	AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar, Start8 (30 Days Trial)
OS Support	Windows: 7, 8, 8.1
BIOS	2 x 64Mb AMI UEFI Legal BIOS with Multilingual GUI Support (1 x Main BIOS and 1 x Backup BIOS), Supports Secure Backup UEFI Technology, Supports Plug and Play, ACPI 1.1 Compliant Wake-up Events, Supports Jumperfree, SMBIOS 2.3.1 Support, DRAM, VDDP, VDDR Voltage Multi-adjustment
Features	DirectX 11 and Pixel Shader 5.0 with FM2 CPU, Graphics: Integrated AMD Radeon HD 8000/7000 Series Graphics in A-series APU, Supports Full HD 1080p Blu-ray (BD) Playback with DVI-D Port, Supports Dual-link DVI-D with Maximum Resolution Upto 2560 x 1600 at 60Hz, Supports Quad Monitor with FM2+ CPU, HDMI Port and Display Port, A-Style (Home Cloud, Premium Gold Capacitor Design, Supports DP++, CE, Supports DisplayPort 1.2 with Maximum Resolution Upto 4K x 2K (4096 x 2400) at 60Hz or 4K x 2K (4096 x 2160) at 60Hz, 8 + 2 Power Phase Design, Supports Auto Lip Sync, ErP/EuP Ready, 2 GB of Maximum Shared Memory, LAN Port with LED (Act/Link LED and Speed LED), Supports Multi-streaming, Supports Triple Monitor with FM2 CPU, xvYCC and HBR (High Bit Rate Audio) with HDMI Port, Supports Blu-ray Stereoscopic 3D with HDMI Port, HDMI-In), Deep Color (12bpc), Supports HDCP with DVI-D Port, WHQL, Supports HDMI Technology with Maximum Resolution Upto 1920 x 1200 at 60Hz, Supports D-Sub with Maximum Resolution Upto 1920 x 1200 at 60Hz, Purity Sound, USB Key, Supports AMD Steady Video 2.0 (New Video Post Processing Capability for Automatic Jitter Reduction on Home/Online Video), Certifications: FCC, Digi Power Design, DirectX 11.1 and Pixel Shader 5.0 with FM2+ CPU
Advanced Technologies	ASRock Fast Boot Technology, Online Management Guard (OMG) Technology, Supports Intel Extreme Memory Profile (XMP) 1.3/1.2, Supports AMD Memory Profile (AMP)
Advanced Features	ASRock A-Tuning, ASRock Instant Boot, ASRock Instant Flash, ASRock APP Charger, XFast 555, ASRock XFast USB, ASRock XFast LAN, ASRock XFast RAM, ASRock Crashless BIOS, ASRock Internet Flash, ASRock UEFI System Browser, ASRock UEFI Tech Service, ASRock Dehumidifier Function, ASRock Easy RAID Installer, ASRock Easy Driver Installer, ASRock Interactive UEFI, ASRock Restart to UEFI, ASRock USB Key, ASRock FAN-Tastic Tuning, ASRock U-COP (Hybrid Booster)

Limitations

DDR3 2600+ is Only Supported with Two DIMMs, Due to The Operating System Limitation: The Actual Memory Size may be Less than 4 GB for The Reservation for System Usage Under Windows 32-bit OS, PCIE 3.0 is Only Supported with FM2+ CPU and FM2 CPU it Only Supports PCIE 2.0, ErP/EuP Ready Power Supply is Required, 555X Fast: The Performance Boost Percentage may Vary with a Different Configuration, Some of AMD CPU (i.e AMD Athlon/Sempron family CPU) Does not have Integrated Graphics Processor so when this Kind of CPU is Installed, A Discrete VGA Card is Required

Warranty

Domestic Term	3 Years ASRock India Warranty and Free Transit Insurance.
Warranty Summary	3 Years Domestic Warranty

Ratings & Reviews

★

5 Ratings &

1 Reviews

5★
4★
3★
2★
1★

Glad I bought it

After, my last mobo from GIGABYTE died, I decided to go with this mobo. Its loads better than the other one. Havent had a problem with it.

I highly recommend this product.

Tajinder Singh

Certified Buyer, Ludhiana

Mar, 2014
