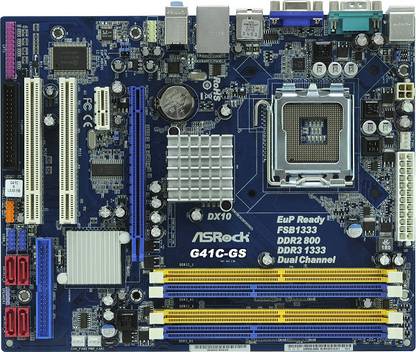

ASRock G41C-GS LGA 775Socket Micro-ATX Intel G41 Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Highlights

Specifications

In The Box

Sales Package

Motherboard, Quick Installation Guide, Support CD, I/O Shield and 2 x SATA Data Cables

General

Brand	ASRock
Model ID	G41C-GS

Essentials

Form Factor	Micro-ATX
Socket Type	LGA 775
Compatible Processors	Socket 775: Intel Core 2 Extreme, Intel Core 2 Quad, Intel Core 2 Duo, Intel Pentium D, Intel Celeron, Intel Pentium Dual Core, Intel Pentium 4, Intel Celeron Dual Core, Intel Celeron D
FSB	1333, 1066, 800, 533 MHz
Chipset	Intel G41, Intel ICH7
Chipset Manufacturer	Intel

Memory

Graphics

Integrated Graphics card

Audio

Connectivity

Ethernet Controller	Realtek RTL8111DL
Ethernet Features	10/100/1000 Mbit

Expansion Slots

Internal I/o Headers

SATA 3 Gb/s Headers	4
USB 2.0 Headers	2
ATX Power Connectors	1 (24 Pin ATX Power Connectors)
Front Panel Headers	1
Other Connectors	1 x Floppy Connector, 4 pin 12V Power Connector, CPU/ Chassis/ Power FAN Connector, 1 x ATA100 IDE Connector (Supports 2 x IDE Devices)

Back Panel Ports

General Features

Overclocking	Supports Untied Overclocking Technology
Hardware Monitoring	CPU Temperature Sensing, Chassis Temperature Sensing, CPU / Chassis / Power Fan Tachometer, CPU Quiet Fan, Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Support CDs	Drivers, Utilities, AntiVirus Software (Trial Version), ASRock Software Suite (CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial)
OS Support	Windows XP, Windows Vista, Windows 7
BIOS	8Mb AMI Legal BIOS, Supports Plug and Play, ACPI 1.1 Compliance Wake Up Events, SMBIOS 2.3.1 Support, VCCM, NB, VTT, GTLRef Voltage Multi-Adjustment
Features	Supports Dual Channel DDR3 1333 (OC) and DDR2 800, Supports FSB 1333/ 1066/ 800/ 533 MHz CPUs, Certificates: FCC, DirectX 10, EuP Ready, CE, Pixel Shader 4.0, PCIE Gigabit LAN, Memory: 2 x DDR2 DIMM Slots, Max. Shared Memory 1759MB
Advanced Technologies	Supports Hyper-Threading Technology, Supports ASRock XFast RAM, XFast LAN, XFast USB Technologies
Advanced Features	ASRock OC Tuner, ASRock Intelligent Energy Saver, ASRock Instant Boot, ASRock Instant Flash, ASRock OC DNA, Hybrid Booster, CPU Frequency Stepless Control, ASRock U-COP, Boot Failure Guard (B.F.G.)

Limitations

Due to the Operating System Limitation, The Actual Memory Size may be Less than 4GB for the Reservation for System Usage Under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, There is No Such Limitation, The Shared Memory Size is Dynamically Controlled by VGA Driver, and The Max Shared Memory Size will be Available Only When More Than 4GB Memory is Installed Under 64-bit OS

Dimensions

Warranty

Domestic Term	3 Years ASRock India Warranty and Free Transit Insurance.
Covered in Warranty	Manufacturing Defects
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Physical Damage
Warranty Service Type	Carry In
