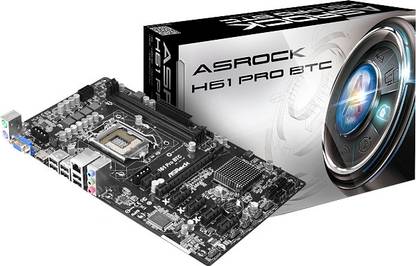

ASRock H 61 PRO BTC LGA 1155Socket ATX Intel H61 Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Highlights

Intel H61
Data Rate DDR3
Maximum RAM Capacity 16
Form Factor: ATX

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	6
HDMI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	3
RJ-45 Ethernet Jacks	1
PS/2	2
Other Ports	1 x D-Sub Port

In The Box

Sales Package

Motherboard, Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables

General Features

Hardware Monitoring	CPU Temperature Sensing, Chassis Temperature Sensing, CPU / Chassis / Power Fan Tachometer, CPU / Chassis Quiet Fan (Auto Adjust Chassis Fan Speed by CPU Temperature), CPU / Chassis Fan Multi-speed Control, Voltage Monitoring: +12 V, +5 V, +3.3 V, CPU Vcore
Support CDs	Drivers, Utilities
Bundled Software	Google Chrome Browser and Toolbar
OS Support	Vista (32-bit, 64-bit), 8 (32-bit, 8.1 (32-bit, Windows: XP (32-bit, 64-bit), 64-bit), 7 (32-bit, 64-bit), 64-bit)
BIOS	32 Mb AMI UEFI Legal BIOS with GUI Support, Supports Plug and Play, ACPI 1.1 Compliant Wake Up Events, Supports Jumperfree, SMBIOS 2.3.1 Support, IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage Multi-adjustment
Features	Certifications: FCC, Intel InTru 3D, Pixel Shader 4.1, ASRock Dehumidifier Function, Intel InTru 3D, CE, ErP/EuP Ready (ErP/EuP Ready Power Supply is Required), WHQL, Intel HD Graphics 2500 / 4000 with Intel Ivy Bridge CPU - Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video, ASRock Fast Boot, Graphics Output Options: D-Sub, Intel HD Graphics 2000 / 3000, Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video 2.0, Maximum Shared Memory 1760 MB with Intel Ivy Bridge CPU, Intel Insider, Intel Advanced Vector Extensions (AVX) with Intel Sandy Bridge CPU, DirectX 10.1 with Intel Sandy Bridge CPU, ASRock XFast USB, Maximum Shared Memory 1759 MB with Intel Sandy Bridge CPU, ASRock APP Charger, Pixel Shader 5.0, DirectX 11 with Intel Ivy Bridge CPU, ASRock Instant Flash, ASRock Extreme Tuning Utility (AXTU), ASRock Instant Boot, ASRock Crashless BIOS, All Solid Capacitor Design, ASRock XFast LAN, ASRock OMG (Online Management Guard), ASRock Internet Flash, ASRock Restart to UEFI, Combo Cooler Option (C.C.O.), Hybrid Booster: ASRock U-COP, ASRock XFast RAM, Good Night LED, Boot Failure Guard (B.F.G.), Support NCQ, AHCI and Hot Plug, HDMI
Advanced Technologies	Intel Rapid Start Technology, Intel Smart Connect Technology, Intel Turbo Boost 2.0 Technology, Hyper-Threading Technology, Supports Intel K-Series Unlocked CPU's, Intel Clear Video HD Technology, Supports HDMI Technology with Maximum Resolution up to 1920 x 1200 at 60 Hz
Advanced Features	Supports Intel Extreme Memory Profile (XMP) 1.3 / 1.2 with Intel Ivy Bridge CPU

Expansion Slots

PCIe x1 Slots, Generation	5, 2
PCIe x16 Slots, Generation	3, 1

Memory

Number of Memory Slots	2 Slots
Memory Configuration	16 DDR3 Dual Channel DIMM
Memory Frequency	1333 MHz, 1066 MHz, 1600 MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

General

Brand	ASRock
Model ID	H 61 PRO BTC
Key Features	Intel H61 Chipset, ATX Form Factor, LGA 1155 Socket Type, 2 Memory Slots, Maximum 16 GB DDR3, Dual Channel Memory

Connectivity

Ethernet Controller	Realtek RTL8111E
Ethernet Features	PCIE x 1 Gigabit LAN 10/100/1000 Mbps, Supports Wake-On-LAN, Supports LAN Cable Detection, Supports Energy Efficient Ethernet 802.3az, Supports PXE
Number of Com Ports	1

Essentials

Form Factor	ATX
Socket Type	LGA 1155
Compatible Processors	Intel 2nd Generation Core i7 Processor, Intel 2nd Generation Core i5 Processor, Intel 2nd Generation Core i3 Processor, Intel 3rd Generation Core i5 Processor, Intel 3rd Generation Core i3 Processor, Intel Pentium Processor, Intel Xeon Processor, Intel Celeron Processor, Intel 3rd Generation Core i7 Processor
Chipset	Intel H61
Chipset Manufacturer	Intel

Audio

Audio Codec	VT1705
Audio Channels	5.1
Audio Features	HD Audio

Internal I/o Headers

USB 2.0 Headers	2
ATX Power Connectors	1 (24 Pin ATX Power Connectors)
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x 8 pin 12 V Power Connector, 2 x SLI/XFire Power Connectors, 4 x SATA2 3.0 Gb/s Connectors, 1 x IR Header, 1 x Power Fan Connector (4-pin)

Ratings & Reviews

3.5

★

4 Ratings &

2 Reviews

5★
4★
3★
2★
1★

HD 7870 and Ram

Will I be able to install my ASapphire HD 7870 and Corsair Vengeance DDR3 8 GB (1 x 8 GB) PC DRAM (CMZ8GX3M1A1600C10)?
I also have an Intel i5 3570k CPU @3.40 GHz Ivy Bridge
Please advise.
Thanks

Jake Ray

Jan, 2016

Permalink

Report Abuse

Where is the warranty note?

This motherboard look like great for view in this price but there is no warranty guidance in the product view. update the warranty details.

Parthiban Periyasamy

Oct, 2014

Permalink

Report Abuse
