| In The Box | |
|---|---|

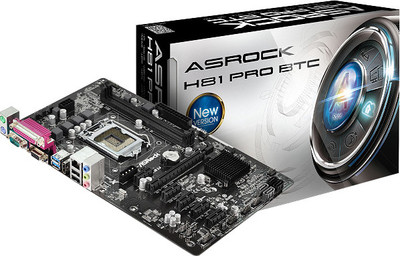

| Sales Package | Motherboard, Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables |
| Memory | |
|---|---|
| Buffered Memory | Unbuffered |
| Memory Configuration | 16 DDR3 Dual Channel DIMM |
| Memory Frequency | 1333 MHz, 1066 MHz, 1600 MHz |
| Number of Memory Slots | 2 Slots |
| ECC Support | Non-ECC |
| General | |
|---|---|
| Brand | ASRock |
| Model ID | H 81 PRO BTC |

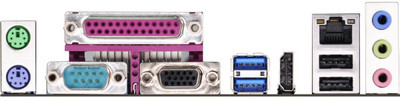

| Back Panel Ports | |
|---|---|
| Audio I/O Channels | 3 |
| RJ-45 Ethernet Jacks | 1 |
| VGA/D Sub Ports | 1 |
| HDMI Ports | 1 |
| PS/2 | 2 |
| USB 2.0 Ports, Controller | 2 |
| USB 3.0 Ports, Controller | 2 |
| Other Ports | 1 x D-Sub Port, 1 x Serial Port: COM1, 1 x Parallel Port (ECP/EPP Support) |
| Internal I/O Headers | |
|---|---|
| Front Panel Headers | 1 |
| Fan Headers | 2 (Processor Fan Headers), 2 (System Fan Headers) |
| ATX Power Connectors | 1 (24 Pin ATX Power Connectors) |
| USB 2.0 Headers | 2 |
| Other Connectors | 1 x IR Header, 1 x Power LED Header, 1 x SPDIF Out Connector, 1 x Power Fan Connector (3-pin), 2 x SLI/XFire Power Connectors, 2 x SATA3 6.0 Gb/s Connectors, 1 x 8 pin 12 V Power Connector, 2 x SATA2 3.0 Gb/s Connectors |
| General Features | |
|---|---|
| OS Support | 64-bit), 7 (32-bit, 8.1 (32-bit, Windows: 8 (32-bit, 64-bit), 64-bit) |
| Hardware Monitoring | CPU / Chassis Temperature Sensing, CPU / Chassis / Power Fan Tachometer, CPU Quiet Fan (Auto Adjust Chassis Fan Speed by CPU Temperature), CPU / Chassis Fan Multi-speed Control, Voltage Monitoring: +12 V, +5 V, +3.3 V, CPU Vcore |
| Support CDs | Drivers, Utilities |
| Advanced Features | Supports Intel Extreme Memory Profile (XMP) 1.3 / 1.2, Digi Power Design, 4 Power Phase Design |
| Advanced Technologies | Supports Intel Turbo Boost 2.0 Technology, Intel Clear Video HD Technology, Supports HDMI Technology with Maximum Resolution up to 1920 x 1200 at 60 Hz, Supports Realtek RealWoW Technology |
| BIOS | 32 Mb AMI UEFI Legal BIOS with Multilingual GUI Support, ACPI 1.1 Compliant Wake Up Events, SMBIOS 2.3.1 Support, CPU, DRAM, PCH 1.05 V Voltage Multi-adjustment |
| Bundled Software | Google Chrome Browser and Toolbar |
| Features | WHQL, Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, ErP/EuP Ready (ErP/EuP Ready Power Supply is Required), Intel InTru 3D, Intel HD Graphics 4400 / 4600, Maximum Shared Memory 1792MB, Certifications: FCC, ASRock Fast Boot, ASRock USB Key, Hybrid Booster: ASRock U-COP, Pixel Shader 5.0, Intel Insider, ASRock APP Charger, CE, Good Night LED, DirectX 11.1, ASRock Internet Flash, ASRock FAN-Tastic Tuning, ASRock Instant Flash, ASRock Crashless BIOS, ASRock A-Tuning, ASRock XFast RAM, ASRock APP Shop, ASRock XFast LAN, AHCI and Hot Plug, HDMI, ASRock OMG (Online Management Guard), ASRock Interactive UEFI, ASRock Easy Driver Installer, Boot Failure Guard (B.F.G.), ASRock UEFI Tech Service, ASRock Dehumidifier, ASRock Restart to UEFI, Support NCQ, All Solid Capacitor Design, Graphics Output Options: D-Sub |
| Expansion Slots | |
|---|---|
| PCIe x16 Slots, Generation | 2.0, 1 |
| PCIe x1 Slots, Generation | 5, 2.0 |
| Connectivity | |
|---|---|
| Ethernet Features | PCIE x 1 Gigabit LAN 10/100/1000 Mbps, Supports Wake-On-LAN, Supports LAN Cable Detection, Supports Energy Efficient Ethernet 802.3az, Supports PXE |
| Ethernet Controller | Realtek RTL8111GR |
| Audio | |
|---|---|
| Audio Channels | 5.1 |
| Audio Codec | ALC662 |
| Audio Features | HD Audio |
| Essentials | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset | Intel H61 |
| Compatible Processors | Intel 4th Generation Core i3 Processor, Intel Xeon Processor, Intel 4th Generation Core i5 Processor, Intel New 4th Generation Core i3 Processor, Intel Celeron Processor, Intel Pentium Processor, Intel New 4th Generation Core i7 Processor, Intel New 4th Generation Core i5 Processor, Intel 4th Generation Core i7 Processor |
| Form Factor | ATX |
| Socket Type | LGA 1150 |
