| Back Panel Ports | |
|---|---|
| Audio I/O Channels | 3 |
| RJ-45 Ethernet Jacks | 1 |
| VGA/D Sub Ports | 1 |
| DVI Ports | 1 |
| PS/2 | 2 |
| USB 2.0 Ports, Controller | 6 |
| Other Ports | 1 x DVI-D Port |
| Warranty | |
|---|---|
| Domestic Term | 3 Years ASRock India Warranty and Free Transit Insurance. |
| Covered in Warranty | Manufacturing Defects |
| Warranty Summary | 3 Years ASRock India Warranty and Free Transit Insurance |
| Warranty Service Type | Carry In |
| Not Covered in Warranty | Forceful Tampering, Burnt, Mishandling and Pysical Damage |
| Connectivity | |
|---|---|
| Ethernet Features | PCIE x 1 Gigabit LAN 10/100/1000 Mb/s, Supports Wake-On-LAN, Supports PXE |
| Ethernet Controller | Realtek RTL8111C |
| Limitations | |
|---|---|
| Due to the Operating System limitation, the actual memory size may be less than 4 GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Due to chipset limitation, the Blu-ray playback of Intel HD Graphics is only supported under Windows Vista and Windows 7. Intel InTru 3D is only supported under Windows 7 and Windows 7 x64. PCIe Gen3 is supported on 3rd Generation of Intel Core i5 and Core i7 CPUs. DDR3 1600 with Intel Ivy Bridge CPU, DDR3 1333 with Intel Sandy Bridge CPU. Intel Rapid Start Technology and Smart Connect Technology are only supported under Windows 7 OS or later versions |
| In The Box | |
|---|---|
| Sales Package | Motherboard, Quick Installation Guide, Support CD, I/O Shield and Sata Cables, 2 x SATA Data Cables |
| General | |
|---|---|
| Brand | ASRock |

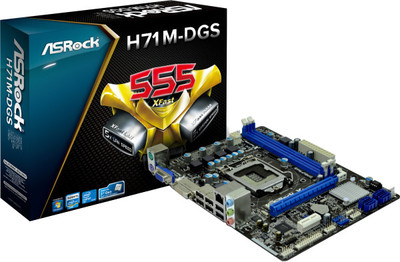

| Model ID | H71M-DGS |
| Memory | |
|---|---|
| Buffered Memory | Unbuffered |
| Memory Configuration | 16 DDR3 Dual Channel DIMM |
| Memory Frequency | 1066 MHz, 1333 MHz, 1600 MHz |
| Number of Memory Slots | 2 Slots |
| ECC Support | Non-ECC |
| Internal I/O Headers | |
|---|---|
| Front Panel Headers | 1 |
| Fan Headers | 1 (Processor Fan Headers), 1 (System Fan Headers) |
| ATX Power Connectors | 1 (24 Pin ATX Power Connectors) |
| USB 2.0 Headers | 2 |
| SATA 3 Gb/s Headers | 4 |
| Other Connectors | 1 x 4-pin 12 V Power Connector, Power Fan Connector |
| Dimensions | |
|---|---|
| Dimensions | 226.06 x 172.72 mm |
| Graphics | |
|---|---|
| Integrated Graphics card | Yes |
| General Features | |
|---|---|
| OS Support | 7 (64-bit), Vista (64-bit), Windows: XP (64-bit), 8 (64-bit) |
| Hardware Monitoring | CPU Temperature Sensing, Chassis Temperature Sensing, CPU/Chassis/Power Fan Tachometer, CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-adjust by CPU Temperature), CPU/Chassis Fan Multi-speed Control, Voltage Monitoring: +12 V, +5 V, +3.3 V, CPU Vcore |
| Support CDs | Drivers, Utilities |
| Advanced Features | ASRock Extreme Tuning Utility (AXTU), ASRock Instant Boot, ASRock Instant Flash, ASRock APP Charger, ASRock Dehumidifier Function, Hybrid Booster, ASRock U-COP, Boot Failure Guard (B.F.G.), Combo Cooler Option (C.C.O.) |
| Advanced Technologies | Supports Intel Turbo Boost 2.0 Technology, Supports Intel K-series Unlocked CPU, Supports Hyper-threading Technology, Intel Clear Video HD Technology, Supports Intel Rapid Start Technology and Smart Connect Technology, XFast 555 Technology: XFast RAM/LAN/USB |
| BIOS | 32 Mb AMI UEFI Legal BIOS with GUI Support, Supports Plug and Play, ACPI 1.1 Compliance Wake Up Events, Supports Jumper free, SMBIOS 2.3.1 Support, IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage Multi-adjustment |
| Bundled Software | Anti-virus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Creative Sound Blaster X-Fi MB - Trial, ASRock MAGIX Multimedia Suite - OEM |
| Features | Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video 2.0, Supports D-Sub with Maximum Resolution Upto 2048 x 1536 @ 75Hz, Supports HDCP Function with DVI Port, DirectX 11 with Intel Ivy Bridge CPU, DirectX 10.1 with Intel Sandy Bridge CPU, HD Audio Jack: Line in/Front Speaker/Microphone, CE, ErP/EuP Ready (ErP/EuP Ready Power Supply is Required), Intel Insider, Intel Advanced Vector Extensions (AVX) with Intel Sandy Bridge CPU, Maximum Shared Memory 1760 MB with Intel Ivy Bridge CPU, Maximum Shared Memory 1759 MB with Intel Sandy Bridge CPU, Intel HD Graphics 2000/3000, Pixel Shader 5.0, Dual VGA Output: Support DVI-D and D-Sub ports by Independent Display Controllers, Supports DVI with Maximum Resolution Upto 1920 x 1200 @ 60Hz, Pixel Shader 4.1, Supports Full HD 1080p Blu-ray (BD)/HD-DVD Playback with DVI Port, WHQL, Solid Capacitor for CPU Power, Intel InTru 3D, Intel HD Graphics 2500/4000 with Intel Ivy Bridge CPU, Certification: FCC |
| Audio | |
|---|---|
| Audio Channels | 5.1 |
| Audio Codec | Realtek ALC662 |
| Audio Features | High Definition Audio |
| Expansion Slots | |
|---|---|
| PCIe x16 Slots, Generation | 3.0, 1 |
| PCIe x1 Slots, Generation | 1, 2.0 |
| Essentials | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset | Intel H61 |
| Compatible Processors | Intel 2nd Generation Core i7 Processor, Intel 2nd Generation Core i5 Processor, Intel Xeon Processor, Intel 3rd Generation Core i7 Processor, Intel 3rd Generation Core i3 Processor, Intel Celeron Processor, Intel 2nd Generation Core i3 Processor, Intel Pentium Processor, Intel 3rd Generation Core i5 Processor |
| Form Factor | Micro-ATX |
| Socket Type | LGA 1155 |
Please Note: All products sold on Flipkart are brand new and 100% genuine
Manoranjan Panigrahi
Feb 18, 2014
Cheapest 3rd generation Intel Motherboard you can buy!
'Top Reviews' lists the most relevant product reviews only. Show ALL instead?
Expand all ReviewsManoranjan Panigrahi
Feb 18, 2014
Cheapest 3rd generation Intel Motherboard you can buy!
A very nice motheboard. Has a lot of protection features and some mild overclocking abilities too! Intel G2020 runs pretty smooth with it and no problems whatsoever. It has a good CPU fan control and hence the entire system runs pretty much noiseless.
