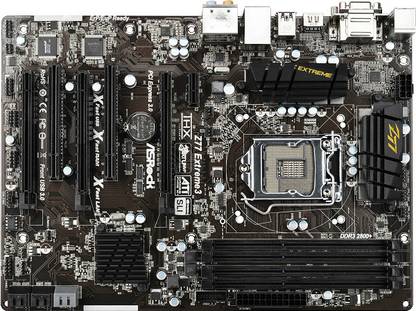

ASRock Z77 Extreme 3 LGA 1155Socket ATX Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Warranty

Customer Contacts Digicare for Warranty

Highlights

Data Rate DDR3
Maximum RAM Capacity 32 GB
Form Factor: ATX

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	4
USB 3.0 Ports, Controller	2
HDMI Ports	1
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	6
RJ-45 Ethernet Jacks	1
PS/2	1
Other Ports	1 x DVI-D Port

In The Box

Sales Package

1 x ASRock SLI_Bridge_2S Card, Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables

General Features

Hardware Monitoring	CPU Temperature Sensing, Chassis Temperature Sensing, CPU/Chassis/Power Fan Tachometer, CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-adjust by CPU Temperature), CPU/Chassis Fan Multi-speed Control, Voltage Monitoring: +12 V, +5 V, +3.3 V, CPU Vcore
Support CDs	Drivers, Utilities, CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite - OEM, AntiVirus Software (Trial Version)
Bundled Software	ASRock MAGIX Multimedia Suite
OS Support	Windows XP and Above
BIOS	64 MB AMI UEFI Legal BIOS with GUI Support, Supports Plug and Play, ACPI 1.1 Compliance Wake Up Events, Supports Jumperfree, SMBIOS 2.3.1 Support, CPU Core, IGPU, DRAM, PLL, VTT, VCCSA Voltage Multi-adjustment
Features	ASRock Extreme Tuning Utility (AXTU), ASRock Instant Boot, ASRock Instant Flash, ASRock APP Charger, ASRock XFast USB, ASRock XFast LAN, ASRock XFast RAM, ASRock OMG (Online Management Guard), ASRock Internet Flash, Combo Cooler Option (C.C.O), Good Night LED, ASRock Crashless BIOS, ASRock Dehumidifier Function, ASRock On/Off Play Technology, Boot Failure Guard (B.F.G.), ASRock U-COP, CPU Frequency Stepless Control, Multi VGA Output options: D-Sub, DVI-D and HDMI, Supports AMD Quad CrossFireX, CrossFireX, NVIDIA Quad SLI, SLI, ASRock Interactive UEFI, ASRock UEFI System Browser, Lucid Virtu Universal MVP, Supports ASRock XFast 555
Advanced Technologies	Intel Turbo Boost 2.0 Technology, Intel K-series Unlocked CPU, Hyper-threading Technology, Intel Extreme Memory Profile (XMP) 1.3/1.2, 8 + 3 Power Phase Design, Intel Rapid Start Technology and Smart Connect Technology, Lucid Virtu Universal MVP
Advanced Features	Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video 2.0, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 2500/4000 with Intel Ivy Bridge CPU, Intel HD Graphics 2000/3000, Intel Advanced Vector Extensions (AVX) with Intel Sandy Bridge CPU, HDCP Function with HDMI Port, Full HD 1080p Blu-ray (BD) / HD-DVD playback with HDMI Port, Pixel Shader 5.0, DirectX 11 with Intel Ivy Bridge CPU, Pixel Shader 4.1, DirectX 10.1 with Intel Sandy Bridge CPU, Max. Shared Memory 1760MB with Intel Ivy Bridge CPU, Max. Shared Memory 1759MB with Intel Sandy Bridge CPU, Certifications: FCC, CE, WHQL, ErP/EuP Ready (ErP/EuP Ready Power Supply is Required)

Warranty

Domestic Term	3 Years ASRock India Warranty and Free Transit Insurance.
Warranty Summary	Customer Contacts Digicare for Warranty
Covered in Warranty	Manufacturing Defects are Covered
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Physical Damage
Warranty Service Type	Carry In

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 GB DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 1333 MHz, 1600 MHz, 1866 (O.C) MHz, 2133 (O.C) MHz, 2400 (O.C) MHz, 2800 (O.C) MHz
ECC Support	Non-ECC
Buffered Memory	No

Limitations

Actual Memory Size may be Less than 4GB for the Reservation for System Usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is No Such Limitation

Essentials

Form Factor	ATX
Socket Type	LGA 1155
Compatible Processors	Intel 3rd Generation Core i7 Processor, Intel 3rd Generation Core i5 Processor, Intel 3rd Generation Core i3 Processor, Intel 2nd Generation Core i7 Processor, Intel 2nd Generation Core i5 Processor, Intel 2nd Generation Core i3 Processor
Chipset Manufacturer	Intel

Graphics

Integrated Graphics card

Storage

SATA 6 Gb/s	Intel Z77 Chipset
RAID Controller	Intel Z77 Chipset
RAID Configurations	0, 1, 5, 10

Expansion Slots

PCI Slots	2
PCIe x1 Slots, Generation	1, 2
PCIe x16 Slots, Generation	2, 3

General

Brand	ASRock
Model ID	Z77 Extreme 3
Key Features	ATX Form Factor, LGA 1155 Socket Type, Intel Z77 Chipset, RAID Controller: Intel Z77 Chipset, 4 Memory Slots, Maximum 32 GB DDR3, Dual Channel DIMM Memory

Connectivity

Ethernet Controller	Realtek RTL8111E
Ethernet Features	10/100/1000 Mbps, Supports Wake-on LAN, Supports LAN Cable Detection, Supports Energy Efficient Ethernet 802.3az, Supports PXE
Number of Com Ports	1

Audio

Audio Codec	Realtek ALC892
Audio Channels	7.1
Audio Features	Blu-ray Audio, THX TruStudio Supports

Internal I/o Headers

SATA 6 Gb/s Headers	2
USB 2.0 Headers	2
USB 3.0 Headers	1
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	2 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x IR Header, 1 x CIR Header, 1 x HDMI S/PDIF Header, 1 x Power LED Header, Front Panel Audio Connector, Power Fan Connector (3-pin), 1 x Power LED Header

Ratings & Reviews

4.7

★

10 Ratings &

4 Reviews

5★
4★
3★
2★
1★

Great start for your next awesome build!

I got this for my new build,the processor Im using is an i5-3570k.I have a stable overclock of 4.2ghz.It has everything you need for a z77 build,It is a no-nonsense board.It has all the essentials: SATA 6gbps,PCIe 3.0,SLI and crossfireX ready.8+3 phase design,supports XMP ram profile,supports lucidlogix MVP..

PROS:
-value for money
-has all the essentials
-SLI & CrossfireX ready
-usb 3.0 header
-black PCB looks nice
-UEFI bios is also cool and easy to use
-bundled softwares are great espe...

Sooraj S

Certified Buyer

Jul, 2013

Permalink

Report Abuse

Best and the most value for money SLI/CROSSFIRE MOBO

I will be getting this very soon with an i7 3770. This is the cheapest motherboard which offers SLI/CROSSFIRE. It has a really long list of features including Lucida! It has brilliant spacing and can fit a Cooler Master Hyper 212 Evo cooler without using up the RAM space! This supports HD audio too. This comes with 2 SATA cables and an SLI bridge. It has fantastic customizing options, and i have heard that ASRock's Bios is one of the most flexible one's! If your looking for an entry level hig...

Vineet Bhombore

May, 2013

Permalink

Report Abuse

Gaming Motherboard

Bought this from flipkart as a part of my gaming rig setup. Using it for about 2 months now.
This board will give you a good headstart among others for its gaming performance.
It supports SLI configuration too. USB 3.0 and other new features. The BIOS screen is really good.

Piyush Kumar Singh

Certified Buyer, Bangalore

Jan, 2014

Permalink

Report Abuse

Good Product

Bought this mobo just 1 month back and I am facing frequent restart problem from the day one. Not sure who to contact as there is no information on flipkart about Asrock India Service center.

Mobo has awesome features and the bios GUI looks good. Some of the software which comes with the mobo are awesome.

Amit Patekar

Certified Buyer, Pune

Sep, 2013

Permalink

Report Abuse
