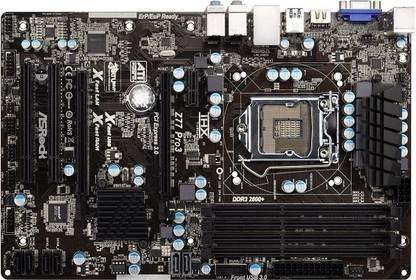

ASRock Z77 Pro 3 LGA 1155Socket ATX Chipset DDR3 Motherboard

ASRock Z77 Pro 3 LGA 1155Socket ATX Chipset DDR3 Motherboard

Price: Not Available
Currently Unavailable
Warranty
Customer Contacts Digicare for Warranty
Highlights
  • Data Rate DDR3
  • Maximum RAM Capacity 32 GB
  • Form Factor: ATX
Specifications
Back Panel Ports
USB 2.0 Ports, Controller
  • 4
USB 3.0 Ports, Controller
  • 2
HDMI Ports
  • 1
VGA/D Sub Ports
  • 1
Audio I/O Channels
  • 6
RJ-45 Ethernet Jacks
  • 1
PS/2
  • 1
In The Box
Sales Package
  • Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables
General Features
Hardware Monitoring
  • CPU Temperature Sensing, Chassis Temperature Sensing, CPU/Chassis/Power Fan Tachometer, CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-adjust by CPU Temperature), CPU/Chassis Fan Multi-speed Control, Voltage Monitoring: +12 V, +5 V, +3.3 V, CPU Vcore
Support CDs
  • Drivers, Utilities, CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite - OEM, AntiVirus Software (Trial Version)
Bundled Software
  • ASRock MAGIX Multimedia Suite
OS Support
  • Windows XP and Above
BIOS
  • 64 MB AMI UEFI Legal BIOS with GUI Support, Supports Plug and Play, ACPI 1.1 Compliance Wake Up Events, Supports Jumperfree, SMBIOS 2.3.1 Support, CPU Core, IGPU, DRAM, PLL, VTT, VCCSA Voltage Multi-adjustment
Features
  • ASRock Extreme Tuning Utility (AXTU), ASRock Instant Boot, ASRock Instant Flash, ASRock APP Charger, ASRock XFast USB, ASRock XFast LAN, ASRock XFast RAM, ASRock OMG (Online Management Guard), ASRock Internet Flash, Combo Cooler Option (C.C.O), Good Night LED, ASRock Crashless BIOS, ASRock Dehumidifier Function, ASRock No-K OC Technology, ASRock On/Off Play Technology, Lucid Virtu Universal MVP, Boot Failure Guard (B.F.G.), ASRock U-COP, CPU Frequency Stepless Control, Dual VGA Output Options : D-Sub, HDMI, Solid Capacitor Design, Supports AMD Quad CrossFireX, CrossFireX, Supports ASRock XFast
Advanced Technologies
  • Intel Turbo Boost 2.0 Technology, Intel K-series Unlocked CPU, Hyper-threading Technology, Intel Extreme Memory Profile (XMP) 1.3/1.2, 4 + 1 Power Phase Design, Intel Rapid Start Technology and Smart Connect Technology
Advanced Features
  • Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video 2.0, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 2500/4000 with Intel Ivy Bridge CPU, Intel HD Graphics 2000/3000, Intel Advanced Vector Extensions (AVX) with Intel Sandy Bridge CPU, HDCP Function with HDMI Port, Full HD 1080p Blu-ray (BD) / HD-DVD playback with HDMI Port, Pixel Shader 5.0, DirectX 11 with Intel Ivy Bridge CPU, Pixel Shader 4.1, DirectX 10.1 with Intel Sandy Bridge CPU, Max. Shared Memory 1760MB with Intel Ivy Bridge CPU., Max. Shared Memory 1759MB with Intel Sandy Bridge CPU, Certifications: FCC, CE, WHQL, ErP/EuP Ready (ErP/EuP Ready Power Supply is Required)
Warranty
Domestic Term
  • 3 Years ASRock India Warranty and Free Transit Insurance.
Warranty Summary
  • Customer Contacts Digicare for Warranty
Covered in Warranty
  • Manufacturing Defects are Covered
Not Covered in Warranty
  • Forceful Tampering, Burnt, Mishandling and Physical Damage
Warranty Service Type
  • Carry In
Memory
Number of Memory Slots
  • 4 Slots
Memory Configuration
  • 32 GB DDR3 Dual Channel DIMM
Memory Frequency
  • 1066 MHz, 1333 MHz, 1600 MHz, 1866 (O.C) MHz, 2133 (O.C) MHz, 2400 (O.C) MHz, 2800 (O.C) MHz
ECC Support
  • Non-ECC
Buffered Memory
  • No
Limitations
  • Actual Memory Size may be Less than 4GB for the Reservation for System Usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is No Such Limitation
Essentials
Form Factor
  • ATX
Socket Type
  • LGA 1155
Compatible Processors
  • Intel 3rd Generation Core i7 Processor, Intel 3rd Generation Core i5 Processor, Intel 3rd Generation Core i3 Processor, Intel 2nd Generation Core i7 Processor, Intel 2nd Generation Core i5 Processor, Intel 2nd Generation Core i3 Processor
Chipset Manufacturer
  • Intel
Graphics
Integrated Graphics card
  • Yes
Storage
SATA 6 Gb/s
  • Intel Z77 Chipset
RAID Controller
  • Intel Z77 Chipset
RAID Configurations
  • 0, 1, 5, 10
Expansion Slots
PCI Slots
  • 2
PCIe x1 Slots, Generation
  • 1, 2
PCIe x16 Slots, Generation
  • 1, 3
General
Brand
  • ASRock
Model ID
  • Z77 Pro 3
Key Features
  • ATX Form Factor, LGA 1155 Socket Type, Intel Z77 Chipset, RAID Controller: Intel Z77 Chipset, 4 Memory Slots, Maximum 32 GB DDR3, Dual Channel DIMM Memory
Connectivity
Ethernet Controller
  • Realtek RTL8111E
Ethernet Features
  • 10/100/1000 Mbps, Supports Wake-on LAN, Supports LAN Cable Detection, Supports Energy Efficient Ethernet 802.3az, Supports PXE
Number of Com Ports
  • 1
Audio
Audio Codec
  • Realtek ALC892
Audio Channels
  • 7.1
Audio Features
  • Blu-ray Audio, THX TruStudio Supports
Internal I/o Headers
SATA 6 Gb/s Headers
  • 2
USB 2.0 Headers
  • 3
USB 3.0 Headers
  • 1
ATX Power Connectors
  • 1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers
  • 2 (Processor Fan Headers), 2 (System Fan Headers)
Front Panel Headers
  • 1
Other Connectors
  • 1 x IR Header, 1 x CIR Header, 1 x HDMI S/PDIF Header, 1 x Power LED Header, Front Panel Audio Connector, Power Fan Connector (3-pin), 1 x Power LED Header
Ratings & Reviews
4.7
22 Ratings &
10 Reviews
  • 5
  • 4
  • 3
  • 2
  • 1
  • 18
  • 3
  • 0
  • 0
  • 1
5

Amazing motherboard!!! I am more than HAPPY

I hooked up ASRock Z77 Pro3 with the new i3-3210, corsair vengeance 4GB 1600 and it is running like bullet with the Win8 WMC x64 OS.
I never expected this kind of performance with this MBo. I bought this only because of the features, z77 and obviously the price tag.
BIOS is too good. Mine came with the version P1.60 which i flashed and upgrade it to P1.90
Yeah! the MBo software support cd didn't match win8 x64, so i have to download all the drivers like realtek, vga, tweak tune up utilities p...
READ MORE

Prakashit Kumar

Certified Buyer

Feb, 2013

1
0
Report Abuse
5

Works as it should !

The rest of my specs: Core i5 2500K|| 8GB DDRIII 1600 MHz RAM||CORSAIR GS600|| Zotac GTX560 Ti|| Samsung 2233sw|| Razor Abyssus mouse|| Cooler Master Hyper 212 Plus CPU Cooler
Prior to this, I owned the Gigabyte GA-P67-DS3-B3. But on developing a fault in it, such that it would sometimes just refuse to start, I tried very hard to get it replaced but because it worked sometimes, I was returned the same board. After getting fed up, I got this board. Since I have used ASRock products before I kn...
READ MORE

Saurabh Sharma

Certified Buyer

Dec, 2012

1
0
Report Abuse
5

Best Motherboard by AsRock------------

Go For ---------------Buy--From Flipkart
This Motherboard is awesome------------
and----its Work Great i am Impress
and I suggest all friends if u want buy Z77 series Mobo This Best than Asus, Msi,

and Flipkart Service ---------Ohhhh my God -----------awesome-----------Rock
READ MORE

Dinesh Patel

Certified Buyer, Ahmedabad

Jul, 2013

0
0
Report Abuse
5

good for newly build a gaming desktop

i brought this 4-5 day ago and i am very happy with it at this price asRock so don't see any other motherboard if u r looking to build a gaming pc with a lga 1155 socket at this price this board got a lots of good review on some top hardware review sites
READ MORE

Qutab Patnaik

Jul, 2013

0
0
Report Abuse
5

BEST FOR TIGHT BUDGET

this mobo comes with lucid virtu mvp which is the best with z77 chipset...
got it in 4 days and very pleased with the performance of the board..
played almost all the games on hd, like nfs run,crisis 3,bf3. run very smooth like a pro, my rig i3 3220 (flipkart), mobo this one, and msi r7750 oc edition (flipkart)...
over all nice board for me.
READ MORE

Rudraksh Rana

Certified Buyer

Apr, 2013

0
0
Report Abuse
5

Amazing - Flipkart and the board

I thought of building a gaming rig and wanted an 'extreme' series motherboard but bought this from flipkart due to economic reasons.
The first board somehow did not work and was replaced within 2 days by flipkart personnel.

This support 7.1 setup which is very rare for any board under 10k. Also, has PCI-E 3 slot and 2 USB 3.0 which is awesome.

Asrock BIOS is an eyecandy. Beats the crap out of Intel and asus board at this range.
Looks 10 times better than any board at 10k range and real easy...
READ MORE

Anirudh Ramesh

Certified Buyer

Jan, 2013

0
1
Report Abuse
4

bang for the buck

i just bought this mobo cuz i m short of money for high end mobos... this is the cheapest z77 mobo wen i bought it (rs 7655)... i m not into sli or xfire, so its more than enough for me...

pros: 1)have 5 fan header..... 2 proccy fans + 3 cabby fans... i connected 4 cabby fans+1proccy fan...
cons: 1)doesnt have premium look...
2)sata ports are not connected via side so cable management pain in the ass...
pcie 3.0 card slot comes over sata 6.0gbps ports... its not easy...
READ MORE

Aneesh C Philip

Certified Buyer

Jan, 2013

0
0
Report Abuse
5

Best in mid-range

I was planning to get high-end board for my i5 3570k, but after bulding cpu and gpu my budget faced constrains, so after lots of googling i found this one.Flipkart delivered me with in 2 business days (awesome job team), i plugged my 3570k and so far so good.The Bios is real eye candy, u may have to reinstall 7 after booting up with new config(if you are single card user install it in PCI-2 slot(33 in lay out), ).I just started with basics and lots to learn the full power of this mobo, do ...
READ MORE

Dibin

Certified Buyer

Feb, 2013

1
0
Report Abuse
5

AWESOME PRODUCT!!!

just don't think anything before buying this product. its great quality product from Asrock.just go for it if you are planning to overclock your cpu... i use it with i5 3470 and gtx 650ti and 8gb of ddr3 1600mhz ram.
READ MORE

Amritesh Mishra

Certified Buyer

Apr, 2013

0
0
Report Abuse
4

Delivered on time!

Bought this to compensate the loss of my previous mobo Intel P67...Still going through all the nooks and crannies of the software's bundled along with it..!!
Much better than my previous board so a thumbs up there!
Configured it with my i5-2500k and zotac 660ti amp.
stable overclock at 4.2ghz so far.
Overall: 7/10.
READ MORE

Geetartha Kaustav

Certified Buyer

Dec, 2012

0
0
Report Abuse
+
