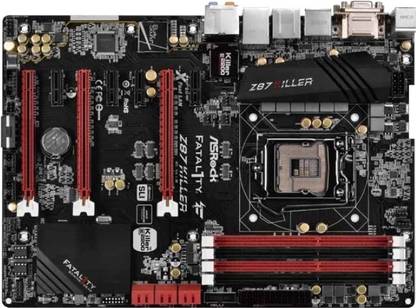

ASRock Z87 Killer Motherboard

Price: Not Available

Currently Unavailable

Warranty

3 Years ASRock India Warranty and Free Transit Insurance

Highlights

Intel Z87
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: ATX

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	3
USB 3.0 Ports, Controller	4
HDMI Ports	2
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	6
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	1
Other Ports	1 x Fatal1ty Mouse Port (USB 2.0)

In The Box

Sales Package

Motherboard, Quick Installation Guide, Support CD, I/O Shield, SATA Data Cables

General Features

Overclocking	Supports ASRock BCLK Full-range Overclocking
Hardware Monitoring	CPU/Chassis Temperature Sensing, CPU/Chassis/Power Fan Tachometer, CPU/Chassis Quiet Fan (Auto Adjust Fan Speed by CPU Temperature), CPU/Chassis Fan Multi-speed Control, Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore Voltage
Support CDs	Drivers, Utilities, Start8 (30 Days Trial), XSplit, Killer Network Manager
Bundled Software	AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
OS Support	Windows: 7, 8, 8.1
BIOS	2 x 64Mb AMI UEFI Legal BIOS with Multilingual GUI Support (1 x Main BIOS and 1 x Backup BIOS), Supports Secure Backup UEFI Technology, ACPI 1.1 Compliant Wake Up Events, SMBIOS 2.3.1 Support, CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment
Features	CE, Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, ErP/EuP Ready (ErP/EuP Ready Power Supply is Required), DirectX 11.1, Intel InTruTM 3D, Premium Gold Capacitor Design, Certification: FCC, Triple Monitor, WHQL, Pixel Shader 5.0
Advanced Technologies	Intel Turbo Boost 2.0 Technology, Intel Clear Video HD Technology, HDMI Technology with Max Resolution upto 4096 x 2304 at 24 Hz, Direct Drive Technology, Intel Rapid Storage Technology 12 and Intel Smart Response Technology
Advanced Features	ASRock F-Stream, ASRock Instant Flash, ASRock APP Charger, ASRock XFast USB, ASRock XFast RAM, ASRock Crashless BIOS, ASRock OMG (Online Management Guard), ASRock Internet Flash, ASRock UEFI System Browser, ASRock UEFI Tech Service, ASRock Dehumidifier, ASRock Easy RAID Installer, ASRock Easy Driver Installer, ASRock Interactive UEFI, ASRock Fast Boot, ASRock Restart to UEFI, ASRock USB Key, ASRock Key Master, ASRock FAN-Tastic Tuning, Hybrid Booster: CPU Frequency Stepless Control, ASRock U-COP, Boot Failure Guard (B.F.G.), Good Night LED

Warranty

Domestic Term	3 Years ASRock India Warranty and Free Transit Insurance.
Warranty Summary	3 Years ASRock India Warranty and Free Transit Insurance
Warranty Service Type	Carry In

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 2800(OC) MHz, 1333 MHz, 2133(OC) MHz, 3050+(OC) MHz, 1600 MHz, 1866(OC) MHz, 2400(OC) MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Limitations

Intel HD Graphics Built-in Visuals and the VGA Outputs can be Supported Only with Processors Which are GPU Integrated

Essentials

Form Factor	ATX
Socket Type	LGA 1150
Compatible Processors	Intel 4th Generation Core i5 Processor, Intel Celeron Processor, Intel 4th Generation Core i7 Processor, Intel Pentium Processor, Intel 4th Generation Core i3 Processor
Chipset	Intel Z87
Chipset Manufacturer	Intel

Graphics

Integrated Graphics card	Yes
Multi GPU Support	Yes, AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX, NVIDIA Quad SLI and SLI

Storage

RAID Configurations

0, 1, 5, 10

Expansion Slots

PCIe x1 Slots, Generation	4, 2
PCIe x16 Slots, Generation	3, 3

General

Brand	ASRock
Model ID	Z87 Killer
Key Features	Maximum 32 GB DDR3, ATX Form Factor, Intel Z87 Chipset, 4 Memory Slots, 2 HDMI Port, LGA 1150 Socket Type, Dual Channel DIMM Memory

Connectivity

Ethernet Controller	Qualcomm Atheros Killer E2200 Series
Ethernet Features	1 x PCIE Gigabit LAN 10/100/1000 Mb/s, Supports Wake-On-LAN, Energy Efficient Ethernet 802.3az, Supports PXE
Number of Com Ports	1

Audio

Audio Codec	Realtek ALC1150
Audio Channels	7.1
Audio Features	HD Audio with Content Protection, Premium Blu-ray Audio Support, Supports Purity Sound, Supports DTS Connect

Internal I/o Headers

SATA 6 Gb/s Headers	6
USB 2.0 Headers	2
USB 3.0 Headers	1
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	2 (Processor Fan Headers), 3 (System Fan Headers)
Other Connectors	1 x Front Panel Audio Connector, 1 x SLI/XFire Power Connector, 1 x Power Fan Connector (3-pin), 1 x IR Header, 1 x Power LED Header

Ratings & Reviews

4.6

★

10 Ratings &

3 Reviews

5★
4★
3★
2★
1★

Awesome motherboard and price less but perform high

OMG!! I cant believe this motherboard perform its really awesome and high perform.
Last month my friend talking about ASROCK motherboard at the first time I am here ASROCK motherboard then I search ASROCK at the time every one said if you want a gaming PC don't think other one ASROCK is best.
then I buy this motherboard .
The gaming perform is really amazing , also the sound out put , and data transfer speed and more every feature are show high perform.
This motherboard is a killer motherboa...

Arun M R

Certified Buyer, Kollam

May, 2014

Permalink

Report Abuse

Happy Gaming the best out there

the Fatal1ty Z87 Killer motherboard is the first Killer LAN-integrated motherboard.What makes ASRock Fatal1ty Z87 Killer Series motherboards so special is that it adopts Killer E2200 Intelligent Networking Platform, which boosts the performance of online games, high quality streaming media and other time sensitive UDP (User Datagram Protocol) based applications up to 5 times! Experiments at our lab have proven that Killer LAN is especially good at reducing the latency in online games, for ins...

Amal S Kumar

Certified Buyer, Trivandrum

Jan, 2014

Permalink

Report Abuse

Fatal1ty

Fatal1ty series is always a special one, as it brings some new features. This motherboard with its awesome price, make a real killer deal and also includes a gift voucher for $25 inside.

Good Job by ASrock

Ishan Sharma

Certified Buyer, Mohali

Dec, 2013

Permalink

Report Abuse
