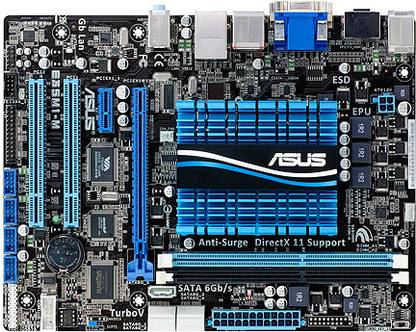

ASUS E35M1-M E350 APUSocket Micro-ATX AMD FCH A50 Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Asus guarantees that the Asus Device that you have purchased are free from defects in materials or workmanship under normal use during the Limited Warranty Period. The Limited Warranty Period starts from the date of purchase. Your sales receipt, showing the date of purchase, is the proof of your purchase date. You may be required by your Purchase Site or Asus Authorized Networking products to present the proof of purchase as a condition of receiving warranty service. You are entitled to a hardware warranty service if a repair is required within the Limited Warranty Period.Know More

Highlights

AMD FCH A50
Data Rate DDR3
Form Factor: Micro-ATX

Specifications

In The Box

Sales Package

User's manual I/O Shield 2 x SATA 6Gb/s cable(s)

General

Brand	ASUS
Model ID	E35M1-M

Essentials

Form Factor	Micro-ATX
Socket Type	E350 APU
Chipset	AMD FCH A50, Hudson M1

Memory

Number of Memory Slots	2 Slots
Memory Configuration	DDR3 Dual Channel
Memory Frequency	1066 MHz
ECC Support	No
Buffered Memory	Unbuffered

Graphics

Integrated Graphics card	ATI Radeon HD 6310 GPU
Multi GPU Support	No

Audio

Audio Codec	Realtek ALC 887-VD2
Audio Channels	8
Audio Features	Supports : Multi-streaming, Front Panel Jack-retasking, Anti-pop Function

Connectivity

Ethernet Controller

Realtek 8111E Gigabit LAN controller featuring AI NET2

Expansion Slots

PCI Slots	2
PCIe x1 Slots, Generation	1, 2
PCIe x16 Slots, Generation	1, 2

Internal I/o Headers

SATA 6 Gb/s Headers	5
USB 2.0 Headers	4
ATX Power Connectors	1 (24 Pin ATX Power Connectors)
Fan Headers	1 (System Fan Headers)
Other Connectors	1 x S/PDIF Out Headers, 1 x 4-pin ATX 12V Power Connector, 1 x Front Panel Audio Connector, 1 x System Panel, 1 x Turbo Key II Switch

Back Panel Ports

USB 2.0 Ports, Controller	6
eSATA Ports, Controller	1
HDMI Ports	1
DVI Ports	1
VGA/D Sub Ports	1
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	1

General Features

Support CDs	Drivers, Anti-virus software (OEM version),ASUS Update,ASUS Utilities
BIOS	32 Mb Flash ROM , UEFI BIOS, PnP, DMI 2.0, WfM 2.0, ACPI 2.0a, SM BIOS 2.5

Dimensions

183 x 244 mm

Warranty

Domestic Term	3 Years ASUS India Warranty and Free Transit Insurance.
Warranty Summary	Asus guarantees that the Asus Device that you have purchased are free from defects in materials or workmanship under normal use during the Limited Warranty Period. The Limited Warranty Period starts from the date of purchase. Your sales receipt, showing the date of purchase, is the proof of your purchase date. You may be required by your Purchase Site or Asus Authorized Networking products to present the proof of purchase as a condition of receiving warranty service. You are entitled to a hardware warranty service if a repair is required within the Limited Warranty Period.
Covered in Warranty	During the Limited Warranty Period, Asus will, at its sole discretion, repair or replace any defective component. All spare-parts or module removed under this Limited Warranty become the property of Asus.
Not Covered in Warranty	Warranty invalid if damage/dysfunction caused by improper handling/usage, destruction. Warranty invalid if serial label is removed, broken Warranty invalid if disassembly by end-user or non-ASUS-authorized repair centres. This Limited Warranty does not cover any software applications or programs; non-Asus products or non-Asus branded peripherals.
Warranty Service Type	On Site (Based on the lO.Cation)
