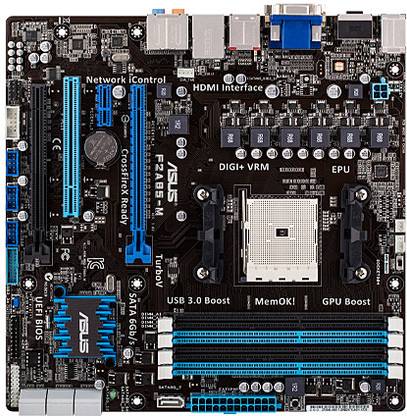

ASUS F2A85-M Motherboard

Price: Not Available

Currently Unavailable

Highlights

Specifications

In The Box

Sales Package

General

Brand	ASUS
Model ID	F2A85-M

Essentials

Form Factor	Micro-ATX
Socket Type	FM2
Compatible Processors	AMD A8-5500, AMD A6-5400K, AMD A4-5300B, AMD A8-5600K, AMD A10-5800B, AMD A10-5700, AMD AthlonX4 740, AMD A4-5300, AMD AthlonX4 730, AMD A6-5400B, AMD A8-5500B, AMD AthlonX4 750K, AMD A10-5800K
Chipset	AMD A85X
Chipset Manufacturer	AMD

Memory

Number of Memory Slots	4 Slots
Memory Configuration	64 DDR3 Dual Channel DIMM
Memory Frequency	1866 MHz, 2000(O.C) MHz, 2400(O.C) MHz, 1066 MHz, 2250(O.C) MHz, 2133(O.C) MHz, 1600 MHz, 1333 MHz, 2200(O.C) MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

SATA 6 Gb/s	AMD A85X FCH
RAID Configurations	0, 1, 5, 10, JBOD

Graphics

Integrated Graphics card	AMD Radeon HD 7000 Series
Multi GPU Support	Yes, Supports AMD CrossFireX Technology

Audio

Audio Codec	Realtek ALC887
Audio Channels	8

Connectivity

Ethernet Controller	Realtek 8111F
Ethernet Features	1 x Gigabit LAN Controller

Expansion Slots

Internal I/o Headers

SATA 6 Gb/s Headers	7
USB 2.0 Headers	3
USB 3.0 Headers	1
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	2
Other Connectors	1 x Power Fan Connector, 1 x 24-pin EATX Power Connector, 1 x GPU Boost Switch, 1 x S/PDIF Out Header, 1 x 4-pin ATX 12V Power Connector

Back Panel Ports

USB 2.0 Ports, Controller	4
USB 3.0 Ports, Controller	2
eSATA Ports, Controller	1
HDMI Ports	1
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	6
Optical S/PDIF Ports and S/PDIF Out ports	1 (S/PDIF Out Ports)
RJ-45 Ethernet Jacks	1
PS/2	1

General Features

Overclocking	ASUS C.P.R. (CPU Parameter Recall)
Support CDs	Drivers, ASUS Utilities, ASUS Update, Anti-virus Software (OEM Version)
OS Support	Windows XP and Above
BIOS	64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) Memory Information
Advanced Technologies	DIGI+ VRM Digital Power Design, Remote GO!, USB 3.0 Boost, Native SATA 6Gb/s Support, Network iContro
Advanced Features	MemOK, AI Suite II, ESD, ASUS Anti-Surge Protection, GPU Boost, ASUS TurboV

Limitations

Due to OS limitation, When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows OS when you want to install 4GB or more memory on the Motherboard
