ASUS M5A97 Motherboard is out of stock. Customers interested in it also viewed these products.
Add Another Item
Add Another Item
Add Another Item
Add Another Item
Q. What is the service type ?
A. On Site (Based on the location)
Q. What is the type of Warranty ?
A. Limited - Part and Labour are covered
Q. What is covered in Warranty ?
A. During the Limited Warranty Period, Asus will, at its sole discretion, repair or replace any defective component. All spare-parts or module re ...moremoved under this limited Warranty become the property of Asus. less
Q. What is not covered in Warranty ?
A. Warranty invalid if damage/dysfunction caused by improper handling/usage, destruction. Warranty invalid if serial label is removed, broken War ...moreranty invalid if disassembly by end-user or non-ASUS-authorized repair centres. This Limited Warranty does not cover any software applications or programs non-Asus products or non-Asus branded peripherals. less
|30 days from delivery||Damaged, Defective, Item not as described||Replacement|
|30 days from delivery||Exchange for colors and size, Does not fit||Exchange|
|10 days from delivery||Damaged, Item not as described||Replacement|
|In The Box|
|Sales Package||User Manual, I/O Shield, 2 x SATA 6Gb/s Cable, Driver Disk, Motherboard|
|Compatible Processors||Athlon IIX2 Series Processor, Athlon IIX3 Series Processor, Athlon IIX4 Series Processor, Athlon X2 Processor, FX-4100 Processor, FX-4170 Processor, FX-6100 Processor, FX-8100 Processor, FX-8120 Series Processor, Phenom IIX2 Series Processor, Phenom IIX3 Series Processor, Phenom IIX4 Processor, Phenom IIX6 Series Processor, Sempron 140, Sempron 145, Sempron 150, Sempron 180, Phenom II X6 1100T|
|Chipset||AMD 970, AMD SB950|
|Number of Memory Slots||4 Slots|
|Memory Configuration||32 GB DDR3 Dual Channel DIMM|
|Memory Frequency||1066 MHz, 1333 MHz, 1600 MHz, 1866 MHz, 2133(O.C) MHz|
|SATA 6 Gb/s||AMD SB950|
|RAID Controller||AMD SB950|
|RAID Configurations||0, 1, 5, 10|
|Multi GPU Support||Yes, AMD Quad-GPU CrossFireX|
|Audio Codec||Realtek ALC887|
|Audio Features||High Definition Audio, Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking, ASUS Noise Filter|
|Ethernet Controller||Realtek 8111E Gigabit LAN|
|PCIe x1 Slots, Generation||2, 2.0|
|PCIe x16 Slots, Generation||2, 2.0|
|Internal I/O Headers|
|SATA 6 Gb/s Headers||6|
|USB 2.0 Headers||3|
|ATX Power Connectors||1 (8 Pin ATX 12V Power Connectors)|
|Fan Headers||1 (Processor Fan Headers), 2 (System Fan Headers)|
|Front Panel Headers||1|
|Other Connectors||1 x Power Fan Connector (1 x 3-pin), 1 x S/PDIF Out Header, 1 x 24-pin EATX Power Connector, 1 x System Panel, 1 x MemOK! Button, 1 x Clear CMOS Jumper|
|Back Panel Ports|
|USB 2.0 Ports, Controller||6, AMD SB950|
|USB 3.0 Ports, Controller||2, ASMedia|
|Audio I/O Channels||6|
|Optical S/PDIF Ports and S/PDIF Out ports||1 (Optical S/PDIF Ports)|
|RJ-45 Ethernet Jacks||1|
|Overclocking||Overclocking Protection: ASUS C.P.R.(CPU Parameter Recall)|
|Support CDs||Drivers, ASUS Utilities, ASUS Update|
|Bundled Software||Anti-virus Software (OEM Version)|
|BIOS||32 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2|
|Features||Supports AM3+ 32 nm CPU, Supports CPU up to 140 W, UEFI BIOS (EZ Mode), GreenASUS and ErP Ready, Solid Capacitor|
|Advanced Technologies||AMD Cool n Quiet Technology, Auto O.C. Tuning and Mouse-controlled UEFI BIOS on AM3+ Platform|
|Advanced Features||ASUS TPU: Auto Tuning, TurboV, ASUS EPU: EPU, ASUS Power Design: 4 +2 Phase Power Design, ASUS Exclusive Features: MemOK!, AI Suite II, Ai Charger+, ASUS UEFI BIOS EZ Mode, ASUS Quiet Thermal Solution: Stylish Fanless Design Heat-sink Solution, ASUS Fan Xpert, ASUS EZ DIY: ASUS O.C. Profile, ASUS EZ Flash 2, ASUS MyLogo 2, Multi-language BIOS, ASUS Q-Design: ASUS Q-Slot|
|External Graphics Card required (not included in the box)|
|Dimensions||305 x 229 mm|
|3 Years ASUS India Warranty and Free Transit Insurance.|
Frequently Bought Together With This Product
ordered this motherboard 5,6 days ago,got it yesterday.
installation goes pretty well.i had phenom x2 550.
cons:- am3+ (supports all old as well as upcoming amd processors)
-usb 3.0? (future of usb)
-heatsink between input/output ports and socket( provides efficient cooling)
-an epic bios (help overclocking and unlocking)
-supports 4,5 fans( more cooling)
-supports crossfirex setup (future of gfx cards?)
-supports HD audio and 6.1 systems.
-supports 32 gb dual channel ddr3 ram.
-no integrated gfx card( no vga port).
so you need to install extra graphics card.
(i dont think this is really a con. its designed for gamers and 3d designers who need future proof pc in low price range.)
if you want to design a gaming rig with amd processor,simply buy it now and dont forget to thump up my review if it helps
-thanks and regards
This one is a superb motherboard. The UEFI BIOS and the features like mouse controlled BIOS tweaking makes this an ideal mobo for the price. I was really searching for the "EVO" or "PRO" version of this mobo which has some extra ports and some extras, since those are not available here in flipkart I went for this one.
-Asus AI Suite has features like FanXpert which lets you adjust the fan speed according to your taste
-TurboVevo overclocks the configuration without any effort from the user withot losing stability. (My 1075t went 3.5Ghz and memory timings were decreased)
-6xUSB2.0( You will never run out of ports :D)
-Optical audio(I don't have one) and upto 7.1 speakers(I have 2.1)
-CrossfireX(The black one is x4 PCIe in the size of x16, so you can't SLI with this)
-Supports FX series processors.(BTW FX series processors don't perform so well. So stick with a phenom for now and pair it with a FX 2nd gen when it arrives.)
-Upto 32GB 1866Mhz RAM.(I got 8GB)
-No itegrated GPU( Yes It's a pro. Reason to buy a good GPU :D . I got a radeon 6850)
Okay let me come straight to the point. I know that this board is packed with lots of good/amazing features. I'll keep it short and precise.
> Please consider buying a bigger cabinet if you want to use this motherboard. You may face difficulty setting it up. But I'm sure if you're an expert you'll be able to handle it.
> No Vga/DVI/HDMI port available on this board. So make sure to keep an extra graphics card available in case of video related troubleshooting
> I wish there was a crossfire bridge included with the motherboard.
> GUI Bios setup is really awesome, the best I've ever seen.
> ASUS AI Suite II is one of the best utility included.
Overall I'm very satisfied with the motherboard. A very good Motherboard indeed !!!
Thank u flipkart for such a gr8 service.This motherboard is awesome, mainly because of some reasons. It gives all the new standard features at descent price.. New Amd FX series processor support, USB3, 6Gbps sata ports..PCIexpress 2 slot., upto 32GB ram support..7.1 HD Audio..almost it is very gud for build a budget gaming pc. We must consider asus good service. Pair with one of amd fx series processor, 8bg ram, 120GB SSD and a gud graphics card...U can enjoy a very fast machine. Also u can buy all this components from flipkart. Go for it...
I brought this motherboard from flipkart and first of all hats off to them for the superb delivery service and packaging......
this is the best motherboard at this price range for the reason...?
Dual Intelligent Processors - TPU + EPU.
Remote GO! - One-stop PC Remote Control and Home Entertainment
USB 3.0 Boost - Faster USB 3.0 Transmission with UASP
Network iControl - Real-time Network Bandwidth Control
DirectKey - A Dedicated Button to Access the BIOS Directly
USB BIOS Flashback - Easy, Worry-free USB BIOS Flashback with Hardware-based Design
UEFI BIOS - Flexible & Easy BIOS Interface
Windows 8 Ready – Assured Compatibility

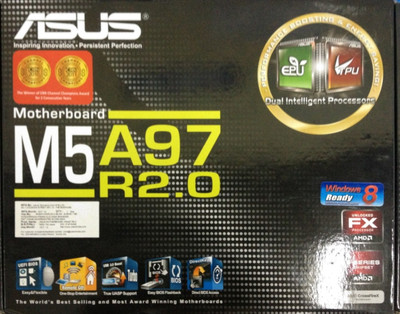

asus m5a97 r2.0 motherboard
amd fx 4100 processor
corsair ddr3 4gb ram
wd caviar green 1tb hdd
AMD 5670 ICEQ 1GB GDDR5 1 GB GDDR5 Graphics Card
asus dvd writer
450w zebronics psu
i am fully satisfied this motherboard
First of all very thanks flipkart who deliver this product very fast.
This MOBO is for those people who want to d...
Is this revision 2 or is it the base model ??? Bencause the picture shows revision 2 but the features written are of revision 1...Read More
It is a nice motherboard,well i did not bought it from Flipkart..but i would like to say its a nice gaming motherboard under 8k...Read More
I brought this motherboard from flipkart and first of all hats off to them for the superb delivery service and packaging......<...Read More
