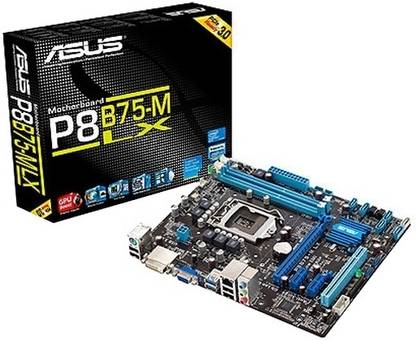

ASUS P8B75-MLX PLUS LGA 1155Socket Micro-ATX Intel B75 Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Limited Parts and Labour are CoveredKnow More

Highlights

Intel B75
Data Rate DDR3
Maximum RAM Capacity 16
Form Factor: Micro-ATX

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	4
USB 3.0 Ports, Controller	2
VGA/D Sub Ports	1
Audio I/O Channels	3
RJ-45 Ethernet Jacks	1
PS/2	1

In The Box

Sales Package

Motherboard, Sata Cables, Rear I/O Panel and Support CD

General Features

Support CDs	Drivers, ASUS Utilities, ASUS Update
Bundled Software	Anti-virus Software (OEM version)
OS Support	Windows XP and Above
BIOS	128 MB Flash ROM, AMI BIOS, PnP, DMI 2.0, WfM 2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Features	WfM 2.0, Supports RGB with Maximum Resolution 2048 x 1536 at 75 Hz, Intel SBA Support, PXE, Supports DVI with Maximum Resolution 1920 x 1200 at 60 Hz, DMI 2.0, WOL by PME, EPU, ASUS Anti-Surge Protection, WOR by PME
Advanced Features	Windows 8 Ready Assured Compatibility, GPU Boost, ASUS Exclusive Features: AI Suite II, Ai Charger, ASUS UEFI BIOS EZ Mode Featuring Friendly Graphics User Interface, Network iControl, USB 3.0 Boost, ASUS Quiet Thermal Solution: ASUS Fan Xpert, ASUS EZ DIY: ASUS CrashFree BIOS 3, ASUS EZ Flash 2, ASUS MyLogo 2

Warranty

Domestic Term	3 Years ASUS India Warranty and Free Transit Insurance.
Warranty Summary	Limited Parts and Labour are Covered
Covered in Warranty	During the Limited Warranty Period, Asus will, at its Sole Discretion, Repair or Replace any Defective Component. All Spare-parts or Module Removed Under this Limited Warranty Become the Property of Asus
Not Covered in Warranty	Warranty Invalid if Damage/ Disfunction Caused by Improper Handling, Usage, Destruction. Warranty Invalid if Serial Label is Removed, Broken Warranty Invalid if Disassembly by End-user or Non-ASUS Authorized Repair Centres. This Limited Warranty does not Cover any Software Applications or Programs Non-Asus Products or Non-Asus Branded Peripherals
Warranty Service Type	Carry In

Memory

Number of Memory Slots	2 Slots
Memory Configuration	16 DDR3 Dual Channel DIMM
Memory Frequency	2133(O.C.) MHz, 1066 MHz, 2200(O.C.) MHz, 1866(O.C.) MHz, 2000(O.C.) MHz, 1600 MHz, 1333 MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Dimensions

198 x 244 mm

Essentials

Form Factor	Micro-ATX
Socket Type	LGA 1155
Compatible Processors	Intel 3rd Generation Core i3 Processor, Intel 2nd Generation Core i7 Processor, Intel 2nd Generation Core i5 Processor, Intel 3rd Generation Core i5 Processor, Intel Pentium Processor, Intel Xeon Processor, Intel 3rd Generation Core i7 Processor, Intel 2nd Generation Core i3 Processor, Intel Celeron Processor
Chipset	Intel B75
Chipset Manufacturer	Intel

Graphics

Integrated Graphics card	Yes
Multi GPU Support	Yes, LucidLogix Virtu MVP Technology

Storage

SATA 3 Gb/s	Intel B75 Chipset
SATA 6 Gb/s	Intel B75 Chipset

Expansion Slots

PCI Slots	1
PCIe x1 Slots, Generation	2
PCIe x16 Slots, Generation	1

General

Brand	ASUS
Model ID	P8B75-MLX PLUS
Key Features	5 SATA 3Gb/s Headers with Intel B75 chipset Controller, Maximum 16 GB DDR3, LGA 1155 Socket Type, 2 Memory Slots, Dual Channel DIMM Memory, Intel B75 Chipset, Micro-ATX Form Factor

Connectivity

Ethernet Controller	Realtek 8111F-VB-CG
Ethernet Features	1 x Gigabit LAN
Number of Com Ports	1

Audio

Audio Codec	VIA VT1708S
Audio Channels	8
Audio Features	Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function, High Definition Audio

Internal I/o Headers

SATA 3 Gb/s Headers	5
SATA 6 Gb/s Headers	1
USB 2.0 Headers	2
USB 3.0 Headers	1
ATX Power Connectors	1 (24 Pin ATX Power Connectors)
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Internal Speaker Connector, 1 x Parallel Port Connector, 1 x DVI-D, 1 x System Panel, 1 x S/PDIF Out Header, 1 x 4-pin ATX 12V Power Connector

Ratings & Reviews

4.9

★

24 Ratings &

7 Reviews

5★
4★
3★
2★
1★

One of the best in this price range..

First of all it has a B75 chipset which is better than H61 chipset as it has usb 3.0 support and some more additional features.

If you want to make a budget gaming PC, then go for this motherboard along with some good RAM.& Graphics card.

I have compared it with Intel DH61WW motherboard whics has H61 chipset which was launched at 2011, I found Asus P8B75 better.

Soo if you have a low budget for motherboard, just goo for it.

- Irfan

Irfan Khan

Nov, 2012

Permalink

Report Abuse

Best Mobo Ever!!!!!

Hey...
I had that old crappy pentium D with intel board with nvidia 8400 GS 512mb

then i upgraded to:

i3 3220 with ASUS P8B75-M LX Motherboard with 4gb ddr3!!

and it is superb!!!!!!!!!
Pros: usb 3.0
PCI-E 3.0
via HD audio
sata 6 gb/s
igpu boost!!!
GO FOR IT!!!
Best in the Price range!!!
Works like charm!!!!!!!!

Nikhil Shirsat

Dec, 2012

Permalink

Report Abuse

cheap and best

i purchased this product from flipkart two weeks ago and it works fine no issues.
I paired it up with my new intel i5 3570k processor.
Merits:
It has a nice user interface.
Good at igpu performance.

If you have mote money i would sugest to go for z77 chipset board.

Muthu Manikandan

Certified Buyer

Nov, 2012

Permalink

Report Abuse

Great MOBO

very good motherboard

pros:

1. supports 3rd gen i7, i5 processors
2. pcie 3.0
3. usb 3.0
4. Crash free UEFI bios
5. Windows 8 support
6. SATA 6GBps x1, 3GBps x5
7. Low Price

Cons:
1. Only one pcie x16 slot (NO SLI, CROSSFIRE)
2. Only one sata 6GBps port
3. Only 2 RAM slots (MAX 16GB RAM)

my RIG:

Intel Core i5 3550 (3.3GHz Turbo 3.7 GHz)
ASUS P8B75M LX MOBO
2X4GB CORSAIR VENGEANCE (1600MHz CL9)
1TB SEAGATE BARACUDA
SAPPHIRE READON HD 7750 1 GB GDDR5
COOLER MASTER THUNDER 450W SMPS
NO DV...

Abid Hasan

May, 2013

Permalink

Report Abuse

Nice, Ready For Windows 8!

Nice and gud mobo for windows 8!
Ultra fast booting, in just 2 seconds!
Windows 8 assured compatibility!
Please visit asus website for more feature!..
It have every next generation feature!
Guy it will be enough for us!..

Akshai Saji

Feb, 2013

Permalink

Report Abuse

Good For Budget Gamers!..

I'm an entry level gamer!
I could play every recent games on my PC!
Please give a company to your mobo with Asus GTX 650ti, which is pci e 3.0!
I suggest you to get an i3 3220!
Corsair 430CX PSu!
Corsair vengeance 4GB Ram!
That's all you want!
You could play COD Black ops II, at high resolution! I have (1366 x 768)!
Guys Let's start Gaming!...

VISHNUPRASAD MR

Certified Buyer, Kottayam

Feb, 2013

Permalink

Report Abuse

superb performance

i would like to buy this mother board again n again...

i have purchased this product and configure my computer lab with 12 pc's...
all the systems are working fine and smoothly...

thanks to ASUS and flipkart......

Chirag Jagani

Certified Buyer, Rajkot

Dec, 2013

Permalink

Report Abuse
