Q. What is the service type ?
A. On Site (Based on the location)
Q. What is the type of Warranty ?
A. Limited - Part and Labour are Covered
Q. What is covered in Warranty ?
A. During the Limited Warranty period, Asus will, at its sole discretion, repair or replace any defective component. All spare-parts or module re ...moremoved under this Limited Warranty become the property of Asus less
Q. What is not covered in Warranty ?
A. Warranty invalid if damage/dysfunction caused by improper handling/usage, destruction, if serial label is removed, broken, if disassembly by e ...morend-user or non-ASUS-authorized repair centres. This Limited Warranty does not cover any software applications or programs, non-Asus products or non-Asus branded peripherals less
Electronic Accessories - 10% Off on Camera, Computer & Mobile accessories
|30 days from delivery||Damaged, Defective, Item not as described||Replacement|
|30 days from delivery||Exchange for colors and size, Does not fit||Exchange|
|10 days from delivery||Damaged, Item not as described||Replacement|
|In The Box|
|Sales Package||User Manual, ASUS Q-Shield, 2 x SATA 3Gb/s Cable, 2 x SATA 6Gb/s Cable(s),1 x SLI Bridge, 1 x Q-connector (2 in 1), 1 x ASUS USB 3.0 Bracket, Driver Disk, Motherboard|

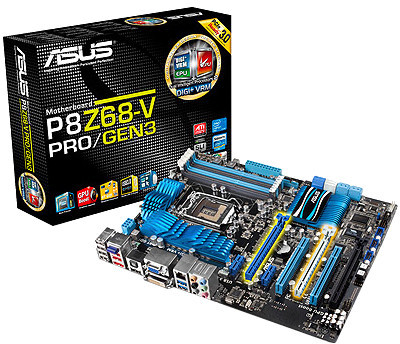

|Model ID||P8Z68-V PRO/GEN3|
|Socket Type||LGA 1155|
|Compatible Processors||Intel 2nd Generation Core i3, Intel 2nd Generation Core i5, Intel 2nd Generation Core i7, Intel Celeron, Intel Pentium|
|Number of Memory Slots||4 Slots|
|Memory Configuration||32 GB DDR3 Dual Channel DIMM|
|Memory Frequency||1066 MHz, 1333 MHz, 1600 MHz, 1866(O.C) MHz, 2133(O.C) MHz, 2200(O.C) MHz|
|SATA 3 Gb/s||Intel Z68 Chipset|
|SATA 6 Gb/s||Intel Z68 Chipset, Marvell PCIe SATA|
|RAID Controller||Intel Z68 Chipset|
|RAID Configurations||0, 1, 5, 10|
|Integrated Graphics card||Yes|
|Multi GPU Support||Yes, NVIDIA Quad-GPU SLI, AMD Quad-GPU CrossFireX, LucidLogix Virtu|
|Audio Codec||Realtek ALC892|
|Audio Features||High Definition Audio Codec Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, 192 kHz/ 24-bit True BD Lossless Sound, Blu-ray Audio Layer Content Protection, DTS Surround|
|Ethernet Controller||Intel 82579|
|IEEE 1394a FireWire Controller||VIA 6308P|
|Number of FireWire Ports||2|
|Wireless and Bluetooth||Yes|
|PCIe x1 Slots, Generation||2|
|PCIe x16 Slots, Generation||2, 3.0/2.0 (x16 or dual x8), 1, 2.0 (x4 mode)|
|Internal I/O Headers|
|SATA 3 Gb/s Headers||4|
|SATA 6 Gb/s Headers||2|
|USB 2.0 Headers||3|
|USB 3.0 Headers||1|
|ATX Power Connectors||1 (8 Pin ATX 12V Power Connectors)|
|Fan Headers||2 (Processor Fan Headers), 4 (System Fan Headers)|
|Front Panel Headers||1|
|Other Connectors||1 x 24-pin EATX Power Connector, 1 x System Panel, 1 x MemOK button, 1 x TPU Switch, 1 x EPU Switch, 1 x S/PDIF Out Header|
|Back Panel Ports|
|USB 2.0 Ports, Controller||6, Intel Z68 Chipset|
|USB 3.0 Ports, Controller||2, ASMedia USB 3.0|
|eSATA Ports, Controller||1, JMicron JMB362|
|VGA/D Sub Ports||1|
|Audio I/O Channels||6|
|RJ-45 Ethernet Jacks||1|
|Overclocking||Overclocking Protection: ASUS C.P.R.(CPU Parameter Recall)|
|Support CDs||Drivers, ASUS Utilities, ASUS Update|
|Bundled Software||Anti-virus Software (OEM version)|
|BIOS||64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function|
|Features||Supports Intel 22 nm CPU, Supports Intel 32 nm CPU, Dual Intelligent Processors 2, UEFI BIOS, LucidLogix Virtu (Universal Switchable Graphics), Intel Smart Response Technology, GPU Boost, Quad USB 3.0, SATA 6 Gbps Support Quad-GPU SLI and Quad-GPU CrossFireX Support|
|Advanced Technologies||Intel Turbo Boost Technology, Intel Smart Response Technology|
|Advanced Features||ASUS Dual Intelligent Processors 2 with DIGI+ VRM: ASUS TPU: Auto Tuning, TurboV, GPU Boost, TPU Switch, ASUS EPU: EPU, EPU Switch, ASUS Digital Power Design: Digital 16 Phase Power Design, ASUS DIGI+ VRM Utility, ASUS BT GO: Folder Sync, BT Transfer, Shot and Send, BT to Net, Music Player, Personal Manager, ASUS BT Turbo Remote: Smartphone Interface Supporting iPhone, Android, Windows Mobile, and Symbian Systems, ASUS Exclusive Features: MemOK, AI Suite II, Ai Charger+, Anti-Surge, ASUS UEFI BIOS EZ Mode Featuring Friendly Graphics User Interface, Disk Unlocker, ASUS Quiet Thermal Solution: Stylish Fanless Design Heat-sink Solution, ASUS Fan Xpert, ASUS EZ DIY: ASUS Q-Shield, ASUS O.C. Tuner, ASUS CrashFree BIOS 3, ASUS EZ Flash 2, ASUS Q-Design: ASUS Q-LED, ASUS Q-Slot, ASUS Q-DIMM, ASUS Q-Connector|
|Dimensions||305 x 244 mm|
|3 Years ASUS India Warranty and Free Transit Insurance.|
Before you read any further, please take a look at the ratings - NOT A SINGLE below 5 star rating, which proves the awesomeness of this board.
I have used this board & at 15k it's a very good deal other than the 26k maximus and 19k deluxe gen3.
#)6 Gb/s SATA - A real pleasure...using the HDD
#)32 GB DDR3 Dual Channel DIMM - forget 32, 8 - 16 GB is luxury !
#)3.0 & 2.0 - The mobo is flooding with USB slots(3.0 as well as 2.0) - Plug as many devices as you like, still short ? Use the 3.0 bracket provided with the mobo !!
#)BIOS is UEFI which means it's not like those ancient blue screen keyboard bios !!
Dedicated Graphics card support - YES
THAT'S WHY ITS A Z68 CHIPSET
#)Think future : SUPPORTS IVY BRIDGE PROCESSORS same 1155 socket.
#)features are exhaustive !!
IF YOU DON'T HAVE UNLIMITED MONEY and want to get some value for money thingy then this is it.
Disadvantages : yet to find.
I was building a computer for my home studio and needed a super fast motherboard. And man! This one is just too good. The GUI bios is awesome. The build quality is just too good, trust me I yanked it a couple of times but didn't budge and works like new. It's has LEDs to show that all of the main components are fine. It has 8 sata ports. Be warned that the 2 maxwell sata3 ports are not Raid capable. This one supports the upcoming ivy bridge CPU as well. Loving it each day more and more.
Just received the motherboard. As usual flipkart's delivery is awesome. I have paired this mobo with i7 2600K. Overclocking is very stable on this mobo. Also there are plenty of USB and SATA slots. Bluetooth is just awesome, very fast. There are LED indicator for main components, which goes on if the particular device is not working properly. This could help in troubleshooting. I am doing research from three months, so i could say that this is the best motherboard at 16K. Just go for it!!!
really amazing motherboard...working perfect with my intel i5 2500k...the PC is like flying.
i have never experienced this much speed.
inbuild bluetooth comes very handy for connecting my phone.
i guess its one of the top motherboards available in market.
the bios menu is interactive and its another feather added to asus cap.
long thing short...its a worth product...go for it!!
PS: it does not have ps2 port for keyboard/mouse, better have usb one before installing this beast.
Whatever you can think of.. is there on this motherboard! 6GBps SATA! Bluetooth! So many USB slots(both 2.0 & 3.0)! Supports Ivy bridge! LED indicators are an added bonus to troubleshoot any problems.
