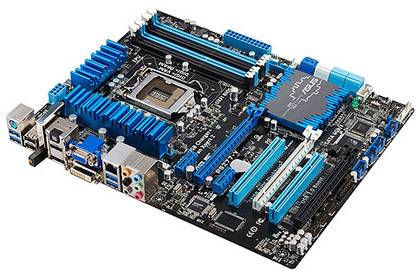

ASUS P8Z77-V LGA 1155Socket ATX Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Customer Contacts 1800-2090-365 for SupportKnow More

Highlights

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	2
USB 3.0 Ports, Controller	4, Intel Z77 Chipset, ASMedia USB 3.0
HDMI Ports	1
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	6
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	1

General Features

Overclocking	Overclocking Protection: ASUS C.P.R. (CPU Parameter Recall)
Support CDs	Drivers, ASUS Utilities, ASUS Update
Bundled Software	Anti-virus Software (OEM Version)
OS Support	Windows 7
BIOS	64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) Memory Information
Features	Supports Intel 22 nm CPU, Supports Intel 32 nm CPU
Advanced Technologies	Intel Turbo Boost Technology 2.0, Clear Video HD Technology, Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology
Advanced Features	ASUS UEFI BIOS EZ Mode, USB BIOS Flashback, MemOK!, AI Suite II, Ai Charger+, USB Charger+, Anti-surge, Network iControl, USB 3.0 Boost, Disk Unlocker, ASUS Quiet Thermal Solution, ASUS EZ DIY, ASUS Q-Design

Warranty

Domestic Term	3 Years ASUS India Warranty and Free Transit Insurance.
Warranty Summary	Customer Contacts 1800-2090-365 for Support
Covered in Warranty	During the Limited Warranty period, Asus will, at its sole discretion, repair or replace any defective component. All spare-parts or module removed under this Limited Warranty become the property of Asus.
Not Covered in Warranty	Warranty invalid if damage/dysfunction caused by improper handling/usage, destruction. Warranty invalid if serial label is removed, broken. Warranty invalid if disassembly by end-user or non-ASUS-authorized repair centres. This Limited Warranty does not cover any software applications or programs non-Asus products or non-Asus branded peripherals.
Warranty Service Type	On Site (Based on The Location)

Memory

Dimensions

Essentials

Form Factor	ATX
Socket Type	LGA 1155
Compatible Processors	Intel 3rd Generation Processors, Intel 2nd Generation Core i7 Processor, Intel 2nd Generation Core i5 Processor, Intel 2nd Generation Core i3 Processor, Intel Pentium Processor, Intel Celeron Processor
Chipset Manufacturer	Intel

Graphics

Integrated Graphics card	Yes
Multi GPU Support	Yes, NVIDIA Quad GPU SLI Technology, AMD Quad GPU CrossfireX Technology, AMD 3-way CrossfireX Technology, Lucidlogix Virtu MVP Technology

Storage

Expansion Slots

General

Brand	ASUS
Model ID	P8Z77-V
Key Features	ATX Form Factor, LGA 1155 Socket Type, Intel Z77 Chipset, RAID Controller: Intel Z77 Chipset, 4 Memory Slots, Maximum 32 GB DDR3, Dual Channel DIMM Memory

Connectivity

Audio

Audio Codec	Realtek ALC892
Audio Channels	8
Audio Features	Jack-detection, Multi-streaming, Front Panel Jack-retasking, Absolute Pitch 192 KHz, 24-bit True BD Lossless Sound, DTS Ultra PC II, DTS Connect

Internal I/o Headers

SATA 3 Gb/s Headers	4
SATA 6 Gb/s Headers	4
USB 2.0 Headers	4
USB 3.0 Headers	1
ATX Power Connectors	1 (8 Pin ATX 12V Power Connectors)
Fan Headers	1 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x S/PDIF Out Header, 1 x 24-pin EATX Power Connector, 1 x System Panel, 1 x MemOK Button, 1 x TPU Switch, 1 x EPU Switch, 1 x Clear CMOS Jumper, 1 x USB BIOS Flashback Button
