Buy ASUS P8Z77-V Motherboard: Motherboard

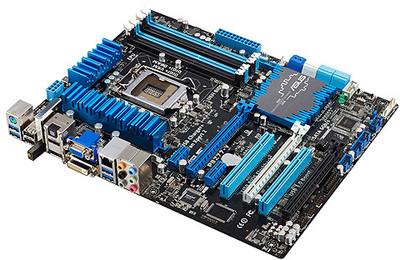

ASUS P8Z77-V Motherboard

  • ATX Form Factor
  • LGA 1155 Socket Type
  • Intel Z77 Chipset
  • RAID Controller: Intel...
3 Years ASUS India Warranty and Free Transit Insurance. See Details
Price: Not Available
Currently, no sellers are available for this item.
Notify me when this product is in stock:
Email:

Key Features of ASUS P8Z77-V Motherboard

  • ATX Form Factor
  • LGA 1155 Socket Type
  • Intel Z77 Chipset
  • RAID Controller: Intel Z77 Chipset
  • 4 Memory Slots
  • Maximum 32 GB DDR3
  • Dual Channel DIMM Memory

Specifications of ASUS P8Z77-V Motherboard

General
Model ID P8Z77-V
Essentials
Form Factor ATX
Socket Type LGA 1155
Compatible Processors Intel 3rd Generation Processors, Intel 2nd Generation Core i7 Processor, Intel 2nd Generation Core i5 Processor, Intel 2nd Generation Core i3 Processor, Intel Pentium Processor, Intel Celeron Processor
Chipset Intel Z77
Memory
Number of Memory Slots 4 Slots
Memory Configuration 32 GB DDR3 Dual Channel DIMM
ECC Support Non-ECC
Buffered Memory Unbuffered
Storage
SATA 3 Gb/s Intel Z77 Chipset
SATA 6 Gb/s Intel Z77 Chipset
RAID Controller Intel Z77 Chipset
RAID Configurations 0, 1, 5, 10
Graphics
Integrated Graphics card Yes
Multi GPU Support Yes, NVIDIA Quad GPU SLI Technology, AMD Quad GPU CrossfireX Technology, AMD 3-way CrossfireX Technology, Lucidlogix Virtu MVP Technology
Audio
Audio Codec Realtek ALC892
Audio Channels 8
Audio Features Jack-detection, Multi-streaming, Front Panel Jack-retasking, Absolute Pitch 192 KHz, 24-bit True BD Lossless Sound, DTS Ultra PC II, DTS Connect
Connectivity
Ethernet Controller Intel 82579V
Ethernet Features Gigabit LAN
Wireless and Bluetooth ASUS Wireless
Expansion Slots
PCI Slots 2
PCIe x1 Slots, Generation 2, 2.0
PCIe x16 Slots, Generation 1, 2.0 (x4 Mode), 2, 3.0/2.0 (x16, Dualx8)
Internal I/O Headers
SATA 3 Gb/s Headers 4
SATA 6 Gb/s Headers 4
USB 2.0 Headers 4
USB 3.0 Headers 1
ATX Power Connectors 1 (8 Pin ATX 12V Power Connectors)
Fan Headers 1 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers 1
Other Connectors 1 x S/PDIF Out Header, 1 x 24-pin EATX Power Connector, 1 x System Panel, 1 x MemOK Button, 1 x TPU Switch, 1 x EPU Switch, 1 x Clear CMOS Jumper, 1 x USB BIOS Flashback Button
Back Panel Ports
USB 2.0 Ports, Controller 2, Intel Z77 Chipset
USB 3.0 Ports, Controller 4, Intel Z77 Chipset, ASMedia USB 3.0
HDMI Ports 1
DVI Ports 1
VGA/D Sub Ports 1
Audio I/O Channels 6
Optical S/PDIF Ports and S/PDIF Out ports 1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks 1
PS/2 1
General Features
Overclocking Overclocking Protection: ASUS C.P.R. (CPU Parameter Recall)
Support CDs Drivers, ASUS Utilities, ASUS Update
Bundled Software Anti-virus Software (OEM Version)
OS Support Windows 7
BIOS 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) Memory Information
Features Supports Intel 22 nm CPU, Supports Intel 32 nm CPU
Advanced Technologies Intel Turbo Boost Technology 2.0, Clear Video HD Technology, Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology
Advanced Features ASUS UEFI BIOS EZ Mode, USB BIOS Flashback, MemOK!, AI Suite II, Ai Charger+, USB Charger+, Anti-surge, Network iControl, USB 3.0 Boost, Disk Unlocker, ASUS Quiet Thermal Solution, ASUS EZ DIY, ASUS Q-Design
Dimensions
Dimensions 244 x 305 mm
Warranty
3 Years ASUS India Warranty and Free Transit Insurance.

Reviews of ASUS P8Z77-V Motherboard

4.7
Average Rating
Based on 12 ratings
Have you used this product?
Rate it now.
Showing 1-5 of 5 reviews
03 June 12
first to review
The 'certified buyer' badge indicates that this user has purchased this product on flipkart.com.
certified buyer
asoooooo....s incredulous innovation..

BRAND- this motherboard comes from the biggest and futuristic motherboard manufacturer asus(headquartered in taipei,taiwan.

SPECS AND FEATURES - this motherboard is based on latest chipset z77 supporting latest intel ivy bridge processors aka 22nm processors.it is also backward compatible with sandy bridge processors which are 32 nm processsors.

1. 4 memory slots supporting upto max 32 gb ram
2. supports nvidia quad sli and amd quad crossfirex
3. 4 usb 3.0 which is quite remarkable
4. in built wifi
5. tons of features like intel turbo boost technology 2.0 (though supportable processors required),intel srt, intel rst and many others
it comes with huge amount of asus features like smart digi +,fan control system,UASP,PCLe3.0 ready which are few of them

PERFORMANCE - OVERCLOCKING! thats not a big deal for this motherboard with technologies like fan expert 2.0.
pair it with an asus gtx (above 560) series graphic card and then you have the right ammunition to become a serious hardcore gamer.

EXTRA FEATURES - you can connect your pc to smartphone and contro it and send files through wifi and control it with your own qwerty keypad on your phone.
DLNA streaming has been made very easy.
you can create a huge wifi environment with your pc, smartphone or tablet,television.

supports upto 7.1 digital surround with asus crystal sound technologies like dts connect and dts ultra pc 2.

VERDICT - well i don't think i've to say anything after this but still
if you're a serious gamer who belives in overclocking,newer technology and believes in future pc upgradations and most importantly want to drop some weight from your money pocket to buy this master art perfection then this is the way to go!!!!!

Was this review helpful?  /
1 of 1 users found this review helpful.
27 June 12
The 'certified buyer' badge indicates that this user has purchased this product on flipkart.com.
certified buyer
kick ass gaming rig with this motherboard.

The ASUS P8Z77-V was feature rich, stable under duress, and well appointed for almost all enthusiasts’ needs. You can easily build a kick ass gaming rig with this motherboard.

The ASUS P8Z77-V proved to be a great motherboard. Its price point however does put it at somewhat of a premium, but if you can utilize the headline features there is no doubt that it will be of great value. If you can use the ASUS Wi-Fi GO! Feature, that alone is a valuable feature. While it packs a lot of features, it does not have it all, which is understandable. No eSATA, no FireWire (not that it probably matters to many anymore), and no virtualization support, or WHS and WS2008R2 drivers. A couple of these could me deal breakers, so i thought it important to mention those here.

Was this review helpful?  /
2 of 2 users found this review helpful.
30 April 13
Best Z77 Mobo with tons of features!!!!!

I bought this motherboard from a retail store. Its a great motherboard and fan expert 2 is a nice feature and you don't need a dedicated fan controller for your case fans. Also great for overclocking with 1 click auto tuning USB 3.0 transfer speed is also very fast (120 to 130 mbps Barracuda 2TB HDD).
Very much satisfied with this mobo. My config is as follows,

Asus P8Z77V
Core i5-3450
GSkill RipjawsX 8GB 1600 MHz
Palit GTX660 Ti JetStream 2GB
Segate Barracuda 2TB
HP DVD RW Drive
Cooler Master GX550 PSU
CM Storm Enforcer Cabinet

This pc can play BlackOPS 2 in 4XMSAA, Med Shadow all highest setting in 130FPS (1920X1080 Res). Overclocked my cpu to 3.8 GHz using turboV fast auto tuning (not extreme because I need a water cooler). Cpu temp hovers around 65 to 68C with stock cooler. BlackOPS2 fps is 135 to 140 max.

Was this review helpful?  /
0 of 0 users found this review helpful.
02 December 12
The 'certified buyer' badge indicates that this user has purchased this product on flipkart.com.
certified buyer
Grazie ASUS!!

The P8Z77-V has proven itself in my mind as a capable enthusiast board in every way that counts. Good layout, excellent stability, solid features, awesome fan control, capable software, and the best UEFI on the market.
clocked at 4.7 ghz with my 3570k and still stable.overclocking is fun.just use the oc tuner.it has got performance which even beats/synonymous with higher priced z77s.got lot of features if can be used properly.really like the wifi go.
The ASUS P8Z77-V was feature rich, stable under duress, and well appointed for almost all enthusiasts’ needs. You can easily build a kick ass gaming rig with this motherboard.

Was this review helpful?  /
0 of 0 users found this review helpful.
30 September 12
Will never beat the ASRock

This is the exact same as an ASRock Extreme 6. It costs Rs.6000
more. Why, oh WHY, would you want this?

People, do a little research.

Both mobos are Z77; both have 6 SATA links total; the ASRock has two more then the Asus. Both are forward-intel compatible, both support SLI/Crossfire, both do this, both do that.

The ASRock comes with more features, for less. And frankly, it looks a ton better doing it.

Was this review helpful?  /
0 of 4 users found this review helpful.
