Q. What is the service type ?
A. On Site (Based on the location)
Q. What is the type of Warranty ?
Q. What is covered in Warranty ?
A. During the Limited Warranty Period, Asus will, at its sole discretion, repair or replace any defective component. All spare-parts or module re ...moremoved under this Limited Warranty become the property of Asus. less
Q. What is not covered in Warranty ?
A. Warranty invalid if damage / dysfunction caused by improper handling / usage, destruction. Warranty invalid if serial label is removed, broken ...more Warranty invalid if disassembly by end-user or non-ASUS-authorized repair centres. This Limited Warranty does not cover any software applications or programs non-Asus products or non-Asus branded peripherals. less
All items that have the "Cash on Delivery Available" icon are valid for order by Cash on Delivery.
Add the item(s) to your cart and proceed to checkout. When prompted to choose a payment option, select "Pay By Cash on Delivery". Enter the CAPTCHA text as shown, for validation.
Once verified and confirmed, your order will be processed for shipment in the time specified, from the date of confirmation. You will be required to make a cash-only payment to our courier partner at the time of delivery of your order to complete the payment.
Terms & Conditions:
|30 days from delivery||Damaged, Defective, Item not as described||Replacement|
|30 days from delivery||Exchange for colors and size, Does not fit||Exchange|
|10 days from delivery||Damaged, Item not as described||Replacement|

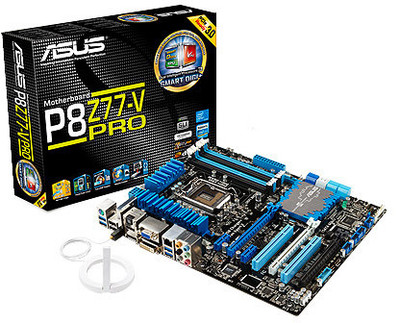

|In The Box|
|Sales Package||Motherboard, User Guide, Driver CD, Port-Plate, Cables and Jumpers|
|Model ID||P8Z77-V PRO|
|Socket Type||LGA 1155|
|Compatible Processors||Intel 3rd Generation Processors, Intel 2nd Generation Core i7 Processor, Intel 2nd Generation Core i5 Processor, Intel 2nd Generation Core i3 Processor, Intel Pentium Processor, Intel Celeron Processor|
|Number of Memory Slots||4 Slots|
|Memory Configuration||32 GB DDR3 Dual Channel DIMM|
|SATA 3 Gb/s||Intel Z77 Chipset|
|SATA 6 Gb/s||Intel Z77 Chipset, ASMedia PCIe SATA Controller|
|RAID Controller||Intel Z77 Chipset|
|RAID Configurations||0, 1, 5, 10|
|Integrated Graphics card||Yes|
|Multi GPU Support||Yes, NVIDIA Quad GPU SLI Technology, AMD Quad GPU CrossFireX Technology, AMD 3-way CrossFireX Technology, LucidLogix Virtu MVP Technology|
|Audio Codec||Realtek ALC892|
|Audio Features||Jack-detection, Multi-streaming, Front Panel Jack-retasking|
|Ethernet Controller||Intel 82579V, Intel LAN Dual Interconnect between the Integrated LAN Controller and Physical Layer (PHY)|
|Ethernet Features||Gigabit LAN|
|Wireless and Bluetooth||1|
|PCIe x1 Slots, Generation||2, 2.0|
|PCIe x16 Slots, Generation||1, 2.0 (x4 Mode), 2, 3.0/2.0 (x16, x8)|
|Internal I/O Headers|
|SATA 3 Gb/s Headers||4|
|SATA 6 Gb/s Headers||4|
|USB 2.0 Headers||4|
|USB 3.0 Headers||2|
|ATX Power Connectors||1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)|
|Fan Headers||1 (Processor Fan Headers), 4 (System Fan Headers)|
|Front Panel Headers||1|
|Other Connectors||1 x S/PDIF Out Header, 1 x System Panel, 1 x MemOK Button, 1 x Clear CMOS Jumper, 1 x TPU Switch, 1 x EPU Switch|
|Back Panel Ports|
|USB 2.0 Ports, Controller||4, Intel Z77 Chipset|
|USB 3.0 Ports, Controller||4, Intel Z77 Chipset, ASMedia USB 3.0|
|VGA/D Sub Ports||1|
|Audio I/O Channels||6|
|Optical S/PDIF Ports and S/PDIF Out ports||1 (Optical S/PDIF Ports)|
|RJ-45 Ethernet Jacks||1|
|Overclocking||Overclocking Protection: ASUS C.P.R. (CPU Parameter Recall)|
|Support CDs||Drivers, ASUS Utilities, ASUS Update|
|Bundled Software||Anti-virus Software (OEM Version)|
|OS Support||Windows 7|
|BIOS||64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) Memory Information|
|Features||Supports Intel 22 nm CPU, Supports Intel 32 nm CPU, ASUS TPU, ASUS EPU, ASUS Digital Power Design, ASUS Quiet Thermal Solution, ASUS EZ DIY, ASUS Q-Design|
|Advanced Technologies||Intel Turbo Boost Technology 2.0, Clear Video HD Technology, Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology|
|Advanced Features||Dual Intelligent Processors 3 with SMART DIGI+ Power Control, Wi-Fi GO: DLNA Streaming and Remote Desktop Made Easy, SMART DIGI+: Get a Blazing Performance Boost and CPU Wattage Requirements Cut in Half, Fan Xpert 2|
|External Graphics Card Required (Not Included in the Box)|
|Dimensions||244 x 305 mm|
|3 Years ASUS India Warranty and Free Transit Insurance.|
@Tareesh My Friend z68 is a last generation chipset where as this one is a z77 board the latest chipset that supports upcomming 22nm processor aka IVY Bridge CPU and also the Sandy Bridge line up.
Key difference in Z68/Z77 is that for that 800rs extra u will get
1)Lucid MVP (better than last generatin lucid)
This basically helps reduce tearing when the fps goes way higher than ur monitors refresh rare, also no no matter where u pluch ur disply to ur mob or ur Graphics card u dont have to keep changing ur port if u want to take advantage of on board graphics of a sandy/ivy brifldge processor
2)Native USB 3.0 and faster!
3)Newer and upgraded Asus Technologys
4)Intel Lan and usb Bios flashing!!
5)Updated Sound Chip
6)None of that B2/B3 step up mess like last gen.
7)Wifi chip onboard with DLNA support
man for 800Bucks extra dont u think its worth the features.
More over if ur a new gen buyer i can happly tell u to buy this
Hope this helps every one.
Features is allready available in description....so lets get throw to my opinion -
i using this mobo for overclocking with intel i7 3770k ivy bridge processor,i o.c. it by using asus overclocking software to 4.0 to 4.2 ghz with no issue.i use Cooler Master Hyper 212 EVO Cooler cpu fan for cpu cooling and my cpu idle temp is arround 50 to 55 Celcius just bcoz of mobo's fan expert feature and it is really awesome guyz.i m not oc more but my system windows rating is 7.8 with all my gear....
and 1 more thing if you got fan error on startup after you using Cooler Master Hyper 212 EVO Cooler along with this mobo so do the 1 thing,go to bios setting change the BIOS setting for the CPU fan alert "minimum threshold" from 600 RPM's to 500 RPM's, which is not dangerous because 500 is just peachy at the temps I'm getting, and no more fan error. I am sure it is because of the fan, not because of the board.
so at last it is a great mobo....
A motherboard full of features, and the inclusion of Wi-Fi, makes the price worth paying for this Asus board.
An easier and excellent out of the box experience.
The board hold up in a hot environment and Good board for overclocking.
The ASUS software comes with the mobo makes it worth for the money we spent.
Note: It surely does not disappoint you.
