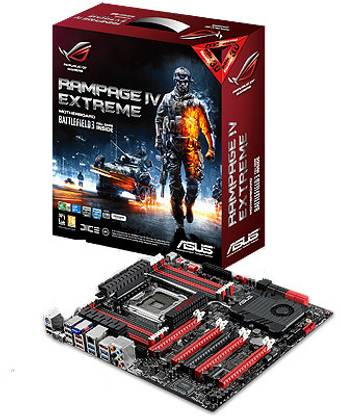

ASUS Rampage IV Extreme/BATTLEFIELD 3 LGA 2011Socket ATX Intel X79 Chipset DDR3 Motherboard for Desktop

Price: Not Available

Currently Unavailable

Customer contacts 1800-2090-365 for supportKnow More

Highlights

Suitable For Desktop
Intel X79
Data Rate DDR3
Maximum RAM Capacity 64
Form Factor: ATX

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	8
USB 3.0 Ports, Controller	4, ASMedia
eSATA Ports, Controller	ASMedia, 2
Audio I/O Channels	5
RJ-45 Ethernet Jacks	1
PS/2	1

In The Box

Sales Package

I/O Shield, 4 x SATA 3 Gb/s Cable, 4 x SATA 6 Gb/s Cable, 1 x 3-Way SLI Bridge, 1 x 4-Way SLI Bridge, 1 x SLI Bridge, 1 x CrossFire Cable, 1 x Q-connector (2 in 1), 1 x ROG Connect Cable, 1 x ProbeIt Cable Set, 1 x 12 in 1 ROG Cable Label, 1 x OC Key, 1 x OC Key Cable, 1 x X-Socket Pad, 1 x BATTLEFIELD 3 Key Code, 1 x BATTLEFIELD 3 Lanyard, Motherboard

General Features

Overclocking	ROG OC Key: OSD TweakIt, OSD Monitor, ROG Connect: RC Diagram, RC Remote, RC Poster, GPU TweakIt, ROG iDirect, Extreme Engine Digi+ II: 8-phase CPU Power Design, 3 -phase VCCSA Power Design, 2 + 2 phase DRAM Power Design, ROG Extreme OC Kit: Subzero Sense, VGA Hotwire, Slow Mode, LN2 Mode, PCIe x16 Lane Switch, Q Reset, EZ Plug, ProbeIt UEFI BIOS Features: GPU.DIMM Post, iROG, Extreme Tweaker, Loadline Calibration, BIOS Flashback, USB BIOS Flashback, Overclocking Protection: COP EX (Component Overheat Protection - EX), Voltiminder LED II, ASUS C.P.R.(CPU Parameter Recall)
Support CDs	Drivers and Applications, ASUS TurboV EVO Utility, ASUS PC Probe II, ASUS Update, ASUS AI Suite II, ASUS AI Charger+, Daemon Tool Pro Standard, ASUS WebStorage
Bundled Software	Kaspersky Anti-Virus
BIOS	2 x 64 Mb Flash ROMs, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI2.0a Multi-Language BIOS
Features	ASUS MyLogo 2, Boot Device LED), ASUS EZ DIY: ASUS O.C. Profile, ASUS Quiet Thermal Solution: ASUS Q-Fan Plus, DRAM, ASUS Exclusive Features: MemOK!, ASUS Q-Design: ASUS Q-LED (CPU, ASUS EPU: EPU, ASUS EZ Flash 2, ASUS Q-DIMM, ASUS Fan Xpert, VGA, ASUS Q-Connector, Onboard Button : Power/Reset/Clr CMOS (at back IO), ASUS Q-Slot, CPU Level Up, ASUS Crash Free BIOS 3
Advanced Technologies	Intel Turbo Boost Technology 2.0
Advanced Features	X-Socket, OC Key, Subzero Sense, VGA Hotwire

Warranty

Domestic Term	3 Years ASUS India Warranty and Free Transit Insurance.
Warranty Summary	Customer contacts 1800-2090-365 for support
Covered in Warranty	During the Limited Warranty Period, Asus will, at its sole discretion, repair or replace any defective component. All spare-parts or module removed under this limited Warranty become the property of Asus.
Not Covered in Warranty	Warranty invalid if damage/dysfunction caused by improper handling/usage, destruction. Warranty invalid if serial label is removed, broken Warranty invalid if disassembly by end-user or non-ASUS-authorized repair centres. This Limited Warranty does not cover any software applications or programs non-Asus products or non-Asus branded peripherals.
Warranty Service Type	On Site (Based on the location)

Memory

Number of Memory Slots	8 Slots
Memory Configuration	64 DDR3 Quad Channel DIMM
Memory Frequency	1866 MHz, 2400(O.C) MHz, 1066 MHz, 2133(O.C) MHz, 1600 MHz, 1333 MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Limitations

External Graphics Card required (not included in the box)

Dimensions

305 x 272 mm

Essentials

Form Factor	ATX
Socket Type	LGA 2011
Compatible Processors	Intel 2nd Generation Core i7-3930K, Intel 2nd Generation Core i7-3960X
Chipset	Intel X79
Chipset Manufacturer	Intel

Graphics

Multi GPU Support

Yes, NVIDIA 4-Way SLI, AMD 4-Way CrossFireX

Storage

SATA 3 Gb/s	Intel X79
SATA 6 Gb/s	Intel X79, ASMedia PCIe
RAID Controller	Intel X79
RAID Configurations	0, 1, 5, 10

Expansion Slots

PCIe x1 Slots, Generation	1, 2
PCIe x16 Slots, Generation	4, 1

General

Brand	ASUS
Model ID	Rampage IV Extreme/BATTLEFIELD 3
Designed For	Desktop
Key Features	LGA 2011 Socket Type, ATX Form Factor, Raid Controller: Intel X79, Maximum 64 GB DDR3, 8 Memory Slots, Intel X79 Chipset, Quad Channel DIMM Memory

Connectivity

Ethernet Controller	Intel Gigabit LAN
Wireless and Bluetooth	1

Audio

Audio Codec	Realtek ALC898
Audio Channels	7.1
Audio Features	Supports Jack-detection, Supports Multi-streaming, Supports Front Panel Jack-retasking, Blu-ray Audio Layer Content Protection

Internal I/o Headers

SATA 3 Gb/s Headers	4
SATA 6 Gb/s Headers	4
USB 2.0 Headers	2
USB 3.0 Headers	2
ATX Power Connectors	1 (8 Pin ATX 12V Power Connectors)
Fan Headers	2 (Processor Fan Headers), 3 (System Fan Headers)
Other Connectors	1 x Front Panel Audio Connector, 2 x EZ Plug Connector, 1 x OC Key Header, 1 x LN2 Mode Header, 2 x Subzero Sense Connector, 1 x 24-pin EATX Power Connector, 2 x EZ Plug connector, 3 x Thermal Sensor Connector, 1 x S/PDIF Out Header, 1 x System Panel, 1 x OT Header, 1 x 4-pin ATX 12V Power Connector
