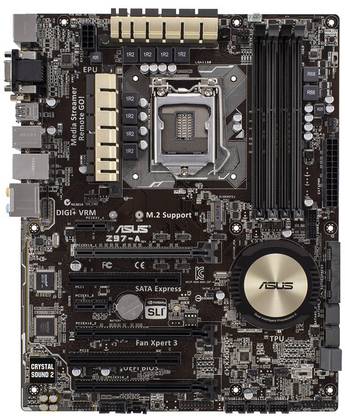

ASUS Z97-A LGA 1150Socket ATX Intel Z97 Express Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

3 Years Asus India Warranty and Free Transit InsuranceKnow More

Highlights

Intel Z97 Express
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: ATX

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	2
USB 3.0 Ports, Controller	4
HDMI Ports	1
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	5
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	1
Other Ports	1 x Display Port

In The Box

Sales Package

User's Manual, I/O Shield, 3 x SATA 6Gb/s Cable, 1 x SLI Bridge, 1 x Q-connector (2 in 1)

General Features

Overclocking	ASUS C.P.R (CPU Parameter Recall)
Support CDs	Drivers, ASUS Utilities, EZ Update, Anti-virus Software (OEM Version)
OS Support	Windows: 7, 8, 8.1
BIOS	64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified Log, F12 PrintScreen, F3 Shortcut Functions, and ASUS DRAM SPD (Serial Presence Detect) Memory Information
Features	5-Way Optimization by Dual Intelligent Processors 5: Whole System Optimization with a Single Click, Turbo LAN, Supports RGB with Maximum Resolution 1920 x 1200 at 60 Hz, AI Suite 3, Supports Display Port with Maximum Resolution 4060 x 2160 at 24 Hz / 3840 x 2160 at 60 Hz, Asus 5X Protection: Asus DIGI+ VRM - 8 Phase Digital Power Design, DMI 2.7, WOL by PME, Whole System Cooling and Even Tailor your Own App Usages, DIGI+ Power Control, Supports Intel InTru 3D, Anti-Surge, Asus High-Quality 5K-Hour Solid Capacitors - 2.5x Long Lifespan with Excellent Durability, Asus Stainless Steel Back I/O - 3x More Durable Corrosion-resistant Coating, Asus Q-Design : Asus Q-Shield, Supports DVI-D with Maximum Resolution 1920 x 1200 at 60 Hz, Asus ESD Guards - Enhanced ESD Protection, Asus TPU, Asus EPU, Asus EZ Flash 2, PXE, Integrated Graphics Processor- Intel HD Graphics Support, Manageability: WfM 2.0, ASUS Q-Connector, Disk Unlocker, Asus Q-Slot, Asus Enhanced DRAM Overcurrent Protection - Short Circuit Damage Prevention, Crystal Sound 2, USB 3.0 Boost, Asus UEFI BIOS EZ Mode Featuring Friendly Graphics User Interface, Asus Quiet Thermal Solution: Stylish Fanless Design Heat-sink Solution, Quick Sync Video, Asus EZ DIY: Asus CrashFree BIOS 3, EPU, Precise Digital Power Control, Providing Better CPU Performance, Efficient Power Saving, 5-Way Optimization Tuning Key Perfectly Consolidates TPU, Asus Exclusive Features: Remote Go, Fan Xpert 3 and Turbo App Together, Push Notice, Asus UEFI BIOS EZ Mode, Asus Fan Xpert 3, Multi-VGA Output Support: HDMI/DVI-D/RGB/Display Port, Supports HDMI with Maximum Resolution 4096 x 2160 at 24 Hz / 2560 x 1600 at 60 Hz
Advanced Technologies	Supports Intel Turbo Boost Technology 2.0, The Intel Turbo Boost Technology 2.0 Support Depends on the CPU Types, Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider, Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology
Advanced Features	Supports Intel Extreme Memory Profile (XMP), Supports Intel 22 nm CPU, Intel Turbo Boost Technology 2.0 Support Depends on the CPU Types

Warranty

Warranty Summary

3 Years Asus India Warranty and Free Transit Insurance

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	1866 MHz, 2400 MHz, 3000 MHz, 2500 MHz, 2933 MHz, 3200 (O.C) MHz, 3100 MHz, 2800 MHz, 2666 MHz, 2000 MHz, 1600 MHz, 2200 MHz, 2133 MHz, 1333 MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Essentials

Form Factor	ATX
Socket Type	LGA 1150
Compatible Processors	Intel Pentium Processors, Intel 5th Generation Core i7 Processors, Intel 5th Generation Core i3 Processors, Intel 4th Generation Core i7 Processors, Intel 4th Generation Core i3 Processors, Intel New 4th Generation Core i5 Processors, Intel 5th Generation Core i5 Processors, Intel Celeron Processors, Intel New 4th Generation Core i7 Processors, Intel New 4th Generation Core i3 Processors, Intel 4th Generation Core i5 Processors
Chipset	Intel Z97 Express
Chipset Manufacturer	Intel

Graphics

Integrated Graphics card	Yes
Multi GPU Support	Yes, Supports NVIDIA Quad-GPU SLI Technology, Supports AMD Quad-GPU CrossFireX Technology

Storage

SATA 6 Gb/s	Intel Z97 Express
RAID Controller	Intel Z97 Express
RAID Configurations	0, 1, 5, 10

Expansion Slots

PCI Slots	2
PCIe x1 Slots, Generation	2
PCIe x16 Slots, Generation	1

General

Brand	ASUS
Model ID	Z97-A
Color	Black
Key Features	ATX Form Factor, Intel Z97 Chipset, Maximum 32 GB DDR3, LGA 1150 Socket Type, 4 Memory Slots, Dual Channel Memory

Connectivity

Ethernet Controller	Intel I218 V
Ethernet Features	1 x Gigabit LAN, Dual Interconnect Between the Integrated Media Access Controller (MAC) and Physical Layer (PHY), Gigabit Intel LAN Connection - 802.3az Energy Efficient Ethernet (EEE) Appliance

Audio

Audio Codec	Realtek ALC892
Audio Channels	8
Audio Features	HD Audio CODEC Featuring Crystal Sound 2, Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking, Audio Feature: Absolute Pitch 192 kHz / 24-bit True BD Lossless Sound, DTS Ultra PC II, DTS Connect, Optical S/PDIF Out Port at Back Panel

Internal I/o Headers

SATA 6 Gb/s Headers	4
USB 2.0 Headers	3
USB 3.0 Headers	1
ATX Power Connectors	1 (8 Pin ATX 12V Power Connectors)
Fan Headers	1 (Processor Fan Headers), 4 (System Fan Headers)
Other Connectors	1 x TPU Switch, 1 x Front Panel Audio Connector (AAFP), 1 x Clear CMOS Jumpers, 3 x USB 2.0 Connectors Supports Additional 6 USB 2.0 Ports, 4 x Chassis Fan Connectors (4 x 4 Pin), 1 x Thunderbolt Header, 1 x CPU OPT Fan Connector (1 x 4 Pin), 1 x MemOK Button, 1 x Power-on Button, 1 x SATA Express Connector: Black, 1 x System Panels Q-Connector, 1 x CPU Fan Connector (1 x 4 Pin), 1 x EZ XMP Switch, 1 x USB 3.0 Connector Supports Additional 2 USB 3.0 Ports (19 Pin), Type 2260 / 2280 Devices, 1 x DRCT Header, 1 x M.2 Socket 3 for M Key, 1 x EPU Switch, 1 x S/PDIF Out Header, Compatible with 2 x SATA 6.0 Gb/s Ports, 1 x 24 Pin EATX Power Connector
