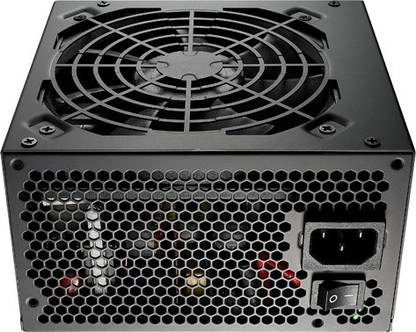

Cooler Master GX 750 Watts PSU

Price: Not Available

Currently Unavailable

Cooler Master provides domestic warranty including only manufacturing defects and services, but not defects due to mishandling

Highlights

Power Output: 750 W
1 12V Power Rails
ATX 12V Version: 2.31
Number of Fans: 1

Specifications

In The Box

Sales Package

PSU and Respective Screws

Warranty

Domestic Term	5 Years
Service Type	Carry In
Covered in Warranty	Any Problem which has manufacturing defect will be warrantied
Not Covered in Warranty	Cooler Master does not cover any accidental or physical damage
Warranty Type	Limited
Warranty Summary	Cooler Master provides domestic warranty including only manufacturing defects and services, but not defects due to mishandling

Maximum Current

Current at DC Output of +3.3 V	25 A
Current at DC Output of +5 V	25 A
Current at DC Output of +12 V	60 A
Current at DC Output of -12 V	0.5 A
Current at DC Output of +5 V sb	2.5 A

General

Brand	COOLER MASTER
Series	GX
Part Number	RS-750-ACAA-E3
Power Output	750 W with Maximum Power Output of900 W
ATX & EPS Version	ATX 12V v2.31
Processor Support	Intel
Power Rail	1 x 12V Power Rails
SLI Certification	Yes
Model Name	GX 750W
Key Features	750 W Power Output, 100000 hours MTBF, 90 - 264 Vac Input Voltage, 1 x 12V Power Rail, ATX 12V v2.31, SLI Certification

Connectivity

Motherboard	1 Motherboard Connector with 20 + 4 pin
CPU	1 CPU Connector with 4 + 4 pin
PCI-e	4 PCI-e 6+2 pin
SATA	9 SATA Cables
Floppy	1 Floppy Connector with 4 pins
Peripheral	3 Peripheral Connector with 4 pins

Dimensions

Width x Height x Depth

150 x 140 x 86 mm

Features

Fan Type	1 x 120 mm
Temperature	0 to 40 °C (Operating Temperature)
Protection	Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Over Temperature Protection (OTP), Short Circuit Protection (SCP)
Safety Standards	KCC, 80 Plus, CCC, GOST, C-Tick, TUV, FCC, CE, UL, BSMI
Certification	80 Plus

Power

Power Factor Correction (PFC)	Active PFC with Value of 0.99
Input Voltage 1	90 - 264 V
Input Current	6 -10 A
Input Frequency	47 - 63 Hz
Power Good Signal	100 ~ 500 ms
Hold Up Time	17 ms
Efficiency	85 %
Mean time between failures (MTBF)	1,00,000 hr
