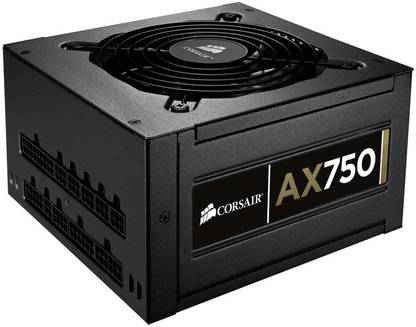

    Corsair AX750 750 Watts PSU

    Corsair AX750 750 Watts PSU

    Price: Not Available
    Currently Unavailable
    Warranty
    Customer Contacts 18004255464 for warranty
    Highlights
    • Power Output: 750 W
    • 1 12V Power Rails
    • ATX 12V Version: 2.31
    • Number of Fans: 1
    Specifications
    General
    Brand
    • Corsair
    Series
    • Professional Series
    Part Number
    • CMPSU-750AXUK
    Power Output
    • 750 W
    ATX & EPS Version
    • ATX 12V v2.31 and EPS 12V v2.92
    Power Rail
    • 1 x 12V Power Rails
    SLI Certification
    • Yes
    Model Name
    • AX750
    Power
    Power Factor Correction (PFC)
    • Active PFC with Value of 0.99
    Input Voltage 1
    • 90 - 264 V
    Input Current
    • 4.5 -9 A
    Input Frequency
    • 50 - 60 Hz
    Efficiency
    • 90 %
    Mean time between failures (MTBF)
    • 1,00,000 hr
    Maximum Current
    Current at DC Output of +3.3 V
    • 25 A
    Current at DC Output of +5 V
    • 25 A
    Current at DC Output of +12 V
    • 62 A
    Current at DC Output of -12 V
    • 0.5 A
    Current at DC Output of +5 V sb
    • 3 A
    Features
    Fan Type
    • 1 x 120 mm Dual Ball Bearing, Ultra Quiet Operation, Hybrid Silent Fan Control
    Temperature
    • to 50 °C (Operating Temperature)
    Protection
    • Over Voltage Protection (OVP), Over Current Protection (OCP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP)
    Safety Standards
    • UL, CUL, CE, CB, FCC, TUV, CCC, C-tick, CSA, BSMI, GOST
    Certification
    • 80 Plus Gold
    Connectivity
    Motherboard
    • 1 Motherboard Connector with 20 pin, 24 pin
    CPU
    • 2 CPU Connector with EPS 12 V (8 Pin)
    SATA
    • 12 SATA Cables
    Floppy
    • 2 Floppy Connector with 4 pins
    Peripheral
    • 8 Peripheral Connector with 4 pins
    Other Features
    Additional Features
    • Backward Compatible with ATX12V 2.2 and ATX12V 2.01 Systems
    Dimensions
    Width x Height x Depth
    • 150 x 86 x 160 mm
    Warranty
    Domestic Term
    • 7 Years
    Warranty Summary
    • Customer Contacts 18004255464 for warranty
