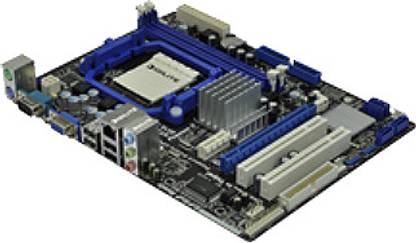

    DIGILITE DL-960GM-GS3 FX AM3+Socket Micro-ATX AMD 760G Chipset DDR3 Motherboard

    DIGILITE DL-960GM-GS3 FX AM3+Socket Micro-ATX AMD 760G Chipset DDR3 Motherboard

    Price: Not Available
    Currently Unavailable
    Warranty
    Customer Contacts helpdesk@digilite.co.in, Toll Free - 1800 209 3444 for Support
    Highlights
    • AMD 760G
    • Data Rate DDR3
    • Maximum RAM Capacity 8
    • Form Factor: Micro-ATX
    Specifications
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 4
    VGA/D Sub Ports
    • 1
    RJ-45 Ethernet Jacks
    • 1
    PS/2
    • 2
    In The Box
    Sales Package
    • Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables (Optional)
    General Features
    Hardware Monitoring
    • Voltage Monitoring +12 V, +5 V, +3.3 V, Vcore
    Support CDs
    • Drivers, Utilities, AMD OverDrive Utility, CyberLinkMediaEspresso 6.5 Trial, Software Suite (CyberLink DVD Suite OEM and Trial, MAGIXMultimedia Suite OEM)
    Bundled Software
    • AntiVirus Software (TrialVersion)
    OS Support
    • Windows XP and Above
    BIOS
    • 8 MB AMI Legal BIOS, Supports "Plug and Play", ACPI 1.1 Compliance Wake Up Events, Supports Jumperfree, SMBIOS 2.3.1 Support, CPU, VCCM, NB Voltage Multiadjustment
    Features
    • OC Tuner, Intelligent Energy Saver, Instant Boot, Instant Flash, OC DNA, APP Charger, Smart View, XFast USB, XFast LAN, Hybrid Booster, CPU Frequency Stepless Control, YCOP, Boot Failure Guard (B.F.G.)
    Advanced Technologies
    • Cool n Quiet Technology, Untied Overclocking Technology, Hyper-Transport 3.0 Technology
    Advanced Features
    • AMD OverDrive with ACC Feature (Advanced Clock Calibration)
    Warranty
    Domestic Term
    • 3 Years DIGILITE India Warranty and Free Transit Insurance.
    Warranty Summary
    • Customer Contacts helpdesk@digilite.co.in, Toll Free - 1800 209 3444 for Support
    Covered in Warranty
    • Manufacturing Defects are Covered
    Not Covered in Warranty
    • Forceful Tampering, Burnt, Mishandling and Physical Damage
    Warranty Service Type
    • Carry In
    Memory
    Number of Memory Slots
    • 2 Slots
    Memory Configuration
    • 8 DDR3 Dual Channel DIMM
    Memory Frequency
    • 1800(O.C) MHz, 1600(O.C) MHz, 1333 MHz, 1066 MHz, 800 MHz
    ECC Support
    • Non-ECC
    Buffered Memory
    • Unbuffered
    Limitations
    • Due to the Operating System Limitation, the Actual Memory Size may be Less than 4GB for the Reservation for System Usage Under Windows 32bit OS, For Windows 64bit OS with 64bit CPU, thereis No Such Limitation.
    Dimensions
    Dimensions
    • 183 x 243 mm
    Essentials
    Form Factor
    • Micro-ATX
    Socket Type
    • AM3+
    Compatible Processors
    • AM3 Processors: AMD Phenom II X6 Series Processor, AMD Phenom II X4 Series Processor, AMD Phenom II X3 Series Processor, AMD Phenom II X2 Series Processor(Except 920/ 940), AMD Athlon II X2 Series Processor, AMD Athlon II X3 Processor, AMD Athlon II X4 Series Processor, AMD Sempron Processor
    FSB
    • 2600 MHz
    Chipset
    • AMD 760G, AMD SB710
    Chipset Manufacturer
    • AMD
    Graphics
    Integrated Graphics card
    • Yes, AMD Radeon 3000
    Storage
    SATA 3 Gb/s
    • AMD SB710 Chipset
    RAID Controller
    • AMD SB710 Chipset
    RAID Configurations
    • 0, 1, 10, JBOD
    Expansion Slots
    PCI Slots
    • 2
    PCIe x1 Slots, Generation
    • 1, 2
    PCIe x16 Slots, Generation
    • 1, 2
    General
    Brand
    • DIGILITE
    Model ID
    • DL-960GM-GS3 FX
    Key Features
    • Micro-ATX Form Factor, AM3+ Socket Type, FSB 2600 MHz, AMD 760G, AMD SB710, RAID Controller: AMD SB710, 2 Memory Slots, Maximum 8 GB DDR3
    Connectivity
    Ethernet Controller
    • Realtek RTL8111E
    Ethernet Features
    • 10/100/1000 Mbps, Supports Wake-On-LAN, Supports PXE
    Number of Printer Ports
    • 1
    Number of Com Ports
    • 1
    Audio
    Audio Codec
    • Realtek ALC662
    Audio Channels
    • 5.1
    Audio Features
    • High Definition Audio
    Internal I/o Headers
    SATA 3 Gb/s Headers
    • 4
    USB 2.0 Headers
    • 2
    ATX Power Connectors
    • 1 (24 Pin ATX Power Connectors)
    Front Panel Headers
    • 1
    Other Connectors
    • 1 x ATA133 IDE Connector, 1 x Floppy Connector, CPU/Chassis/Power FAN Connector, 4 Pin 12 V Power Connector
