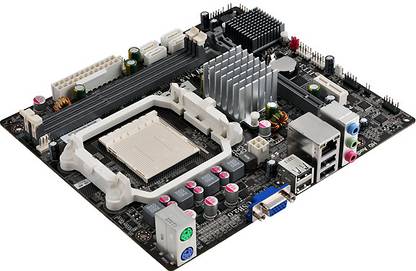

ECS A960M-MV (V1.0A) Motherboard

Price: Not Available

Currently Unavailable

Warranty

3 Years Domestic Carry In Warranty

Highlights

AMD 760G
Data Rate DDR3
Maximum RAM Capacity 16
Form Factor: Micro-ATX

Specifications

In The Box

Sales Package

Motherboard, 2 Sata Cable, Manual

General

Brand	ECS
Model ID	A960M-MV (V1.0A)

Essentials

Form Factor	Micro-ATX
Socket Type	AM3+
Compatible Processors	AMD Athlon II X4 Processor (Socket AM3), AMD Phenom II X4 Processor (Socket AM3), AMD Phenom II X2 Processor (Socket AM3), AMD Phenom II X6 Processor (Socket AM3), AMD Athlon II X2 Processor (Socket AM3), AMD Sempron X2 Processor (Socket AM3), AMD Athlon II X3 Processor (Socket AM3), AMD Phenom II X3 Processor (Socket AM3), AMD Athlon II Processor (Socket AM3), AMD Sempron Processor (Socket AM3), AMD FX Series Processor (Socket AM3+)
Chipset	AMD 760G, AMD SB710
Chipset Manufacturer	AMD

Memory

Number of Memory Slots	2 Slots
Memory Configuration	16 DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 1333 MHz, 1866(OC) MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

SATA 3 Gb/s	AMD SB710
RAID Controller	AMD SB710
RAID Configurations	0, 1, 10

Graphics

Integrated Graphics card	Yes
External Graphics Card Support	Yes

Audio

Audio Codec	Realtek ALC662
Audio Channels	6
Audio Features	HD Audio, Compatible with Direct Sound 3D, A3D, I3DL2, Voice Cancellation, Key Shifting in Karaoke Mode, Emulation of 26 Sound Environments, 6 Channel DAC Supports 16/20/24-bit PCM Format for 5.1 Channel Audio Solution, Meets Performance Requirements for Microsoft WLP 3.08 Vista Premium and Mobile PCs

Connectivity

Ethernet Controller	Realtek 8105E
Ethernet Features	10/100 Mbps, Wake-On-LAN

Expansion Slots

PCIe x1 Slots, Generation	1
PCIe x16 Slots, Generation	2, 1

Internal I/o Headers

SATA 3 Gb/s Headers	4
USB 2.0 Headers	2
ATX Power Connectors	1 (24 Pin ATX Power Connectors)
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	2
Other Connectors	1 x 4-pin 12 V Power Connector, 1 x CLR_CMOS Header, 1 x Speaker Header, 1 x Chassis Intrusion Header

Back Panel Ports

VGA/D Sub Ports	1
Audio I/O Channels	3
RJ-45 Ethernet Jacks	1
PS/2	2

General Features

Overclocking	Easy Over Clock Utility (eOC)
Bundled Software	ECS Intelligent EZ Utility: eBLU, eDLU, eOC, eSF
OS Support	7, Windows: XP, Vista, 8
BIOS	AMI BIOS with 16 MB SPI Flash ROM, ACPI and DMI, F7 Hot Key for Boot-up Devices Option, Plug and Play, STR (S3)/STD (S4), Hardware Monitor, Multi Boot, Multi-language BIOS, Audio and LAN can be Disabled in BIOS
Features	ErP/EuP Certification, Applied Solid Capacitor for CPU VRM, ROHS, ESD Protection Prevent Computers from Electrostatic Discharge Damage, AMD Radeon HD3000 Graphics, WHQL Certification, ECS GUI UEFI BIOS, Certifications: CE/FCC Certification, AHCI and Hot Plug Functions, Supports DirectX 10, Upto 95W Thermal Design Power Support, Supports NCQ
Advanced Technologies	ECS Durathon Technology, D-Sub Connection Technology, ECS MIB Technology
Advanced Features	AMD HyperTransport 3.0 CPU Interface, Supports AMD Cool n Quiet, Anti- Static Design (ESD Protection), eSF(ECS Smart Fan Utility), eBLU (ECS BIOS Live Update Utility)

Limitations

Due to the Operation System limitation the Actual Memory Size May be Less than 4 GB for the Reservation for System Usage Under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU there is no such Limitation, Due to AMD CPU Spec Limitation Please Refer to Memory QVL for More Information

Dimensions

180 x 210 mm

Warranty

Domestic Term	3 Years ECS India Warranty and Free Transit Insurance.
Warranty Summary	3 Years Domestic Carry In Warranty
Covered in Warranty	Burnt (Only IC), Rust, Manufacturing Defects
Not Covered in Warranty	Track, Sockets, Burnt, Forceful Tampering, Mishandling and Physical Damage
Warranty Service Type	Carry In

Ratings & Reviews

4.8

★

8 Ratings &

2 Reviews

5★
4★
3★
2★
1★

Best Buy for a BUDGET COMPUTER

IF you are looking to spend less on your motherboard and more on a graphics card,processor or a PSU , This is the best item for you ..
I bought it almost a Year AGO and TOUCHWOOD its working fine ..
my specs are :
8gb ddr3 ram
Amd phenom ii x4 955 be
Nvidia geforce gtx 650 ti 2gb ddr5
iball sprinter 450 watt

Pros :
1.Cheap .. by cheap i mean ULTRA CHEAP (+2)
2. Small in size which provide enough space to maintain ventilation inside your cabinet making airy and preventing it from heati...

Pranav Rawat

Oct, 2013

Permalink

Report Abuse

cool product

its a cool product support 8 core amd processor. compact size and otherwise its good.and dellivery was also witthin 1 day

JEFFREY DIAS

Certified Buyer

Jan, 2014

Permalink

Report Abuse
