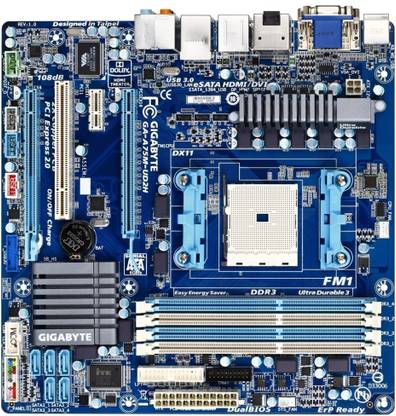

    Gigabyte GA-A75M-UD2H Motherboard

    Gigabyte GA-A75M-UD2H Motherboard

    Price: Not Available
    Currently Unavailable
    Warranty
    Please Contact 011-40525645 or Mail Us: support@amigointernational.biz in Case of Problems
    Highlights
    • AMD A75
    • Data Rate DDR3
    • Maximum RAM Capacity 64 GB
    • Form Factor: Micro-ATX
    Specifications
    In The Box
    Sales Package
    • Motherboard, Cable
    General
    Brand
    • GIGABYTE
    Model ID
    • GA-A75M-UD2H
    Essentials
    Form Factor
    • Micro-ATX
    Socket Type
    • FM1
    Compatible Processors
    • AMD A4 Processor, Athlon II X4 Processor, AMD A6 Processor, Athlon II X2 Processor, Sempron Processor, AMD A8 Processor, AMD E2 Processor
    Chipset
    • AMD A75
    Chipset Manufacturer
    • AMD
    Memory
    Number of Memory Slots
    • 4 Slots
    Memory Configuration
    • 64 GB DDR3 Dual Channel DIMM
    Memory Frequency
    • 1600 MHz, 2400(OC) MHz, 1333 MHz, 1066 MHz, 1866 MHz
    Storage
    RAID Configurations
    • 0, 1, 10, JBOD
    Graphics
    Integrated Graphics card
    • Yes
    External Graphics Card Support
    • Yes
    Audio
    Audio Codec
    • Realtek ALC889
    Audio Channels
    • 7.1
    Audio Features
    • HD Audio, Support for Dolby Home Theater, Support for S/PDIF Out
    Connectivity
    Ethernet Controller
    • Realtek RTL8111E
    Ethernet Features
    • 10/100/1000 Mbit
    IEEE 1394a FireWire Controller
    • VIA VT6308 Chipset
    Number of FireWire Ports
    • 2
    Expansion Slots
    PCI Slots
    • 1
    PCIe x1 Slots, Generation
    • 1, 2
    PCIe x16 Slots, Generation
    • 2
    Internal I/o Headers
    SATA 6 Gb/s Headers
    • 5
    USB 2.0 Headers
    • 2
    USB 3.0 Headers
    • 1
    ATX Power Connectors
    • 1 (24 Pin ATX Power Connectors)
    Fan Headers
    • 1 (Processor Fan Headers), 1 (System Fan Headers)
    Front Panel Headers
    • 2
    Other Connectors
    • 1 x Serial Port Header, 1 x Clearing CMOS Jumper, 1 x 4-pin ATX 12 V Power Connector, 1 x Power Fan Connector, 1 x S/PDIF Out Header, 1 x Parallel Port Header
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 4
    USB 3.0 Ports, Controller
    • 2
    eSATA Ports, Controller
    • 1
    HDMI Ports
    • 1
    DVI Ports
    • 1
    VGA/D Sub Ports
    • 1
    Audio I/O Channels
    • 6
    Optical S/PDIF Ports and S/PDIF Out ports
    • 1 (Optical S/PDIF Ports)
    RJ-45 Ethernet Jacks
    • 1
    PS/2
    • 1
    Other Ports
    • 1 x DVI-D Port, 1 x Display Port
    General Features
    Hardware Monitoring
    • System Voltage Detection, APU/System Temperature Detection, APU/System Fan Speed Detection, APU Overheating Warning, APU/System Fan Fail Warning, APU/System Fan Speed Control (Note 8)
    Bundled Software
    • Norton Internet Security (OEM version)
    OS Support
    • 8, Windows: XP, 7, Vista
    BIOS
    • 2 x 32 Mbit Flash, Use of Licensed AWARD BIOS, Support for DualBIOS, PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    Features
    • I/O Controller: iTE IT8720 Chip, PCI Express 2.0 Support, Integrated Display Port/HDMI/Dual-link DVI/D-sub Outputs for High Resolution up to 2560x1600 Full HD Playback, Supports HDCP, Supports DX11, Hi-def 108dB Signal-to-noise Ratio Blu-ray DVD Audio Playback, Patented DualBIOS with Hybrid EFI Technology for 3 TB HDD Support, Solid Capacitor Support
    Advanced Technologies
    • AMD Dual Graphics Technology Support, Ultra Durable 3 Classic Technology, Patented DualBIOS with Hybrid EFI Technology, Hybrid EFI Technology, On/Off Charge Technology, AutoGreen Technology
    Advanced Features
    • ErP Lot 6 Support, EasyTune6, AutoGreen- Greening Your PC Via Bluetooth Cellphone, Dolby Home Theater Support, HDMI Interface, Native 6 ports SATA3 Support by A75 Chipset, Native 4 ports USB 3.0 Support by A75 Chipset, 108 dB Signal-to-Noise ratio playback, Super Sound, Super Savings, On/Off Charge Technology, 3x USB Power Boost, Ultra Durable 3 Classic, 50,000 Hours Japanese Solid Capacitors, One Port One Fuse, DualBIOS 3 TB+ HDD Support (Hybrid EFI Technology), Super Safe, Dual Channel DDR3 2400+ MHz, Dual-link DVI port, AMD Fusion Graphics: Most Powerful Integrated Graphics Ever, AMD Dual Graphics: Unrivalled Upgradability
    Limitations
    • The Maximum 64 GB of System Memory Can be Supported Using 16 GB (or Above) Memory Modules, GIGABYTE will Update the Memory Support List on the Official Website When the Memory Modules are Available on the Market
    Dimensions
    Dimensions
    • 244 x 244 mm
    Warranty
    Domestic Term
    • 3 Years GIGABYTE India Warranty and Free Transit Insurance.
    Warranty Summary
    • Please Contact 011-40525645 or Mail Us: support@amigointernational.biz in Case of Problems
    Warranty Service Type
    • Carry In
