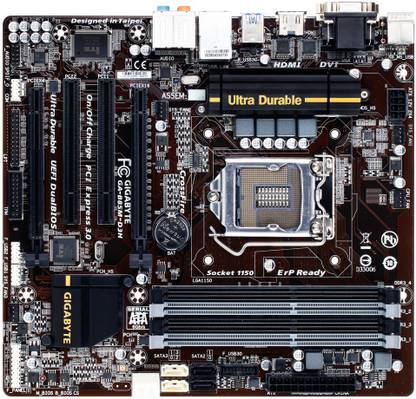

Gigabyte GA-B85-D3H Motherboard

Gigabyte GA-B85-D3H Motherboard

Price: Not Available
Currently Unavailable
Warranty
3 Years Gigabyte India Warranty and Free Transit Insurance
Highlights
  • Intel B85
  • Data Rate DDR3
  • Maximum RAM Capacity 32 GB
  • Form Factor: Micro-ATX
Specifications
In The Box
Sales Package
  • Motherboard, Installation Guide, CD, Shield
General
Brand
  • GIGABYTE
Model ID
  • GA-B85 M -D3H
Essentials
Form Factor
  • Micro-ATX
Socket Type
  • LGA 1150
Compatible Processors
  • Intel 4th Generation Core i3 Processor, Intel Celeron Processor, Intel 4th Generation Core i7 Processor, Intel Xeon Processor, Intel 4th Generation Core i5 Processor, Intel Pentium Processor
Chipset
  • Intel B85
Chipset Manufacturer
  • Intel
Memory
Number of Memory Slots
  • 4 Slots
Memory Configuration
  • 32 GB DDR3 Dual Channel DIMM
Memory Frequency
  • 1600 MHz, 1333 MHz
ECC Support
  • Non-ECC
Graphics
Integrated Graphics card
  • Yes
External Graphics Card Support
  • Yes
Multi GPU Support
  • Yes, AMD CrossFire Technology
Audio
Audio Codec
  • Realtek ALC892
Audio Channels
  • 7.1
Audio Features
  • HD Audio, Support for S/PDIF Out
Connectivity
Ethernet Features
  • Gigabit LAN 10/100/1000 Mb/s
Expansion Slots
PCI Slots
  • 2
PCIe x16 Slots, Generation
  • 1, 3
Internal I/o Headers
SATA 3 Gb/s Headers
  • 2
SATA 6 Gb/s Headers
  • 4
USB 2.0 Headers
  • 2
USB 3.0 Headers
  • 1
ATX Power Connectors
  • 1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers
  • 1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers
  • 2
Other Connectors
  • 1 x Serial Port Header, 1 x Clear CMOS Jumper, 1 x Parallel Port Header, 1 x S/PDIF Out Header
Back Panel Ports
USB 2.0 Ports, Controller
  • 4
USB 3.0 Ports, Controller
  • 2
HDMI Ports
  • 1
DVI Ports
  • 1
VGA/D Sub Ports
  • 1
Audio I/O Channels
  • 6
RJ-45 Ethernet Jacks
  • 1
PS/2
  • 1
General Features
Hardware Monitoring
  • CPU/System Fan Fail Warning, Fan Speed Detection, Fan Speed Control, Overheating Warning, System Voltage Detection, Temperature Detection
Bundled Software
  • Norton Internet Security (OEM Version)
OS Support
  • Windows: 7, 8
BIOS
  • 2 x 64 Mbit Flash, Support for DualBIOS, PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a, Use of Licensed AMI EFI BIOS
Features
  • iTE I/O Controller Chip
Advanced Technologies
  • Gigabyte Ultra Durable 4 Plus Technology, Intel Smart Connect Technology, Intel Rapid Start Technology
Advanced Features
  • Support for APP Center, USB Blocker, Support for Xpress Install, Support for EZ Setup, Support for Q-Flash, Supports EasyTune, Support for On/Off Charge, Gigabyte@BIOS
Limitations
  • Due to a Windows 32-bit Operating System Limitation, When More than 4 GB of Physical Memory is Installed, the Actual Memory Size Displayed will be Less than the Size of the Physical Memory Installed. The DVI-D Port Does not Support D-Sub Connection by Adapter, Support for HDMI 1.4a Version. To Configure 7.1-channel Audio, You Have to Use an HD Front Panel Audio Module and Enable the Multi-channel Audio Feature Through the Audio Driver, Whether the Fan Speed Control Function is Supported Will Depend on the Cooler You Install. Available applications in APP Center May Differ by Motherboard Model, Supported Functions of Each Application May also Differ Depending on Motherboard Specifications
Dimensions
Dimensions
  • 225 x 244 mm
Warranty
Domestic Term
  • 3 Years GIGABYTE India Warranty and Free Transit Insurance.
Warranty Summary
  • 3 Years Gigabyte India Warranty and Free Transit Insurance
Ratings & Reviews
4.4
85 Ratings &
19 Reviews
  • 5
  • 4
  • 3
  • 2
  • 1
  • 58
  • 16
  • 3
  • 2
  • 6
4

Good for Gmaing and Daily Use

I have bought this MOBO from flipkart in Jun.2014, since then I am using this MOBO, This is the class of art product from gigabyte and worth the money you will spent on it.
After using for 5 months I am writing this review.

Pros:
LGA 1150 Socket : Supports new Intel 4th gen Processors
Sata 3.0 : Supports Sata Drives with speed of 6.00GBps
DDR3 Memory Support upto 1600Mhz
AMD CrossFire for graphics
USB 3.0
HDMI Output
7.1 Channel Audio Output

Cons:
Not fount any till date

And all this you ...
READ MORE

Rohit Shinde

Certified Buyer, Pune

Oct, 2014

4
0
Report Abuse
5

Good Value for Money as a Hackintosh Board

I bought this board mainly as a backbone to my new DSDT-free Haswell Hackintosh build. The processor I got (i5-4460) wasn't pretty cheap, but this is the cheapest fully compatible board. Got everything working flawlessly including audio, speedstep and sleep. Very happy so far.
READ MORE

Rakshit Menpara

Certified Buyer, Rajkot

Jun, 2014

7
1
Report Abuse
5

superb MB, great perfomance

great motherboard, awesome performance so far, XP users dont buy it, coz it wont support.
it works great
READ MORE

shahul onenonly

Certified Buyer, Chennai

Jan, 2015

0
0
Report Abuse
5

Better than intel board

Am sure its better thaan intel mother board.

Everything was just coool and faster than other mother boards. Am using it along with Intel 3.2 GHz LGA 1150 4570 i5 4th Generation Processor
works like a charm.
READ MORE

Mâster Z?u?

Certified Buyer, Nagercoil

May, 2014

0
0
Report Abuse
5

Fast Delivery, Very good Seller

Worth buying from this seller, Very Good packaging, Fast shipment and received the item ( as mentioned in the page) on time . i recommend this seller.
READ MORE

Senthil Kumar

Certified Buyer, Chennai

Mar, 2014

0
1
Report Abuse
5

great qualtiy, go for it

product delivered in 3 days and packaging was good.
very happy with this motherboard, superb build quality.
very advanced and good mobo for daily general purpose use.
comes with hdmi port which is usefull
READ MORE

Karan Arora

Certified Buyer, Vadodara

Mar, 2014

0
0
Report Abuse
5

flipkart rocks, amazing product

hii this is my first purchase from flipkart and the item got delivered with in 3 to 5 days in to my location.and the packaging was also very good. this board is new generation of course and it has all my requirements. sata 3.0 four ports, usb 3.0, pci express 3.0 etc these are the few advantages. if you grab it you will see many others features. don't go for h87 or z87 if you are not overclocking it. i had paired with my i 5 4570 . and till now both are working fine and giving amazing perform...
READ MORE

hell is back

Certified Buyer, Korba

Oct, 2013

0
0
Report Abuse
5

The best mother board till date..

Guyzz am purchase this not from flipkart and believe me am a hardcore gamer daily i have run 10hr wid i5 4690 processor and 8gb corsair(1600) ram ,zotac 620 graphics..
believe its awesome no hit issue performance is unbeliavable..

Now playing :-

ARKHAM KNIGHT,
FARCRY4,
CALL OF DUTY GHOST.
CALL OF DUTY -MODERN WARFARE.
GTA-5,
GTA-4.

its a gaming monster dude blindly take this to home..no doubt..
READ MORE

Bimalendu Samanta

Jul, 2015

0
0
Report Abuse
5

Very stable motherboard with OC support

Excellent motherboard! Running 4690k on it with a slight overclock. Buy this motherboard if you are only going to overclock slightly and do not require power user features.
READ MORE

Jaikrishnan Janardhanan

Certified Buyer, Bangalore

Feb, 2015

0
0
Report Abuse
4

Good product

This is a good product from GIGABYTE. You will get many features at this price range. I didn't buy it from flipkart but it is very good LGA1150 motherboard.
READ MORE

Arghyadeep Medda

Jan, 2015

0
0
Report Abuse
+
