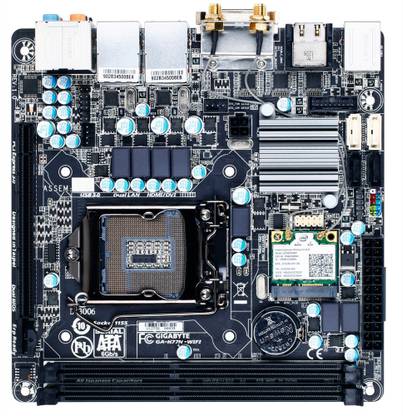

Gigabyte GA-H77N-WIFI Motherboard

Price: Not Available

Currently Unavailable

Warranty

3 Years Gigabyte India Warranty and Free Transit Insurance

Highlights

Intel H77
Data Rate DDR3
Maximum RAM Capacity 16
Form Factor: Mini-ITX

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	4
USB 3.0 Ports, Controller	2, Intel H77 Express
HDMI Ports	2
DVI Ports	1
Audio I/O Channels	5
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	2
PS/2	1
Other Ports	1 x DVI-I Port, 2 x Antenna Connectors

In The Box

Sales Package

Motherboard, Quick Guide, Antenna, Sata Cables and Rear I/O Panel Shield

General Features

Hardware Monitoring	System Voltage Detection, CPU/System Temperature Detection, CPU/System Fan Speed Detection, CPU Fan Speed Control
Bundled Software	Norton Internet Security (OEM Version), Intel Rapid Start Technology, Intel Smart Connect Technology, Intel Smart Response Technology
OS Support	Windows: XP, 7 and 8
BIOS	2 x 64 Mbit Flash, Use of Licensed AMI EFI BIOS, Support for DualBIOS, PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Features	iTE I/O Controller Chip, Dual Gigabit LAN with Teaming Function, High Temperature Protection, DVI-I port (Supporting a Maximum Resolution of 1920 x 1200), Power Failure Protection, Humidity Protection, Support for Extreme Memory Profile (XMP) Memory Modules, 2 x HDMI Ports (Supporting a Maximum Resolution of 1920 x 1200), Electrostatic Protection, Enhanced Built-in Visuals
Advanced Technologies	Intel Wi-Fi/WIDI Technology, Smart Ready Technology, Gigabyte UEFI DualBIOS Technology, 3D BIOS Technology, M.I.T Tuning Technology, Expansion Bus Technology, Intel Rapid Start Technology, Intel Smart Connect Technology, Intel Smart Response Technology, Gigabyte EZ Setup Technology, SuperSpeed USB 3.0 Technology, Gigabyte On/Off Charge Technology, Gigabyte Ultra Durable 4 Classic Technology
Advanced Features	Support for @BIOS, Support for Q-Flash, Support for Xpress Install, Support for EasyTune, Support for eXtreme Hard Drive (X.H.D), Support for Auto Green, Support for On/Off Charge, Support for Q-Share, Support for EZ Setup, Support for Intel Wireless Display (Intel WiDi), Exclusive Bluetooth 4.0/WiFi Module, ErP Lot 6 Support, 3x USB Power Boost Feature, 50000 hrs Japanese Solid Capacitors, DirectX 11 Support, Intel Quick Sync 2.0

Warranty

Domestic Term	3 Years GIGABYTE India Warranty and Free Transit Insurance.
Warranty Summary	3 Years Gigabyte India Warranty and Free Transit Insurance
Covered in Warranty	Manufacturing Defects
Not Covered in Warranty	Tampering, Physical Damages
Warranty Service Type	Carry In

Memory

Number of Memory Slots	2 Slots
Memory Configuration	16 DDR3 Dual Channel DIMM
Memory Frequency	1600 MHz, 800 MHz, 1333 MHz, 2200 (O.C) MHz, 1066 MHz
ECC Support	Non-ECC

Limitations

Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. To support DDR3 1600 MHz, you must install an Intel 22 nm (Ivy Bridge) CPU. Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility. When a RAID set is built across the SATA 6 Gb/s and SATA 3 Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected. Whether the CPU fan speed control function is supported will depend on the CPU cooler you install. Available functions in EasyTune may differ by motherboard model.

Dimensions

170 x 170 mm

Essentials

Form Factor	Mini-ITX
Socket Type	LGA 1155
Compatible Processors	Intel Core i5 Processor, Intel Xeon Processor, Intel Core i3 Processor, Intel Pentium Processor, Intel Celeron Processor, Intel Core i7 Processor
Chipset	Intel H77
Chipset Manufacturer	Intel

Graphics

Integrated Graphics card	Yes
External Graphics Card Support	Yes

Storage

SATA 3 Gb/s	Intel H77 Express
SATA 6 Gb/s	Intel H77 Express
RAID Controller	Intel H77 Express
RAID Configurations	0, 1, 5, 10

Expansion Slots

PCIe x16 Slots, Generation

3, 1

General

Brand	GIGABYTE
Model ID	GA-H77N-WIFI
Key Features	LGA 1155 Socket Type, Intel H77 Express, Raid Controller: Intel Z77 Express, Mini-ITX Form Factor, Maximum 16 GB DDR3, 2 Memory Slots, Dual Channel DIMM Memory

Connectivity

Ethernet Controller	Realtek Gigabit Ethernet
Ethernet Features	10/100/1000 Mbit
Wireless and Bluetooth	Wi-Fi 802.11 b/g/n, Supports Intel Wireless Display (WiDi) and Bluetooth v4.0, v3.0 + HS, v2.1 + EDR

Audio

Audio Codec	Realtek ALC892
Audio Channels	7.1
Audio Features	High Definition Audio

Internal I/o Headers

SATA 3 Gb/s Headers	2
SATA 6 Gb/s Headers	2
USB 2.0 Headers	2
USB 3.0 Headers	1
ATX Power Connectors	1 (24 Pin ATX Power Connectors)
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	2
Other Connectors	1 x S/PDIF Out Header, 1 x 4-pin ATX 12 V Power Connector, 1 x Serial Port Header, 1 x Clear CMOS Jumper

Ratings & Reviews

★

11 Ratings &

4 Reviews

5★
4★
3★
2★
1★

Overall Good Value for Money purchase

Purchased it during the August 2013 timeframe. It is a good value for money motherboard if you are building low power consuming system. Built an Mini ITX solution with it and has been performing well. The boot times in Windows is pretty awesome when used with SSD. FlipKart shipped it within reasonable timeframe. Also has the WIDI support and built-in Wireless along with two LAN connectors. Overall built quality is quite good.

Anthony Nishat

Certified Buyer, Hyderabad

Jan, 2014

Permalink

Report Abuse

Worth Money

Really good product with inbuilt wifi and Raid. Compact motherboard for small chassis.

Vaibhav Gupta

Certified Buyer, Bangalore

Sep, 2017

Permalink

Report Abuse

Consider buying GA Z87n wifi. This series (Z77) has become old.

Hey all, Socket 1150 or z77 was for 3rd Generation Intel processors. 4th generation has been out for about 1 year. So please refrain from buying this as its outdated product. I am building my own mini itx build and am searching for Gigabyte GA Z87n motherboard. I have already bought Intel i5-4670k. Weird thing is, even after 1 year of Haswell release(Z87) there is no mini itx motherboard in stock on any e-retailer. Please Flipkart, sell the newer version of this mobo. I will be the first cust...

Ayush Kumar

Apr, 2014

Permalink

Report Abuse

gigabyte ga-h77n-wifi

Best configration price range
but RAM slots 2 .
16gb supported.
wifi mean wireless but 2 antina bad look.

Rajnish Kumar

Apr, 2014

Permalink

Report Abuse
