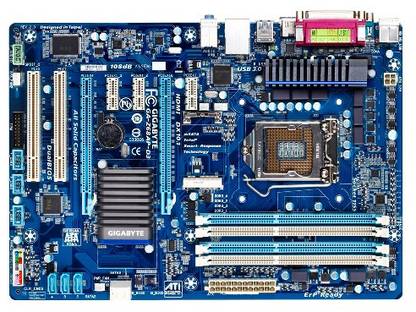

    GIGABYTE GA-Z68P-DS3 LGA 1155Socket ATX Intel Z68 Chipset DDR3 Motherboard

    GIGABYTE GA-Z68P-DS3 LGA 1155Socket ATX Intel Z68 Chipset DDR3 Motherboard

    Price: Not Available
    Currently Unavailable
    Highlights
    • Intel Z68
    • Data Rate DDR3
    • Maximum RAM Capacity 32
    • Form Factor: ATX
    Specifications
    In The Box
    Sales Package
    • 4 x SATA Cable
    General
    Brand
    • GIGABYTE
    Model ID
    • GA-Z68P-DS3
    Essentials
    Form Factor
    • ATX
    Socket Type
    • LGA 1155
    Compatible Processors
    • Intel Core i3 Processor, Intel Core i5 Processor, Intel Core i7 Processor, Intel Pentium Processor, Intel Celeron Processor
    Chipset
    • Intel Z68
    Chipset Manufacturer
    • Intel
    Memory
    Number of Memory Slots
    • 4 Slots
    Memory Configuration
    • 32 DDR3 Dual Channel DIMM
    Memory Frequency
    • 1066 MHz, 1333 MHz, 1600 MHz, 1866 MHz, 2133 MHz
    ECC Support
    • Non-ECC
    Storage
    SATA 3 Gb/s
    • Intel Z68 Express
    SATA 6 Gb/s
    • Intel Z68 Express
    RAID Controller
    • Intel Z68 Express
    RAID Configurations
    • 0, 1, 5, 10
    Graphics
    Integrated Graphics card
    • Yes
    Multi GPU Support
    • Yes, AMD CrossFireX
    Audio
    Audio Codec
    • Realtek ALC889
    Audio Channels
    • 7.1
    Audio Features
    • High Definition Audio
    Connectivity
    Ethernet Controller
    • Realtek RTL8111E
    Ethernet Features
    • 10/100/1000 Mbit
    Expansion Slots
    PCI Slots
    • 2
    PCIe x1 Slots, Generation
    • 3, 2
    PCIe x16 Slots, Generation
    • 2, 2
    Internal I/o Headers
    SATA 3 Gb/s Headers
    • 3
    SATA 6 Gb/s Headers
    • 2
    USB 2.0 Headers
    • 3
    ATX Power Connectors
    • 1 (24 Pin ATX Power Connectors)
    Fan Headers
    • 1 (Processor Fan Headers), 2 (System Fan Headers)
    Front Panel Headers
    • 2
    Other Connectors
    • 1 x 4-pin ATX 12V Power Connector, 1 x mSATA Connector, 1 x Power Fan Header, 1 x S/PDIF Out Header, 1 x Clearing CMOS Jumper
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 4
    USB 3.0 Ports, Controller
    • 2, Etron EJ168
    HDMI Ports
    • 1
    Audio I/O Channels
    • 3
    Optical S/PDIF Ports and S/PDIF Out ports
    • 1 (Optical S/PDIF Ports), 1 (S/PDIF Out Ports)
    RJ-45 Ethernet Jacks
    • 1
    PS/2
    • 1
    General Features
    Hardware Monitoring
    • System Voltage Detection, CPU/System Temperature Detection, CPU/System/Power Fan Speed Detection, CPU Overheating Warning, CPU/System/Power Fan Fail Warning, CPU/System Fan Speed Control
    Bundled Software
    • Norton Internet Security (OEM Version), Intel Smart Response Technology, LucidLogix Virtu
    BIOS
    • 2 x 32 Mbit Flash, Use of Licensed AWARD BIOS, Support for Dual BIOS, PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    Features
    • 32 Mb x 2 Flash ROM, Heat Sink for Main Chip, I/O Controller: iTE IT8728 Chip, HDMI Port Supporting a Maximum Resolution of 1920 x 1200
    Advanced Technologies
    • GIGABYTE EZ Smart Response, Built-in Visuals, GIGABYTE Touch BIOS, Dual BIOS 3 TB and HDD Support (Hybrid EFI Technology), 3x USB Power Boost, Turbo XHD- Full Automatic RAID 0, Multi-display Support with 2 way CrossFireX, Smart 6 Smarter PC system Management, Cloud OC, AutoGreen, ErP Lot 6 support
    Advanced Features
    • Support for Q-Flash, Support for Xpress BIOS Rescue, Support for Download Center, Support for Xpress Install, Support for Xpress Recovery2, Support for Easy Tune, Support for Dynamic Energy Saver 2, Support for Smart 6, Support for eXtreme Hard Drive (X.H.D), Support for ON/OFF Charge, Support for 3 TB and Unlock, Support for Q-Share
    Dimensions
    Dimensions
    • 305 x 216 mm
    Warranty
    Domestic Term
    • 3 Year GIGABYTE India Warranty and Free Transit Insurance.
    Warranty Service Type
    • Carry In
