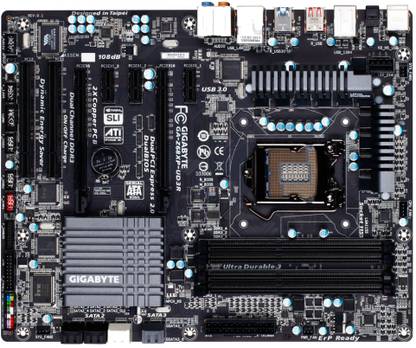

    GIGABYTE GA-Z68XP-UD3 LGA 1155Socket ATX Intel Z68 Chipset DDR3 Motherboard for Desktop

    GIGABYTE GA-Z68XP-UD3 LGA 1155Socket ATX Intel Z68 Chipset DDR3 Motherboard for Desktop

    Price: Not Available
    Currently Unavailable
    Highlights
    • Suitable For Desktop
    • Intel Z68
    • Data Rate DDR3
    • Maximum RAM Capacity 32
    • Form Factor: ATX
    Specifications
    General
    Brand
    • GIGABYTE
    Model ID
    • GA-Z68XP-UD3
    Essentials
    Form Factor
    • ATX
    Socket Type
    • LGA 1155
    Compatible Processors
    • Intel Core i7 Processor, Intel Core i5 Processor, Intel Core i3 Processor, Intel Pentium Processor, Intel Celeron Processor
    Chipset
    • Intel Z68
    Chipset Manufacturer
    • Intel
    Memory
    Number of Memory Slots
    • 4 Slots
    Memory Configuration
    • 32 DDR3 Dual Channel DIMM
    Memory Frequency
    • 1066 MHz, 1333 MHz, 1600 MHz, 1866 MHz, 2133 MHz
    ECC Support
    • Non-ECC
    Storage
    SATA 3 Gb/s
    • Intel Z68 Express Chipset
    SATA 6 Gb/s
    • Intel Z68 Express Chipset, Marvell 88SE9172 Chip
    RAID Controller
    • Intel Z68 Express Chipset, Marvell 88SE9172 Chip
    RAID Configurations
    • 0, 1, 5, 10
    Graphics
    Integrated Graphics card
    • Yes
    Multi GPU Support
    • Yes, AMD CrossFireX, NVIDIA SLI Technology
    Audio
    Audio Codec
    • Realtek ALC889
    Audio Channels
    • 7.1
    Audio Features
    • High Definition Audio, Support Dolby Home Theater
    Connectivity
    Ethernet Controller
    • Realtek RTL8111E
    Ethernet Features
    • 10/100/1000 Mbit
    IEEE 1394a FireWire Controller
    • VT6308
    Number of FireWire Ports
    • 1
    FireWire Specifications
    • 1 Port on Back Panel, 1 Port through Internal IEEE 1394a Header
    Expansion Slots
    PCI Slots
    • 2
    PCIe x1 Slots, Generation
    • 3, 2
    PCIe x16 Slots, Generation
    • 2, 2
    Internal I/o Headers
    SATA 3 Gb/s Headers
    • 4
    SATA 6 Gb/s Headers
    • 4
    USB 2.0 Headers
    • 3
    USB 3.0 Headers
    • 1
    ATX Power Connectors
    • 1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
    Fan Headers
    • 1 (Processor Fan Headers), 3 (System Fan Headers)
    Front Panel Headers
    • 2
    Other Connectors
    • 1 x S/PDIF Out Header, 1 x Serial Port Header, 1 x Clearing CMOS Jumper
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 8
    USB 3.0 Ports, Controller
    • 2, Etron EJ168
    HDMI Ports
    • 1
    IEEE 1394a Ports
    • 1
    Audio I/O Channels
    • 6
    Optical S/PDIF Ports and S/PDIF Out ports
    • 1 (Optical S/PDIF Ports)
    RJ-45 Ethernet Jacks
    • 1
    PS/2
    • 1
    General Features
    Hardware Monitoring
    • System Voltage Detection, CPU/System Temperature Detection, CPU/System/Power Fan Speed Detection, CPU Overheating Warning, CPU/System/Power Fan Fail Warning, CPU/System Fan Speed Control
    Bundled Software
    • Norton Internet Security (OEM version), Intel Smart Response Technology, LucidLogix Virtu
    OS Support
    • Windows XP and Above
    BIOS
    • 2 x 32 Mbit Flash, Use of Licensed AWARD BIOS, Support for DualBIOS, PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    Features
    • I/O Controller: iTE IT8728 Chip, Intel Quick Sync Video, Intel InTru 3D
    Advanced Technologies
    • Dual CPU Power Technology
    Advanced Features
    • Support for Q-Flash, Support for Xpress BIOS Rescue, Support for Download Center, Support for Xpress Install, Support for Xpress Recovery2, Support for EasyTune, Support for Dynamic Energy Saver, Support for Smart 6, Support for Auto Green, Support for eXtreme Hard Drive (X.H.D), Support for ON/OFF Charge, Support for Cloud OC, Support for 3TB+ Unlock, Support for TouchBIOS, Support for Q-Share, Revision: 1.0
    Dimensions
    Dimensions
    • 244 x 305 mm
    Warranty
    Domestic Term
    • 3 Years GIGABYTE India Warranty and Free Transit Insurance.
    Covered in Warranty
    • Manufacturing Defects are Covered
    Warranty Service Type
    • Carry In
