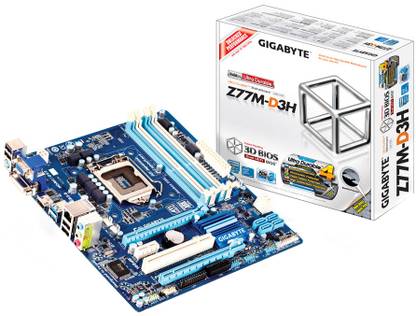

GIGABYTE GA-Z77M-D3H Motherboard

Price: Not Available

Currently Unavailable

Warranty

3 Year Domestic Warranty

Highlights

Intel Z77
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: Micro-ATX

Specifications

General

Brand	GIGABYTE
Model ID	GA-Z77M-D3H

Essentials

Form Factor	Micro-ATX
Socket Type	LGA 1155
Compatible Processors	Intel Core i5 Processor, Intel Pentium Processor, Intel Core i3 Processor, Intel Core i7 Processor, Intel Celeron Processor
Chipset	Intel Z77
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	2400(O.C) MHz, 1066 MHz, 1600 MHz, 1333 MHz
ECC Support	Non-ECC

Storage

SATA 3 Gb/s	Intel Z77 Express Chipset
SATA 6 Gb/s	Intel Z77 Chipset
RAID Configurations	0, 1, 5, 10

Graphics

Integrated Graphics card	Yes
Multi GPU Support	Yes, Support for AMD CrossFireX Technology

Audio

Audio Codec	VIA VT2021
Audio Channels	5.1
Audio Features	High Definition Audio

Connectivity

Ethernet Controller	Atheros GbE
Ethernet Features	10/100/1000 Mbit

Expansion Slots

PCI Slots	1
PCIe x1 Slots, Generation	1

Internal I/o Headers

SATA 3 Gb/s Headers	4
SATA 6 Gb/s Headers	2
USB 2.0 Headers	3
USB 3.0 Headers	1
ATX Power Connectors	1 (4 Pin EATX), 1 (24 Pin ATX Power Connectors)
Fan Headers	1 (Processor Fan Headers), 2 (System Fan Headers)
Front Panel Headers	2
Other Connectors	1 x Parallel Port, 1 x Clear CMOS Jumper, 1 x Serial Port Header, 1 x S/PDIF Out Header

Back Panel Ports

USB 2.0 Ports, Controller	4
USB 3.0 Ports, Controller	2
HDMI Ports	1
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	3
RJ-45 Ethernet Jacks	1
PS/2	1

General Features

Bundled Software	Norton Internet Security (OEM version)
OS Support	Windows XP and Above
BIOS	2 x 64 Mbit Flash, Use of Licensed AMI EFI BIOS, Support for DualBIOS, PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 1.0a
Features	Gigabyte 333 Onboard Acceleration, Gigabyte 3D BIOS, Gigabyte Ultra Durable 4 Classic, Gigabyte On/Off Charge, Gigabyte EZ Setup, Gigabyte EZ Smart Response
Advanced Technologies	Intel Rapid Start Technology, Intel Smart Connect Technology, Intel Smart Response Technology, Intel Quick Sync 2.0
Advanced Features	Support for BIOS, Support for Q-flash, Support for Xpress Install, Support for Xpress Recovery2, Support for eXtreme Hard Drive (X.H.D), Support for Auto Green, Support for ON/OFF Charge, Support for Q-share, Support for LAN Optimizer (Intelligent Optimization Network Management Tool)

Limitations

External Graphics Card Required (Not Included in the Box)

Dimensions

220 x 244 mm

Warranty

Domestic Term	3 Years GIGABYTE India Warranty and Free Transit Insurance.
Warranty Summary	3 Year Domestic Warranty

Ratings & Reviews

4.7

★

7 Ratings &

2 Reviews

5★
4★
3★
2★
1★

OK mobo. Limited options to OC

I bought the Z77M offline. I was actually looking for Z77MX, but couldn't find it anywhere. Overclocking (OC) is limited on this board, in the sense that voltage and clock can not be set independently - thus limiting one from reaching 100% OC capability.

Also, no chance for a SLI - since the 2nd PCIe goes to 4x. larger cards will also 'bump' against the front panel connectors right below the lower PCIe. So, you are effectively stuck with a single GPU config.

Aug, 2012

Permalink

Report Abuse

Champ!

Really Gud board for HD video editing. no problem. i have run with i5-3570k with 1 gb 9500 gt graphic card.

Gurniyamat Kaur

Nov, 2013

Permalink

Report Abuse
