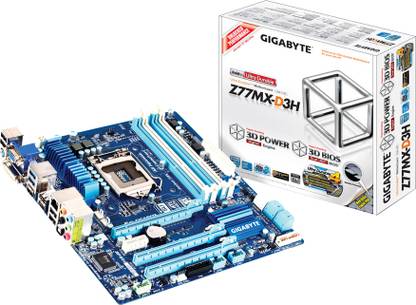

GIGABYTE GA-Z77MX-D3H LGA 1155Socket Micro-ATX Intel Z77 Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Warranty

3 Year Domestic Warranty

Highlights

Intel Z77
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: Micro-ATX

Specifications

In The Box

Sales Package

Motherboard, SATA Cables, Rear I/O Panel Shield and Supporting CD Software

General

Brand	GIGABYTE
Model ID	GA-Z77MX-D3H

Essentials

Form Factor	Micro-ATX
Socket Type	LGA 1155
Compatible Processors	Intel 3rd Generation Core i3 Processor, Intel 2nd Generation Core i7 Processor, Intel 2nd Generation Core i5 Processor, Intel 3rd Generation Core i5 Processor, Intel Pentium Processor, Intel Xeon Processor, Intel 3rd Generation Core i7 Processor, Intel 2nd Generation Core i3 Processor, Intel Celeron Processor
Chipset	Intel Z77
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 2400 (O.C) MHz, 1600 MHz, 1333 MHz
ECC Support	Non-ECC

Storage

SATA 6 Gb/s	Intel Z77 Express
RAID Controller	Intel Z77 Express
RAID Configurations	0, 1, 5, 10

Graphics

Integrated Graphics card	Yes
Multi GPU Support	Yes, AMD CrossFireX, NVIDIA SLI

Audio

Audio Codec	VIA VT2021
Audio Features	High Definition Audio

Connectivity

Ethernet Controller	Atheros GbE
Ethernet Features	10/100/1000 Mbit

Expansion Slots

PCIe x1 Slots, Generation	1, 2
PCIe x16 Slots, Generation	1

Internal I/o Headers

SATA 3 Gb/s Headers	4
SATA 6 Gb/s Headers	2
USB 2.0 Headers	2
USB 3.0 Headers	1
ATX Power Connectors	1 (24 Pin ATX Power Connectors)
Fan Headers	1 (Processor Fan Headers), 2 (System Fan Headers)
Front Panel Headers	2
Other Connectors	1 x Clear CMOS Jumper, 1 x S/PDIF Out Header, 1 x 4-pin ATX 12V Power Connector

Back Panel Ports

USB 2.0 Ports, Controller	6
USB 3.0 Ports, Controller	2
HDMI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	5
Optical S/PDIF Ports and S/PDIF Out ports	1 (S/PDIF Out Ports)
RJ-45 Ethernet Jacks	1
PS/2	1

General Features

Hardware Monitoring	System Voltage Detection, CPU / System Temperature Detection, CPU / System Fan Speed Detection, CPU Overheating Warning, CPU / System Fan Fail Warning, CPU / System Fan Speed Control
Bundled Software	Norton Internet Security (OEM version), Intel Rapid Start Technology, Intel Smart Connect Technology, Intel Smart Response Technology, LucidLogix Virtu MVP
OS Support	Windows XP and Above
BIOS	2 x 64 Mbit Flash, Use of Licensed AMI EFI BIOS, Support for DualBIOS, PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Features	iTE I/O Controller Chip
Advanced Technologies	UEFI DualBIOS Technology, Intel Rapid Start Technolog, Intel Smart Connect Technology, GIGABYTE On/Off Charge
Advanced Features	Support for BIOS, Support for Q-Flash, Support for Xpress Recovery2, Support for Xpress Install, Support for eXtreme Hard Drive (X.H.D), Support for Auto Green, Support for Q-Share, Support for 3D Power, Support for LAN Optimizer

Limitations

Due to Windows 32-bit Operating System Limitation, when more than 4 GB of Physical Memory is installed, the Actual Memory size Displayed will be less than 4 GB

Dimensions

244 x 244 mm

Warranty

Domestic Term	3 Years GIGABYTE India Warranty and Free Transit Insurance.
Warranty Summary	3 Year Domestic Warranty
Covered in Warranty	Manufacturing Defects are Covered
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Physical Damage
Warranty Service Type	Carry In

Ratings & Reviews

4.8

★

6 Ratings &

1 Reviews

5★
4★
3★
2★
1★

Good one, but 3D BIOS setup is not upto the mark

Yesterday I just brought this mother board. It is really good one. But as per my observation it's 3D BIOS setup menu not so impressive, but advance setup is much much better than 3D view.
Performance wise is it good. But I feeling that it takes time at the time of boot up.

I recommend it.

Aban Mitra

Certified Buyer

Sep, 2013
