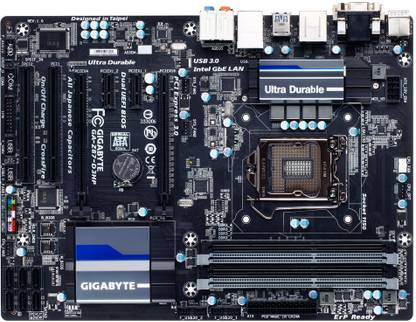

Gigabyte GA-Z87-D3HP Motherboard

Price: Not Available

Currently Unavailable

Warranty

Please Contact 011-40525645 or Mail Us: support@amigointernational.biz in Case of Problems

Highlights

Data Rate DDR3
Maximum RAM Capacity 32 GB
Form Factor: ATX

Specifications

In The Box

Sales Package

Motherboard, Catalogue, IO Shield, Driver CD, SATA Cable

General

Brand	GIGABYTE
Model ID	GA-Z87-D3HP

Essentials

Form Factor	ATX
Socket Type	LGA 1150
Compatible Processors	Intel 4th Generation Core i7 Processor, Intel 4th Generation Core i5 Processor, Intel Xeon Processor
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 GB DDR3 Dual Channel DIMM
Memory Frequency	2200(OC) MHz, 2400(OC) MHz, 1800(OC) MHz, 1600 MHz, 2000(OC) MHz, 2133(OC) MHz, 2800(OC) MHz, 2500(OC) MHz, 2600(OC) MHz, 2666(OC) MHz, 2933(OC) MHz, 1333 MHz, 1866(OC) MHz, 3000(OC) MHz
ECC Support	Non-ECC

Storage

RAID Configurations

0, 1, 5, 10

Graphics

Integrated Graphics card	Yes
External Graphics Card Support	Yes
Multi GPU Support	Yes, AMD CrossFire Technology

Audio

Audio Codec	Realtek ALC892
Audio Channels	7.1
Audio Features	HD Audio, Support for S/PDIF In, Support for S/PDIF Out

Connectivity

Ethernet Features

10/100/1000 Mbit

Expansion Slots

PCI Slots	2
PCIe x1 Slots, Generation	2, 2
PCIe x16 Slots, Generation	1, 3, 2

Internal I/o Headers

SATA 6 Gb/s Headers	6
USB 2.0 Headers	2
USB 3.0 Headers	2
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	1 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Front Panel Audio Header, 1 x Serial Port Header, 1 x CPU_OPT Fan Header, 1 x S/PDIF Out Header, 1 x Clear CMOS Jumper, 1 x S/PDIF In Header

Back Panel Ports

USB 2.0 Ports, Controller	2
USB 3.0 Ports, Controller	6
HDMI Ports	1
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	5
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	1

General Features

Hardware Monitoring	System Voltage Detection, CPU/System Temperature Detection, CPU/System Fan Speed Detection, CPU Overheating Warning, CPU/System Fan Fail Warning, CPU/System Fan Speed Control
Bundled Software	Norton Internet Security (OEM Version), cFosSpeed
OS Support	8, Windows: 7
BIOS	2 x 64 Mbit Flash, Use of Licensed AMI EFI BIOS, Support for DualBIOS, PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Features	iTE I/O Controller Chip, All Solid Capacitors, Support for Extreme Memory Profile (XMP) Memory Modules, Intel LAN with High ESD Protection, 15 Gold Plated CPU Socket, Supports CFOS Speed Internet Accelerator Software
Advanced Technologies	Intel Rapid Start Technology, Intel Smart Connect Technology, Intel Smart Response Technology, Gigabyte Ultra Durable 5 Plus Technology
Advanced Features	Support for Q-Flash, Support for Xpress Install, Support for APP Center, Easy Tune, EZ Setup, USB Blocker, Support for On/Off Charge

Limitations

Due to a Windows 32-bit Operating System Limitation, When more than 4 GB of Physical Memory is Installed, The Actual Memory Size Displayed will be less than the Size of the Physical Memory Installed, The DVI-D Port Does not Support D-Sub Connection by Adapter, Support for HDMI 1.4a Version, Whether the Fan Speed Control Function is Supported will Depend on the Cooler You Install, Available Applications in APP Center may Differ by Motherboard Model. Supported Functions of Each Application may also Differ Depending on Motherboard Specifications, Due to Different Linux Support Condition Provided by Chipset Vendors, Please Download Linux Driver from Chipset Vendors Website or 3rd Party Website, Most Hardware/Software Vendors may No Longer Offer Drivers to Support Win9X/ME/2000/XP, If Drivers are Available from the Vendors, We will Update them on the Gigabyte Website

Dimensions

224 x 305 mm

Warranty

Domestic Term	3 Years GIGABYTE India Warranty and Free Transit Insurance.
Warranty Summary	Please Contact 011-40525645 or Mail Us: support@amigointernational.biz in Case of Problems
Warranty Service Type	Carry In

Ratings & Reviews

4.4

★

11 Ratings &

5 Reviews

5★
4★
3★
2★
1★

Best motherboard for single gfx! got a problem in turbo settings..

Thanks to flipkart for their service and quality. Speaking of the product, it is simply cool for ultra gaming. I run an i5 4670k clocked at 4.2 ghz with cm hyper 212 evo and a sapphire dual-x r9 280x and this motherboard handles everything like a pie. This motherboard doesnt heat up too much while oc'ing and it provides stable and easy overclock. I found two cons in this motherboard.
The first one is that u can only have one graphics card. Although it has a second pci e slot, it runs on only...

Charan Jit

Certified Buyer, Tiruchirapalli

May, 2014

Permalink

Report Abuse

Hack Friendly, Super Cool

this one of the finest Motherboard to make Custom Mac Configuration in Z 87 Chipset. everything works out of the Box

Hemanth K

Mar, 2014

Permalink

Report Abuse

Best Motherboard

Gigabyte Is A Good Brand Over ASUS. Specially This Motherboard Is Best In Class. And Ashok Rana Please Check If Other Issues Is There. You Already Got A Masterpiece My Friend

Nirmalya Das

Feb, 2014

Permalink

Report Abuse

classic motherboard

best motherboard for gaming pc.
i brought it 2 day before and its very good.
i love it.
best best best

sumesh Kumar

Jan, 2014

Permalink

Report Abuse

bad board

i am using photoshope and full hang system onworking motherboard its to bad not a professional motherboard
