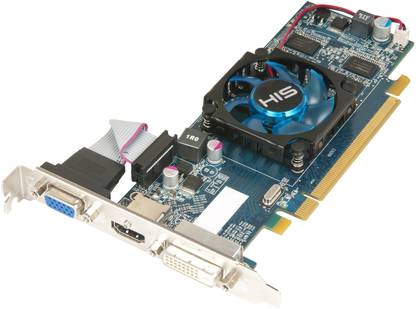

HIS Radeon HD 6570 DDR3 2 GB AMD/ATI Chipset 128 bit 650 MHz Graphics Card

Price: Not Available

Currently Unavailable

Highlights

650 MHzClock Speed
Chipset: AMD/ATI
BUS Standard: PCI Express 2.1
Graphics Engine: Radeon HD 6570 GPU
Memory Interface 128 bit

Important Note

The packaging of this product may vary from what is shown in the image.

Specifications

Technologies Supported

Graphics Technologies Supported	Microsoft DirectX v11, Open GL Optimization v4.1, AMD CrossFireX supported
3D Support	Yes support

Other Features

Additional Features

Dual Monitor, 7.1 Audio, Native HDMI, Open CL, 1080p Full HD, 3rd Generation TeraScale Engine, Accelerated Video Transcoding, Display Flexibility, Dolly TrueHD, DTS-HD Master Audio Support, Enhanced Unified Video Decoder (UVD) 3

Warranty

Domestic Term

3 Years

Memory

Memory	128-bit, 2 GB DDR3 Memory with 1000 MHz
Memory Bandwidth	28.8 GB/sec

System Requirements

Supported OS

Windows 7

Other System Requirements

PCI Express based PC is required with one X16 lane graphics slot available on the motherboard, 400 Watt or greater power supply recommended (500 Watt for AMD CrossFireX technology in dual mode), Minimum 1 GB of system memory, Installation software requires CD-ROM drive, DVD-ROM drive, DVD playback requires DVD drive, Blu-ray playback requires Blu-ray drive, The operation of AMD CrossFireX technology in dual mode requires a second AMD Radeon HD 6570 Graphics card and AMD CrossFireX Ready motherboard

General

Brand	HIS
Series	HD 6500
Graphics Engine	AMD/ATI Radeon HD 6570 GPU
GPU Clock	650 MHz
Shader	Shader Version 5
Processors and Cores	480 Stream Processor
GPU Manufacturing Process	40 nm
Bus Standard	PCI Express 2.1
Cooling and Heatsink	Heatsink
Model ID	Radeon HD 6570
Power Supply Required	400 W
DDR Memory Clock Speed	900 MHz
Key Features	650 MHz GPU Clock Speed, PCI-E 2.1 Bus Standard, Shader Version 5.0, 2 GB DDR3 Memory, AMD HD3D Technology, 2560 x 1600 Maximum Digital Resolution, AMD/ATI Radeon HD 6570 GPU

Connectivity

VGA/D-SUB Output	1xVGA DSub Output
DVI and HDMI Interface	1 x DVI Output Out, Yes x Dual Link DVI Out, 1 x HDMI Output Out
HD Content Support	HDTV Support

Display

Maximum Resolution

2560 x 1600 (Digital)

Ratings & Reviews

4.6

★

10 Ratings &

1 Reviews

5★
4★
3★
2★
1★

minimum graphic card for a gamer....

first i have got NVIDIA GEFORCE GT610 ..... and its tooo worse that i can't even play NFS 2013 in 800*600...too much lags....so i replaced that with ATI RADEON 2GB DDR3 ...this card was tooo awesome... now I can play nfs 2013 in 1600*900 resolution with ultra high settings with reflections and all other effects turned on...and AC:brotherhood was smooth in high settings.... I suggest better go for ATI RADEON 6570 2GB DDR3....rather than 1GB .....and finally dont go for NVIDIA cards..they cant ...
