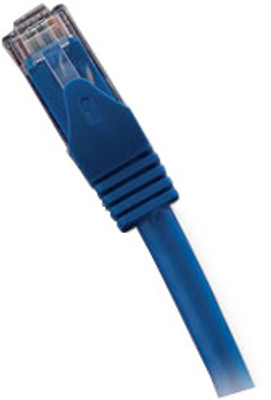

iBall Patch Data Cable 3.28 - Feet

★★★★★ ★★★★★
1
  • Patch Cable
  • Cat6 Cable,1000Mbps
  • 1 Meter Stranded Type
  • Snagless Cable

Warranty

Conditional Replacement Warranty See Details
Rs. 110
This item is Permanently discontinued. ?
Shipping to: Change
Validity Covers Type Accepted
10 days from delivery Damaged, Defective, Item not as described Replacement
If you have received a damaged or defective product or it is not as described, you can get a replacement within 10 days of delivery at no extra cost.


Read more Cancellations & Returns.
Validity Covers Type Accepted
30 days from delivery Damaged, Defective, Item not as described Replacement
If you have received a damaged or defective product or it is not as described, you can get a replacement within 30 days of delivery at no extra cost.


Read more Cancellations & Returns.
Validity Covers Type Accepted
10 days from delivery Exchange for colors and size, Does not fit Exchange
When does this policy not apply?

Read more Cancellations & Returns.
Validity Covers Type Accepted
30 days from delivery Exchange for colors and size, Does not fit Exchange
When does this policy not apply?

Read more Cancellations & Returns.

Key Features of iBall Patch Data Cable 3.28 - Feet

  • Patch Cable
  • Cat6 Cable with 1000 Mbps Speed
  • 1 Meter Stranded Type
  • Snagless Cable
  • Complies with ANSI EIA/TIA 568B.2.1, UL Listed ISO/IEC -11801, CE, FCC Standards

Specifications of iBall Patch Data Cable 3.28 - Feet

In The Box
Sales Package Cable
General
Type Patch Cable
Cable Type Cat6 1000 Mbps Speed
UTP/STP Unshielded Twisted Pair (UTP)
Connector Material 50 Micron Gold over Nickel Contacts
Cable 1 m Stranded Snagless
Prongs 3
Cable Frequency 250 MHz
Part Number iB-PPC6B1M
Brand iBall
Model Patch
Material
Conductor 7 mm Bare Copper 24AWG x 4pairs
Jacket 6.1 mm PVC Jacket
Jacket AVU Thickness 0.74 mm
Minimum Jacket Thickness 0.68 mm
Insulation 0.98 mm HDPE Insulation
Insulation AVU Thickness 0.195 mm
Minimum Insulation Thickness 0.175 mm
Other Materials Polycarbonate
Transmission Features
Rating Temperature 75 ° C
DC Resistance 9.4 ohm / 100M at 20 ° C
Dielectric Strength 0.75 kV
Spark test 2 kV
Nominal Impedance 100 ohms
Propagation Delay Skew 45 nS / 100M
Tensile Load
Sheath before Aging 1.14 kg/mm
Sheath after Aging 85 %
Insulation before Aging 1.68 kg/mm
Insulation after Aging 75 %
Additional Features
Compliance ANSI EIA/TIA 568B, UL Listed, ISO/IEC -11801, CE, FCC
Other Features Strain-relief Boot Design, Legule Technology, UTP Plug, 50% Elongation Sheath After Aging, 75% Elongation Insulation After Aging
Warranty
Warranty Summary Conditional Replacement Warranty
Warranty Service Type Carry In
Please note: All products sold on Flipkart are brand new and 100% genuine
     iBall Patch Data Cable 3.28 - Feet Price in India: Rs. 110
