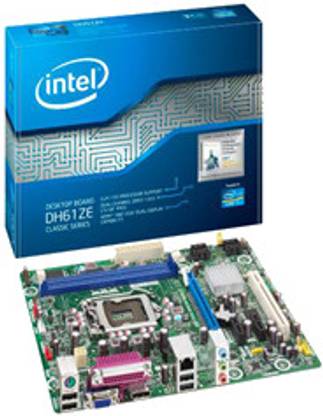

Intel DH61ZE LGA 1155Socket Micro-ATX Intel H61 Chipset DDR3 Motherboard for Desktop

Price: Not Available

Currently Unavailable

Warranty

Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com

Highlights

Suitable For Desktop
Intel H61
Data Rate DDR3
Maximum RAM Capacity 16 GB
Form Factor: Micro-ATX

Specifications

In The Box

Sales Package

Desktop Board, Quick Reference Guide, Configuration Label, Driver and Software CD, I/O Shield and SATA Cables

General

Brand	Intel
Model ID	DH61ZE

Essentials

Form Factor	Micro-ATX
Socket Type	LGA 1155
Compatible Processors	Intel Core i7, Intel Core i5, Intel Core i3, Intel Pentium
Chipset	Intel H61
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	2 Slots
Memory Configuration	16 GB DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 1333 MHz
ECC Support	Non-ECC
Buffered Memory	No

Storage

SATA 3 Gb/s

Intel H61 Express

Graphics

Integrated Graphics card	Intel HD Graphics
External Graphics Card Support	Yes

Audio

Audio Codec	Realtek ALC892
Audio Channels	6
Audio Features	Intel High Definition Audio

Connectivity

Ethernet Controller	Intel 82579V
Ethernet Features	10/100/1000 Mbits/s LAN Subsystem

Expansion Slots

PCI Slots	1
PCIe x1 Slots, Generation	2, 2
PCIe x16 Slots, Generation	1, 2

Internal I/o Headers

Fan Headers	1 (Processor Fan Headers), 2 (System Fan Headers)
Front Panel Headers	2
Other Connectors	Chassis Intrusion Header, S/PDIF Audio Header, Back Panel Connector, 12 V Internal Power Connector (ATX12V), Low Pin Count (LPC) Debug Header, Main Power Connector, SATA Connectors, Alternate Front Panel Power LED Header, Intel Management Engine BIOS Extension (Intel MEBX) Reset Header, Serial Port Header, Front Panel Audio Header

Back Panel Ports

USB 2.0 Ports, Controller	10
HDMI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	3
RJ-45 Ethernet Jacks	1
PS/2	1

General Features

Hardware Monitoring	Hardware Monitoring Through the Nuvoton Super I/O Controller, Voltage Sense to Detect out of Range Power Supply Voltages, Thermal Sense to Detect out of Range Thermal Values, Two Fan Sense Inputs Used to Monitor Fan Activity, Fan Speed Control
BIOS	Intel BIOS Resident in the SPI Flash Device, Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, SMBIOS
Features	ENERGY STAR 5.0, e-Standby, ErP Compliance
Advanced Technologies	ACPI Technology
Advanced Features	Fan Monitoring and Control, Thermal and Voltage Monitoring, Chassis Intrusion Detection

Dimensions

198.12 x 243.84 mm

Warranty

Domestic Term	3 Years Intel India Warranty and Free Transit Insurance.
Warranty Summary	Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com
Covered in Warranty	Manufacturing Defects / Dead on Arrival
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Physical Damage
Warranty Service Type	Carry In

Ratings & Reviews

3.8

★

4 Ratings &

1 Reviews

5★
4★
3★
2★
1★

Not worth

I am using this motherboard since 6 months. It is just a basic motherboard, giving 4800 bucks is too high for this, if u want compare this with gigabyte or asus motherboards features will b same but they will cost only around 3000-3500. If u are an intel fan just buy intel advanced motherboards which costs around 6500-8000k

Bhanu Kiran

Jun, 2013
