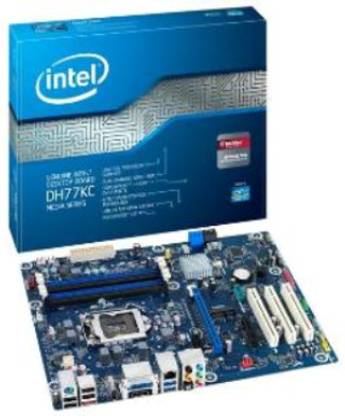

Intel DH77KC LGA 1155Socket ATX Intel H77 Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Warranty

Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com

Highlights

Intel H77
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: ATX

Specifications

General

Brand	Intel
Model ID	DH77KC

Essentials

Form Factor	ATX
Socket Type	LGA 1155
Compatible Processors	Intel 2nd Generation Core i7 Processors, Intel Core i7 Desktop Processor, Intel Core i5 Desktop Processor, Intel 2nd Generation Core i5 Processors, Intel Celeron Desktop Processor, Intel Xeon Processor, Intel 3rd Generation Core i7 Processors, Intel Core i3 Desktop Processor, Intel 3rd Generation Core i5 Processors, Intel Pentium Desktop Processor
Chipset	Intel H77
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 1600 MHz, 1333 MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

SATA 3 Gb/s	Intel H77 Express Chipset
SATA 6 Gb/s	Intel H77 Chipset
RAID Controller	Intel H77 Chipset
RAID Configurations	0, 1, 5, 10

Graphics

Integrated Graphics card	Intel HD Graphics
External Graphics Card Support	Yes

Audio

Audio Codec	Realtek ALC892
Audio Features	Intel High Definition Audio, Multi-streaming Capability, Microphone Acoustic Echo Cancellation (AEC), Noise Suppression (NS), BeamForming (BF) Technology

Connectivity

Ethernet Controller	Intel 82579V
Ethernet Features	10/100/1000 Mbits/sec LAN Subsystem

Expansion Slots

PCI Slots	3
PCIe x1 Slots, Generation	1, 2
PCIe x4 Slots, Generation	1, 2
PCIe x16 Slots, Generation	1, 3
Mini PCIe Slots	1

Internal I/o Headers

SATA 3 Gb/s Headers	3
SATA 6 Gb/s Headers	2
USB 2.0 Headers	4
USB 3.0 Headers	2
Fan Headers	1 (Processor Fan Headers), 2 (System Fan Headers)
Front Panel Headers	1
Other Connectors	Processor Core Power Connector (2 x 2), Serial Port Header, Parallel Port Header, Consumer IR Emitter (Output) Header, Front Panel Audio Header, Chassis Intrusion Header, Consumer IR Receiver (Input) Header, Low Pin Count (LPC) Debug Connector, Main Power Connector (2 x 12)

Back Panel Ports

USB 2.0 Ports, Controller	4
USB 3.0 Ports, Controller	2, Intel H77 Chipset
eSATA Ports, Controller	Intel H77 Chipset, 1
HDMI Ports	1
DVI Ports	1
Audio I/O Channels	5
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	1

General Features

Hardware Monitoring	Based on Nuvoton NCT6776D Device, Thermal and Voltage Monitoring, Chassis Intrusion Detection, SMBus Interface
OS Support	Windows: XP, 7
BIOS	Intel BIOS Resident in SPI Flash Device, Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, SMBIOS
Features	Dual Display Capable, Support for mSATA Solid-State Drive
Advanced Technologies	Intel HD Audio Technology, Intel Rapid Storage Technology, Intel Clear Video Technology, Intel Smart Response Technology

Dimensions

243.84 x 304.8 mm

Warranty

Domestic Term	3 Years Intel India Warranty and Free Transit Insurance.
Warranty Summary	Customer Contacts: 91 802 854 2105 or Email: sasupport@mailbox.intel.com
Covered in Warranty	Manufacturing Defects / Dead on Arrival
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Physical Damage
Warranty Service Type	Carry In
