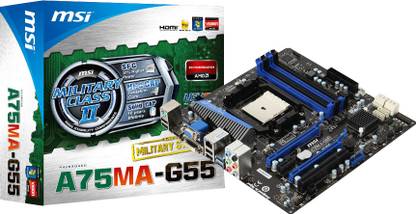

MSI A75MA-G55 FM1Socket Micro-ATX AMD A75 Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

3 Year Domestic WarrantyKnow More

Highlights

AMD A75
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: Micro-ATX

Specifications

General

Brand	MSI
Model ID	A75MA-G55

Essentials

Form Factor	Micro-ATX
Socket Type	FM1
Compatible Processors	AMD Llano APU
Chipset	AMD A75
Chipset Manufacturer	AMD

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	800 MHz, 1066 MHz, 1333 MHz, 1600 MHz, 1866(O.C) MHz
Buffered Memory	Unbuffered

Storage

SATA 6 Gb/s	AMD A75
RAID Controller	AMD A75
RAID Configurations	0, 1, 10

Graphics

External Graphics Card Support	Yes
Multi GPU Support	Yes, AMD Dual Graphics, AMD CrossFire

Audio

Audio Codec	Realtek ALC887
Audio Channels	8
Audio Features	With Jack Sensing, Compliant with Azalia 1.0 Spec

Connectivity

Ethernet Controller	Realtek 8111E
Ethernet Features	10/100/1000 Mbits/sec

Expansion Slots

PCI Slots	1
PCIe x1 Slots, Generation	1
PCIe x4 Slots, Generation	1, 2
PCIe x16 Slots, Generation	1, 2

Internal I/o Headers

SATA 6 Gb/s Headers	6
USB 2.0 Headers	2
USB 3.0 Headers	1
ATX Power Connectors	1 (24 Pin ATX Power Connectors)
Fan Headers	1 (Processor Fan Headers), 2 (System Fan Headers)
Front Panel Headers	1
Other Connectors	ATX 4-pin 12V CPU Power Connector, Front Panel Audio Connector, Serial Port Connector, Parallel Port Connector, Clear CMOS Jumper, Chassis Intrusion Connector

Back Panel Ports

USB 2.0 Ports, Controller	4
USB 3.0 Ports, Controller	2, AMD A75
HDMI Ports	1
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	6
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	1

General Features

Overclocking	OC Genie II - Auto Overclocking to Boost Performance in 1 Second, OC Genie Detect Hardware Configuration, Intelligently Auto Set Clock/Voltage of CPU and Memory or iGPU
Support CDs	Live Update 5, BIOS, Driver, VGA, Utility Update
OS Support	Windows: 98SE, ME, 2000, XP, Vista, 7
BIOS	ClickBIOS: Easy-to-use UEFI BIOS Interface
Features	Hi-c CAP, SFC (Super Ferrite Choke), Solid CAP, USB Safeguard, VGA Max Share Memory 2048 MB, 8 Mounting Holes
Advanced Technologies	AMD Cool'n'Quiet Technology, Independent Dynamic Core Technology, AMD CoolCore Technology
Advanced Features	DirectX 11, Military Class II (Certificated), M-Flash, Winki 3, i-Charger, Cool'n'Quiet

Dimensions

244 x 244 mm

Warranty

Domestic Term	3 Years MSI India Warranty and Free Transit Insurance.
Warranty Summary	3 Year Domestic Warranty

Ratings & Reviews

4.2

★

11 Ratings &

1 Reviews

5★
4★
3★
2★
1★

Low in Performance

As usual FlipKart deliver this product too fast.Thanks to flipkart for its best service.

This MB has poor quality in permanence.Previously i used Asus.
This MB Low GPU Mid End Game not run smoothly.
Pos : USB 3.0
Con : Price

Lalatendu Swain

Certified Buyer, Cuttack

Jul, 2013
