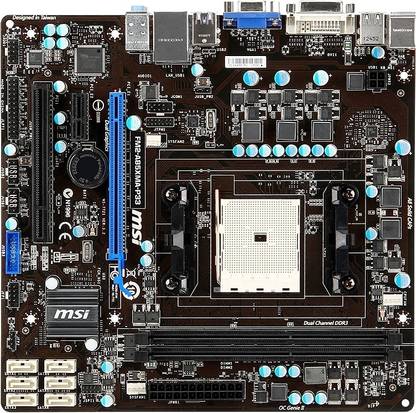

    MSI FM2-A85XMA-P33 Motherboard

    MSI FM2-A85XMA-P33 Motherboard

    Price: Not Available
    Currently Unavailable
    3 Years WarrantyKnow More
    Highlights
    • AMD A85X
    • Data Rate DDR3
    • Maximum RAM Capacity 16
    • Form Factor: Micro-ATX
    Specifications
    In The Box
    Sales Package
    • Motherboard, Installation Guide, CD, Shield
    General
    Brand
    • MSI
    Model ID
    • FM2-A85XMA-P33
    Essentials
    Form Factor
    • Micro-ATX
    Socket Type
    • FM2
    Compatible Processors
    • AMD A10, Athlonx4, AMD A8, AMD A6, AMD A4, Athlonx2
    Chipset
    • AMD A85X
    Chipset Manufacturer
    • AMD
    Memory
    Number of Memory Slots
    • 2 Slots
    Memory Configuration
    • 16 DDR3 Dual Channel DIMM
    Memory Frequency
    • 1600 MHz, 2133(OC) MHz, 1333 MHz, 1866 MHz, 1066 MHz
    Buffered Memory
    • Unbuffered
    Storage
    SATA 6 Gb/s
    • AMD A85X
    RAID Controller
    • AMD A85X
    RAID Configurations
    • 0, 1, 5, 10, JBOD
    Graphics
    External Graphics Card Support
    • Yes
    Audio
    Audio Codec
    • Realtek ALC887
    Audio Channels
    • 8
    Audio Features
    • Audio with Jack Sensing
    Connectivity
    Ethernet Controller
    • Realtek RTL8111E
    Ethernet Features
    • 10/100/1000 Mb/s, Compliance with PCI-Express Bus Specification v1.0a
    Expansion Slots
    PCI Slots
    • 1
    PCIe x1 Slots, Generation
    • 2, 1
    PCIe x16 Slots, Generation
    • 2, 1
    Internal I/o Headers
    SATA 6 Gb/s Headers
    • 6
    USB 2.0 Headers
    • 2
    USB 3.0 Headers
    • 1
    ATX Power Connectors
    • 1 (24 Pin ATX Power Connectors)
    Fan Headers
    • 1 (Processor Fan Headers), 2 (System Fan Headers)
    Front Panel Headers
    • 2
    Other Connectors
    • 1 x Serial Port Connector, 1 x USB Power Jumper, 1 x Parallel Connector, 1 x Chassis Intrusion Connector, 1 x Clear CMOS Jumper, 1 x ATX 4-pin 12V CPU Power Connector
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 4
    USB 3.0 Ports, Controller
    • 2
    DVI Ports
    • 1
    VGA/D Sub Ports
    • 1
    Audio I/O Channels
    • 3
    RJ-45 Ethernet Jacks
    • 1
    PS/2
    • 2
    General Features
    Support CDs
    • Drivers, Utilities
    OS Support
    • 7, Windows: XP, Vista, 8
    Features
    • Supports Dual-display Function (DVI+VGA), 6 Mounting Holes
    Advanced Technologies
    • Supports AMD's Cool 'n' Quiet Technology, AMD Turbo Core Technology, AMD Dual Graphics Technology, Independent Dynamic Core Technology
    Limitations
    • The Graphic Output can Only Work with CPUs with GPUs Core Inside
    Dimensions
    Dimensions
    • 216 x 226 mm
    Warranty
    Domestic Term
    • 3 Years MSI India Warranty and Free Transit Insurance.
    Warranty Summary
    • 3 Years Warranty
