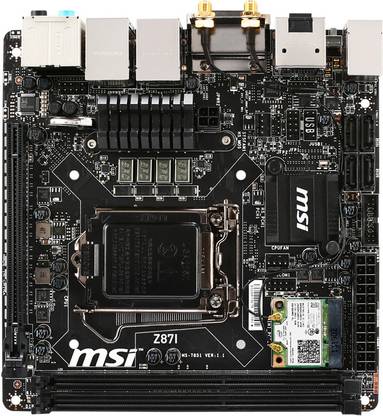

    MSI Z87I ACMotherboard

    MSI Z87I ACMotherboard

    Price: Not Available
    Currently Unavailable
    3 Years MSI India Warranty and Free Transit Insurance, Please Contact 011-41758808 Mail ID:rma@msi-in.comKnow More
    Highlights
    • Intel Z87
    • Data Rate DDR3
    • Maximum RAM Capacity 16
    • Form Factor: Mini-ITX
    Specifications
    In The Box
    Sales Package
    • Motherboard, 2 x SATA3 Cables, I/O Panel Shield
    General
    Brand
    • MSI
    Model ID
    • Z87I AC
    Essentials
    Form Factor
    • Mini-ITX
    Socket Type
    • LGA 1150
    Compatible Processors
    • Intel 4th Generation Core i3 Processor, Intel Celeron Processor, Intel 4th Generation Core i5 Processor, Intel 4th Generation Core i7 Processor, Intel Pentium Processor
    Chipset
    • Intel Z87
    Chipset Manufacturer
    • Intel
    Memory
    Number of Memory Slots
    • 2 Slots
    Memory Configuration
    • 16 DDR3 Dual Channel DIMM
    Memory Frequency
    • 1333 MHz, 1866 MHz, 800 MHz, 2133(O.C) MHz, 1600 MHz, 1066 MHz
    Buffered Memory
    • Unbuffered
    Storage
    SATA 6 Gb/s
    • Intel Z87
    RAID Controller
    • Intel Z87
    RAID Configurations
    • 0, 1, 5, 10
    Graphics
    Multi GPU Support
    • Yes
    Audio
    Audio Codec
    • Realtek ALC892
    Audio Channels
    • 7.1
    Connectivity
    Ethernet Controller
    • Realtek 8111G
    Ethernet Features
    • 10/100/1000
    Expansion Slots
    PCIe x16 Slots, Generation
    • 3, 1
    Internal I/o Headers
    USB 2.0 Headers
    • 1
    ATX Power Connectors
    • 1 (24 Pin ATX Power Connectors)
    Fan Headers
    • 1 (Processor Fan Headers), 1 (System Fan Headers)
    Front Panel Headers
    • 2
    Other Connectors
    • 1 x Half-size Mini-PCIe, 1 x 4-pin ATX 12 V Power Connector
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 2
    USB 3.0 Ports, Controller
    • 2
    Audio I/O Channels
    • 6
    Optical S/PDIF Ports and S/PDIF Out ports
    • 1 (Optical S/PDIF Ports)
    RJ-45 Ethernet Jacks
    • 2
    PS/2
    • 1
    General Features
    Overclocking
    • OC Genie 4: Overclock in 1 Second, Click BIOS 4: Easily Fine-tune Your System
    Support CDs
    • MSI Live Update 5, BIOS, Driver, VGA, Utility Update
    Features
    • Dimensions: 170 x 170 mm, 4 Mounting Holes
    Advanced Technologies
    • Military Class 4, Military Class Essentials, OC Genie 4
    Advanced Features
    • Support for OC Genie 4, Support for Click BIOS 4, Support for Command Center, Support for Fast Boot, Support for Super RAID, Support for M-flash, Support for Live Update 5
    Warranty
    Warranty Summary
    • 3 Years MSI India Warranty and Free Transit Insurance, Please Contact 011-41758808 Mail ID:rma@msi-in.com
    Covered in Warranty
    • Manufacturing Defects are Covered
    Not Covered in Warranty
    • Forceful Tampering, Burnt, Mishandling and Physical Damage
    Warranty Service Type
    • Carry In
