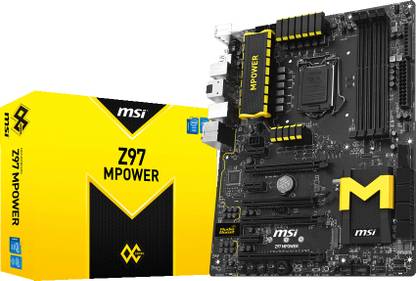

MSI Z97 MPower Motherboard

Price: Not Available

Currently Unavailable

3 Years MSI India Warranty and Free Transit Insurance.Know More

Highlights

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	4
USB 3.0 Ports, Controller	6
HDMI Ports	1
Audio I/O Channels	6
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	1
Other Ports	1 x Clear CMOS Button

In The Box

Sales Package

General Features

Overclocking	OC Genie 4: Overclock in 1 Second
Bundled Software	MSI Command Center, MSI Command Center Lite, RAM Disk
OS Support	Windows: 7, 8.1, 8
BIOS	Click BIOS 4: Easily Fine-tune Your System
Features	2560 x 1600 @ 60 Hz, 1920 x 1200 @ 60 Hz), 3840 x 2160 @ 60 Hz, 1 x Display Port (Supporting a Maximum Resolution of 4096 x 2304 @ 24 Hz, DirectX 11, 9 Mounting Holes, Dimensions: 305 x 244 mm
Advanced Technologies	Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology
Advanced Features	Military Class 4 Components, 12 Phase DigitALL Power Design, OC Certified: Military Class Burn-in Test Passed, Enhanced Thermal Design, OC Engine: For More Flexible BCLK Adjustments, V-Check Points 2: 3 Multi-meters at the Same Time, VGA Cease Fire: Easy to Disable the VGA Card, Guard-pro: Improved Protection and Power Efficiency, OC Essentials: The Most Convenient Tools While Breaking the Record

Warranty

Domestic Term	3 Years MSI India Warranty and Free Transit Insurance.
Warranty Summary	3 Years MSI India Warranty and Free Transit Insurance.

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	1866 MHz, 2400 MHz, 3000 MHz, 3100 MHz, 3300 (OC) MHz, 2666 MHz, 2600 MHz, 2800 MHz, 2000 MHz, 1600 MHz, 2200 MHz, 1066 MHz, 2133 MHz, 3200 MHz, 1333 MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Essentials

Form Factor	ATX
Socket Type	LGA 1150
Compatible Processors	Intel Pentium Processors, Intel Core i7 Processor, Intel Celeron Processors, Intel 5th Generation Core Processors, Intel 4th Generation Core Processors
FSB	100 MHz
Chipset	Intel Z97 Express
Chipset Manufacturer	Intel

Graphics

Multi GPU Support

Yes, Supports 3-way AMD CrossFire Technology, Supports 2-way NVIDIA SLI Technology

Storage

Expansion Slots

PCIe x1 Slots, Generation	2, 3
PCIe x16 Slots, Generation	2, 3

General

Brand	MSI
Model ID	Z97 MPower
Key Features	ATX Form Factor, LGA 1150 Socket Type, Maximum 32 GB DDR3, 4 Memory Slots, Dual Channel DIMM Memory, Intel Z97 Express Chipset, RAID Controller: Intel Z97 Express

Connectivity

Ethernet Controller	Intel I218-V Gigabit LAN
Ethernet Features	10/100/1000

Audio

Internal I/o Headers

SATA 6 Gb/s Headers	8
USB 2.0 Headers	2
USB 3.0 Headers	1
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	2 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Reset Button, 1 x 6-pin ATX 12 V Power Connector, 1x Power Button, 1 x 2-Digit Debug Code LED, 2 x Base Clock Control Buttons, 2 x System Panel Connectors, 1 x Multi-BIOS Switch, 9 x V-Check Connectors, 1 x Chassis Intrusion Connector, 1 x Slow Mode Switch, 1 x Clear CMOS Jumper, 1 x OC Genie Button, 1 x 4-pin ATX 12 V Power Connector, 1 x OC Genie Mode Switch, 1 x GO2BIOS Button
