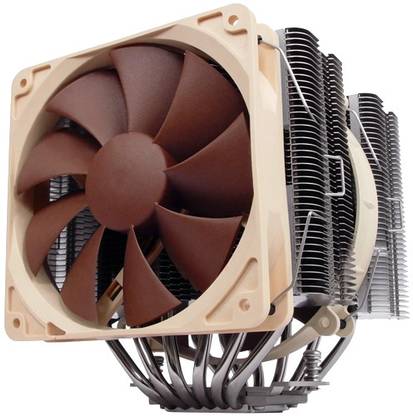

Noctua NH-D14

Price: Not Available

Currently Unavailable

Specifications

General

Brand	Noctua
Model ID	NH-D14
Cooler Type	Fan with Heat Sinks & Pipes, 140 mm
Compatible Socket	Intel LGA775, Asus X-socket, Intel LGA1366, LGA2011 (On Request), AMD AM3, AMD AM2, Intel LGA1156, AMD AM2, Intel LGA1155, AMD AM3, AMD FM1 (Backplate Required)
OEM Compatibility	Intel, AMD
Type	Processor

Material

Sink Material	Copper (Base and Heatpipes), Aluminium (Cooling Fins), Soldered Joints, Nickel Plating
Cooling Pipes	6 Pipes

Fan

Fan Speed	1200 RPM
Fan AirFlow	64.96 CFM
Air Pressure	1.29 mmH2O
Fan Bearing Type	SSO Bearing
Fan Speed Control	Ultra-Low-Noise Adaptor (U.L.N.A.)
Noise Level	19.6 dB

Power Specifications

Fan Rated Voltage

12 V

Other Features

Additional Features

Fan Compatibility (NF-P12): 120 x 120 x 25 mm, Fan Speed (NF-P12): 1300 RPM, Air Flow (NF-P12): 54.36 cfm, Noise Level (NF-P12): 19.8 dB(A), Air Pressure (NF-P12): 1.68 mmh2o, Y-split Cable, 4 x Vibration-compensators (for Using NF-P12 as Case Fan), 4 x Fan Screws (for Using NF-P12 as Case Fan), Noctua Metal Case-badge, Rotational Speed with U.L.N.A. ( 10 Percentage): 900 RPM (NF-P14) / 900 RPM (NF-P12), Airflow with U.L.N.A.: 49.29 cfm (NF-P14) / 37.34 cfm (NF-P12), Acoustical Noise with U.L.N.A.: 13.2 dB (NF-P14) / 12.6 dB (NF-P12), Static Pressure with U.L.N.A.: 0.77 mmh2o (NF-P14) / 1.21 mmh2o (NF-P12), Dimension (Without Fan): 160 x 140 x 130 mm, Dimension (With Fan): 160 x 140 x 158 mm, Weight: 1070 g (1240 g with 2 Fans), Input Power: 1.2 W (NF-P14) / 1.08 W (NF-P12), Input Current: 0.1 A (NF-P14) / 0.09 A (NF-P12), MTBF: 150000 hrs

Dimensions

Fan Dimensions

140 x 140 x 25 mm

Warranty

Warranty Type	Limited-Parts and Labour
Covered in Warranty	Manufacturing Defects are Covered
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Physical Damage
Domestic Term	6 Year

Ratings & Reviews

4.9

★

21 Ratings &

8 Reviews

5★
4★
3★
2★
1★

most badass cpu cooler!!!

best cooler. gives you better performace than any air cooling out there. a must buy product for ivy bridge. keeps ur cpu nice and cool.
just remember to apply rite amount of thermal grease on the center of the cpu and then place the heatsink for best performance.
:)

anmol sharma

Jul, 2012

Permalink

Report Abuse

best heat sink ever

this heat sink is most awesome heat sink till i know it can be cool like a liquid cooling cooler i have already bought the corsair h80 either i was going to buy this one i was looking for this but it was not available so if you looking for a heat sink go for it it worth the money. think about it

abhishek sahu

Apr, 2012

Permalink

Report Abuse

Very good indeed

I have installed this one (replacing the stock cooler AMD provides) on my FX 8350 processor, and ran a game which used to result in my CPU temperatures rising to around 65 deg C. post installation of this cooler, the max temperature reached was 49 deg C (both measured with HWmonitor), so I'm quite impressed.
I read many reviews saying this is a very big cooler, but nothing prepares you for the shock when you see it after excitedly unboxing it, especially if all you've seen till then were the ...

Aditya Karumanchi

Certified Buyer, Bangalore

Feb, 2014

Permalink

Report Abuse

Just wow!

how amazing is it that the simple concept of air cooling could be enhanced to a level unmatchable.

Divya parkash

Certified Buyer, Delhi

May, 2017

Permalink

Report Abuse

Excellent CPU cooler

previously with intel stock cooler, my i7-860 was running 46-48C idle and 97-99C @100% load which is very high..now idle tem is 28-30C and @100% load its 54-57C which is excellent..

People beware..Goto the product website and check for your RAM compatibility before buying product..some high profile ram sticks might come in way of the cooler..from the motherboard, you should have 16cm space till the door of your case..otherwise you cant close your cabinet..be careful..measure before you buy.....

Prahlad M S

Certified Buyer, Mysore

Jul, 2014

Permalink

Report Abuse

Heat Sink??? Only the best??? Look no further....

I can say and i mean it no one beats noctua in cooling solutions....
I have an i7 4770k and on overclocking it to 4.5 GHz I was getting temps of 70C...
Enters noctua and now temp hardly go above 50C and that is when I play Crysis 3 on max using gtx 770 in sli....that is no small feat....
Simply the best in that price range..
Believe me you will be happy...

MANAV RANA

Certified Buyer, Dehradun

May, 2014

Permalink

Report Abuse

awesome

THE BEST CPU AIR COOLER OUT ON THE MARKET. i prefer air coolers to water coolers and this big boy is quite and most effective. :), Do buy if u looking for keeping ur high end cpu temp down
cheers

Naveen Bali

Certified Buyer, Kanpur

Mar, 2014

Permalink

Report Abuse

Great performer

I have an FX 8350 w/ MSI 990FXA-GD65 and G-Skill RipJawsX 1600 Mhz 8GBx2 RAM. Installation was easy. Dropped my on-load temps from 74C to 51C and is almost inaudible running at full speed ~1250RPM. With the ULNA it's inaudible altogether since my GPU's TwinFrozrIII makes more noise at idle.

HOWEVER, on-load temps when my PC was upright were about 25C higher, i.e. 80C and would keep rising until my PC would shut-off automatically. I am running on firmware defaults for the CPU. I've tried ever...

Alini Cheng

Certified Buyer, Kolkata

Mar, 2014

Permalink

Report Abuse
