Q. What is the service type ?
A. Carry In
Q. What is the type of Warranty ?
A. No Damage Warranty, Manufactures Warranty Only on Technical
Q. What is covered in Warranty ?
|30 days from delivery||Damaged, Defective, Item not as described||Replacement|
|30 days from delivery||Exchange for colors and size, Does not fit||Exchange|
|10 days from delivery||Damaged, Item not as described||Replacement|
This mesh technology replaces the conventional compressor with 1000 to 7000 membranes of laser drilled holes located at the top of the medication cup or liquid reservoir. These membranes vibrate, therefore pressuring out fine mist-like droplets or aerosol that passes through the holes and enters your lungs with the process of inhalation. The pressure exerted by these vibrating membranes quickly aerosolizes the liquid solution, thereby ensuring shorter treatment times.

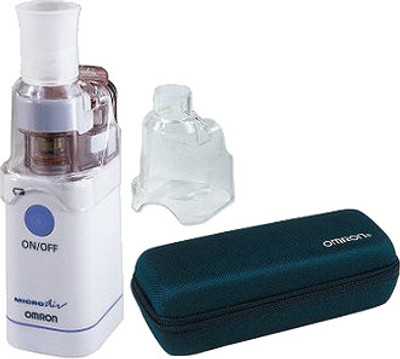

BodyThis Omron NE-U22 Nebulizer is very small and compact. The vibrating mesh technology in the nebulizer enables inhalation without the need for tubing, hence making the device small enough to fit inside your pocket. With this enhanced portability offered by Omron mesh nebulizer, you have the freedom of mobility and can take your medication wherever you go. Replicating the shape and size of a small bottle, the Omron mesh nebulizer houses a one touch control button on its body. Located at the head of the main unit is the medication cup and mouthpiece, which can be attached to the device.
The nebulizer cup or liquid reservoir is capable of holding 7 ml of the prescribed solution. The nebulizer is compliant with a wide variety of medication, hence offering remedy to severe and mild respiratory problems. The mesh technology allows for a very quiet operation which is virtually noiseless, therefore preventing noise pollution. This NE-U22 mesh nebulizer by Omron allows you to inhale from various angles, hence offering an effective intake of medication in accordance to your convenience and comfort. The mouthpiece is comfortable and allows you to synchronize breathing with the nebulization.
Performance and FeaturesUtilizing the vibrating mesh technology, the NE-U22 Omron mesh nebulizer can supply oxygen to your lungs at an average nebulization rate of 0.25 ml per min. The vibration applies pressure which operates at a rate of 700 hPa to 1060 hPa to convert the liquid medication to mist-like droplets. The mesh technology Omron NE-U22 nebulizer can produce fine droplets or particle size of 5 micrometer. The average distribution of aerosol mass, which is regulated with respect to aerodynamic diameter, is called Mass Median Aerodynamic Diameter (MMAD). The MMAD for the aerosol mass produced by this mesh nebulizer is 5 micrometer.
The Omron NE-C22 nebulizer operates at a temperature ranging from 10 to 40 degree Celsius with humidity ranging from 30 to 85% RH. You can store this nebulizer at a temperature ranging from 25 to 60 degree Celsius and humidity ranging from 10 to 95% RH. You have the flexibility of using battery or electricity to power this nebulizer. When you choose to use batteries, this nebulizer machine uses 2 AA batteries that functions up to 8 days with 30 minutes of usage. If you use electricity to operate this nebulizer, it consumes 1.5 W of electricity from a power supply of DC 3V, AC 120V or 60 Hz.
|In The Box|
|Sales Package||Mask and Mouthpiece Adapter, 2 Penlight Batteries Included, Main Unit, Carrying Case, Medication Bottle, Mouthpiece, Mesh Cap, Video and Instruction Manual|
|Height (cm)||10.4 cm|
|Width (cm)||3.8 cm|
|Depth (cm)||5.1 cm|
|Weight (gram)||97 g|
|Operating Air Flow Rate||700 hPa to 1060 hPa|
|Mmad (micro m)||3.4 to 6.0 µm|
|Medication Capacity (ml)||7 ml|
|Average Nebulization Rate (ml/min)||0.25 ml/min|
|Particle Size (micro m)||4.9 µm|
|Storage Humidity Range Max(%RH)||95 % RH|
|Operating Temperature Range Max(DegC)||40 °C|
|Storage Temperature Range Min(DegC)||-20 °C|
|Storage Temperature Range Max(DegC)||60 °C|
|Storage Humidity Range Min(%RH)||10 % RH|
|Operating Humidity Range Max(%RH)||85 % RH|
|Operating Humidity Range Min(%RH)||30 % RH|
|Operating Temperature Range Min(DegC)||10 °C|
|Power Required||DC 3 V AC 120 V 60 Hz|
|Power Source||Battery, Electricity|
|Power Consumption||1.5 W|
|1 Year Omron India Warranty and Free Transit Insurance.|
