| General | |
|---|---|
| Type | 3G Router |
| Installation Features | Resource CD |

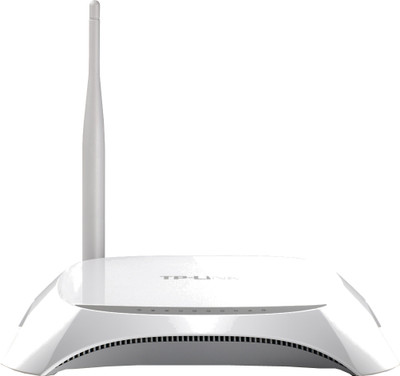

| Model | 3G/4G Wireless N Router |
| Part Number | TL-MR3220 |
| Variant | White |
| Controls | WPS / RESET BUTTON , WIRELESS ON/OFF BUTTON , POWER ON/ OFF BUTTON |
| In The Box | TL-MR3220 3G/4G Wireless N Router, QIG, Power Adapter, USB Cable, Resource CD, Ethernet Cable |
| LED Indicator | POWER, SYSTEM, WIRELESS, QSS, WAN, LAN, USB |
| Brand | TP-LINK |
| Operating Conditions | |
|---|---|
| Operating Humidity | Operating: 10 % - 90 % Non-condensing, Storage: 5 % - 90 % Non-condensing |
| Temperature | Operating: 0DegC - 40DegC, Storage: -40DegC - 70DegC |
| Power | |
|---|---|
| Power Supply | 9V DC , 0.85 A |
| System Requirements | |
|---|---|
| Operating System | Windows 98SE and Above, MAC OS, NetWare, UNIX, Linux |
| Supported Protocols | |
|---|---|
| Standard IEEE | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, 802.3u |
| Network Features | |
|---|---|
| Frequency | 2.4 - 2.4835 GHz |
| Speed | |
|---|---|
| Wireless Speed | 150 Mbps |
| LAN/WAN | 10/100 |
| Connectivity | |
|---|---|
| USB | USB 2.0 |
| Antennae | External |
| Number of LAN ports | 4 |
| Number of WAN ports | 1 |
| Number of USB Ports | 1 |
| WAN | RJ-45 |
| LAN | RJ-45 |
| Number of Antennae | 1 |
| Antennae Capacity | 5 dBI, Omni Directional, Detachable, Reverse SMA |
| Security | |
|---|---|
| Encryption | 152-bit WEP, 128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, TKIP, AES, ACL |
| Other Security Features | SYN Flooding, Ping of Death, DHCP Client, DHCP Server |
| Firewall | NAT Firewall, SPI Firewall, MAC Filtering, IP Filtering, Packet Filtering, Application Filtering, URL Filtering, DoS |
| Additional Features | |
|---|---|
| Other Features | Quality of Service: WMM, Auto-MDI/MDIX Support, Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 65-QAM |
| SSID Support | Yes |
| Certification | CE Certification, FCC Certification, RoHS Certification |
| VPN | PPTP, L2TP, IPSec |
| Dimensions | |
|---|---|
| Height | 30 mm |
| Width | 174 mm |
| Depth | 111 mm |
| Warranty | |
|---|---|
| Service Type | Carry In |
| Warranty Type | Repair and Replacement |
| Covered in Warranty | Manufacturing Defects |
| Domestic Term | 3 Years |
| Not Covered in Warranty | Physical Damages |
Customers Who Viewed This Product Also Viewed
Frequently Bought Together With This Product
Awesome Service ! A Well Deserved 5/5
Here are the list of compatible modems
*** Source - TP LINK WEBSITE ***
Reliance Netconnect E173 HUAWEI
Reliance Netconnect EC121 HUAWEI
Reliance Netconnect EC1260 HUAWEI
Reliance Netconnect EC1262 HUAWEI
Reliance Netconnect EC150 HUAWEI
Reliance Netconnect EC168C HUAWEI
Reliance Netconnect MMX 352G Micromax
Reliance Netconnect AC2726 ZTE
Reliance Netconnect AC2736 ZTE
Reliance Netconnect AC8710 ZTE
Reliance Netconnect MF190(On compatible list but no field test taken) ZTE
Reliance Netconnect MF668 ZTE
Tata Photons Epi Valley SEC-8089 Epi Valley
Tata Photons E1750(On compatible list but no field test taken) HUAWEI
Tata Photons EC121 HUAWEI
Tata Photons EC1260 HUAWEI
Tata Photons EC1261 HUAWEI
Tata Photons EC152 HUAWEI
Tata Photons Olive-V-ME101 Olive
Tata Photons Olive-V-ME150 Olive
Tata Photons AC8710 ZTE
MTS ADU-555C AnyDATA
MTS EC122 HUAWEI
MTS AC2726 ZTE
MTS AC2736 ZTE
MTS AC2746 ZTE
MTS AC2766 ZTE
BSNL EC200(Cannot dial) Capital
BSNL E156G HUAWEI
BSNL E173 HUAWEI
BSNL MMX 310G Micromax
BSNL AC8700 ZTE
BSNL MF626(On compatible list but no field test taken) ZTE
MTNL MMX 352G Micromax
IDEA E1550 HUAWEI
IDEA E1732 HUAWEI
Tata Docomo MF631 ZTE
Airtel E1550(On compatible list but no field test taken) HUAWEI
Airtel E1731 HUAWEI
This is to inform users of the Micromax MMX300c\310c CDMA datacards to stay away from this router as these data cards are not compatible with this router. The router keeps "identifying" the datacard, then displays "connecting" and never connects. After a while, the router resets the datacard and loops through the same process again. And the router takes ages to identify these cards. Upon contacting TP-Link support, I realized that they have the worst customer support in India as they hardly offered any support and told me to return the router. My router even had an issue with Wireless reception. It never offered range out of my room. I tried this router in the first floor of my house and m wireless devices kept losing range as soon as I moved out of the room. Even being in the room never gave me full bars of range. I've returned the router back to flipkart.
But for users of the above mentioned datacards who wish to route their BSNL EVDO connections, please stay away from this router or kindly invest in a more known brand like Huawei or ZTE, whose CDMA datacards are never offered unlocked in India.
First of all thank you flipkart for delivering this product in exact date. This is very useful product... I am using Micromax 300C Datacard & 352G datacard. I have ordered this product on risk repect of below described reviews...Micromax EVDO modem are working fine and well. Also it is not heated up. I am using this allmost 24X7 with Micromax 300C modem(with BSNL CDMA SIM), there is no issue at all. I am using with my PC, Laptop, my Galaxy S2 and my sister is also using with a laptop. One thing you need to do, you should upgrade firmware of this Router for supporting Micromax from TPlink official website. the link is given below
http://www.tp-link.com/Resources/software/TL-MR3220_v_2_120822.zip
then it will work fine with all USB Modem. But one thing its range is quite low. you can use within partial two rooms. I have set this on my ground floor and using from 1st floor that why my signal is showing too low like two bar in wifi. you connect 10 connect via wi-fi and 4 connection with LAN that mean total 14 connection at a time... and configuring this router is so easy. Overall the product is very good and useful in its price range.
Guys I have purchased this for my BSNL EVDO and Netconnect Plus 3G Reliance data card. Both of them works fine and is very easy to setup/install the data cards. It has a very good range also. Security features are also good.
There is only one problem I found is that it gets heated up very quickly within an hour or so. I have used many routers but this gets heated up pretty quickly.
Else this is a worth buying product. Those looking for data cards this is the best priced and equipped with great features.
I have bought this router from flipkart almost one month back. I was using this for that time and now I am reviewing.
Pros:-
1)Set up is a breeze...I am using TATA PHOTON PLUS(CDMA Mobile broadband) and Huawei unlocked E366 for Reliance 3G mobile Broacdband...at first I installed Photon and using the net is so cool...even when I tried to install Reliance 3G USB it installed automatically...
2)There is WPS function
3)Cheap
4) Descent speed, but...
5)Descent distance, but...
6)Wide range of dongle compatibiity
Cons:-
1)Don't expect very good coverage but it is satisfactory to some extent..but not an excellent mark..I think it would not be my first choice if I consider only wi-fi modem to use both 3G and ADSL turning WI-FI..
2)Though the speed is descent but the modem definitely downgrades the 3G dongle speed using as WI-FI, when the dongle is connected directly to my computer,it gives me more speed (by testing SPEEDTEST)..
Hello,
I bought this few months ago , here is my expereience
1.TPLink claims that it is compatiable with MTS...
I have an MTS ZTE AC2746. Out of the box, router setup didn't work. I had to download and install the latest firmware and then...
Read More
I bought this product specifically for making my Reliance 3G dongle into a Wifi connection. After I opened the box, it took me...
Read More
My USB modem is MTS Mblaze(AC2746). Initially it was not connecting with this modem, but after firmware upgrade was able to con...
Read More
I ordered this product and frankly speaking in terms of configuration of USB data card i am talking about USB data card specifi...
Read More
