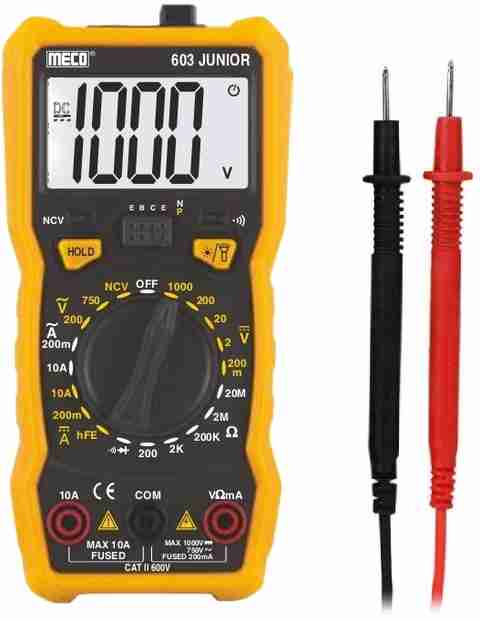

MECO-603 Junior 3½ Digits 2000 Counts Manual Ranging Digital Multimeter
Type
Digital
Display Type
LCD
Color
Yellow
Material
Plastic
Primary Functions
3½ Digits 2000 Counts Manual Ranging DC Voltage upto 1000V AC Voltage upto 750V DC Current upto 10A AC Current upto 10A Resistance upto 20M? Diode Test hFE Test (Transistor Test) Continuity Test (LED, Buzzer & EF Strength) NCV (LED, Buzzer & EF Strength) LCD with Backlight Data Hold Auto Power Off Holster with Magnet Torch Light Test Lead Gripper Low Battery Indication
Number of Counts
2000
All details
Features, description and more
Specifications
Manufacturer info
Show More
General
Brand
HTY
Model Number
MECO-603 Junior 3½ Digits 2000 Counts Manual Ranging Digital Multimeter
Type
Digital
Display Type
LCD
Color
Yellow
Material
Plastic
Primary Functions
3½ Digits 2000 Counts Manual Ranging DC Voltage upto 1000V AC Voltage upto 750V DC Current upto 10A AC Current upto 10A Resistance upto 20M? Diode Test hFE Test (Transistor Test) Continuity Test (LED, Buzzer & EF Strength) NCV (LED, Buzzer & EF Strength) LCD with Backlight Data Hold Auto Power Off Holster with Magnet Torch Light Test Lead Gripper Low Battery Indication
Number of Counts
2000
Model Name
MECO-603 Junior 3½ Digits 2000 Counts Manual Ranging Digital Multimeter
LED Indicators
Yes
Operating Temperature
(-) 40 ~ 1000 °C
Audible Continuity Test
Yes
Buttons
Hold / Light
Autoranging
Yes
Net Quantity
1
Additional Features
Other Features

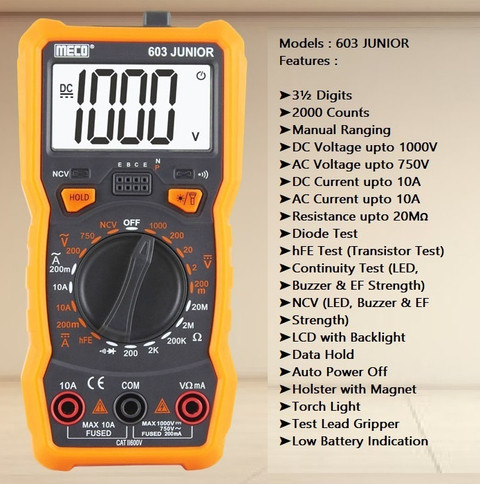

Models : 603 JUNIOR Features : 3½ Digits 2000 Counts Manual Ranging DC Voltage upto 1000V AC Voltage upto 750V DC Current upto 10A AC Current upto 10A Resistance upto 20M? Diode Test hFE Test (Transistor Test) Continuity Test (LED, Buzzer & EF Strength) NCV (LED, Buzzer & EF Strength) LCD with Backlight Data Hold Auto Power Off Holster with Magnet Torch Light Test Lead Gripper Low Battery Indication
Dimensions
Width
71 mm
Height
147 mm
Depth
45 mm
Weight
230 g
Other Dimensions
est Leads x 1 Pair 1.5V 'AAA' Battery x 3 Pcs Instruction Manual x 1 Pc Spare Fuse (0.2A/250V) x 2 Pcs Holster x 1 Pc
Functions
AC Current
200mA / 10A
DC Current
200mA / 10A
AC Voltage
200 / 750V
DC Voltage
200mV / 2 / 20 / 200 / 1000V
Resistance
200 ohm / 2 / 200K ohm / 2 / 20M ohm
Other Functions
One Pair of Test Leads, Spare Fuse (0.2A/250V) x 2, Holster, Battery (installed) & Instruction Manual
